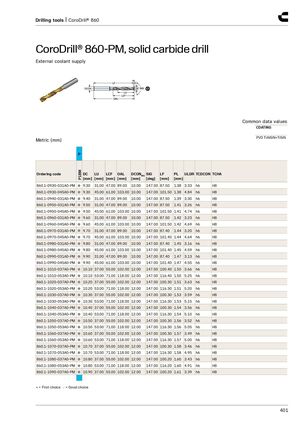

CoroDrill® 860-PM, твердосплавное сверло цельное
Наружная подача СОЖ
Общие данные
ПОКРЫТИЕ
PVD TiAlSiN+TiSiN
Метрическая система (мм)
P
P1BM
| Код заказа | DC [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | ULDR | TCDCON | TCHA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ● | 860.1-0930-031A0-PM | 9.30 | 31.00 | 47.00 | 89.00 | 10.00 | 147.00 | 87.50 | 1.38 | 3.33 | h6 | H8 |
| ● | 860.1-0930-045A0-PM | 9.30 | 45.00 | 61.00 | 103.00 | 10.00 | 147.00 | 101.50 | 1.38 | 4.84 | h6 | H8 |
| ● | 860.1-0940-031A0-PM | 9.40 | 31.00 | 47.00 | 89.00 | 10.00 | 147.00 | 87.50 | 1.39 | 3.30 | h6 | H8 |
| ● | 860.1-0950-031A0-PM | 9.50 | 31.00 | 47.00 | 89.00 | 10.00 | 147.00 | 87.50 | 1.41 | 3.26 | h6 | H8 |
| ● | 860.1-0950-045A0-PM | 9.50 | 45.00 | 61.00 | 103.00 | 10.00 | 147.00 | 101.50 | 1.41 | 4.74 | h6 | H8 |
| ● | 860.1-0960-031A0-PM | 9.60 | 31.00 | 47.00 | 89.00 | 10.00 | 147.00 | 87.50 | 1.42 | 3.23 | h6 | H8 |
| ● | 860.1-0960-045A0-PM | 9.60 | 45.00 | 61.00 | 103.00 | 10.00 | 147.00 | 101.50 | 1.42 | 4.69 | h6 | H8 |
| ● | 860.1-0970-031A0-PM | 9.70 | 31.00 | 47.00 | 89.00 | 10.00 | 147.00 | 87.40 | 1.44 | 3.20 | h6 | H8 |
| ● | 860.1-0970-045A0-PM | 9.70 | 45.00 | 61.00 | 103.00 | 10.00 | 147.00 | 101.40 | 1.44 | 4.64 | h6 | H8 |
| ● | 860.1-0980-031A0-PM | 9.80 | 31.00 | 47.00 | 89.00 | 10.00 | 147.00 | 87.40 | 1.45 | 3.16 | h6 | H8 |
| ● | 860.1-0980-045A0-PM | 9.80 | 45.00 | 61.00 | 103.00 | 10.00 | 147.00 | 101.40 | 1.45 | 4.59 | h6 | H8 |
| ● | 860.1-0990-031A0-PM | 9.90 | 31.00 | 47.00 | 89.00 | 10.00 | 147.00 | 87.40 | 1.47 | 3.13 | h6 | H8 |
| ● | 860.1-0990-045A0-PM | 9.90 | 45.00 | 61.00 | 103.00 | 10.00 | 147.00 | 101.40 | 1.47 | 4.55 | h6 | H8 |
| ● | 860.1-1010-037A0-PM | 10.10 | 37.00 | 55.00 | 102.00 | 12.00 | 147.00 | 100.40 | 1.50 | 3.66 | h6 | H8 |
| ● | 860.1-1010-053A0-PM | 10.10 | 53.00 | 71.00 | 118.00 | 12.00 | 147.00 | 116.40 | 1.50 | 5.25 | h6 | H8 |
| ● | 860.1-1020-037A0-PM | 10.20 | 37.00 | 55.00 | 102.00 | 12.00 | 147.00 | 100.30 | 1.51 | 3.63 | h6 | H8 |
| ● | 860.1-1020-053A0-PM | 10.20 | 53.00 | 71.00 | 118.00 | 12.00 | 147.00 | 116.30 | 1.51 | 5.20 | h6 | H8 |
| ● | 860.1-1030-037A0-PM | 10.30 | 37.00 | 55.00 | 102.00 | 12.00 | 147.00 | 100.30 | 1.53 | 3.59 | h6 | H8 |
| ● | 860.1-1030-053A0-PM | 10.30 | 53.00 | 71.00 | 118.00 | 12.00 | 147.00 | 116.30 | 1.53 | 5.15 | h6 | H8 |
| ● | 860.1-1040-037A0-PM | 10.40 | 37.00 | 55.00 | 102.00 | 12.00 | 147.00 | 100.30 | 1.54 | 3.56 | h6 | H8 |
| ● | 860.1-1040-053A0-PM | 10.40 | 53.00 | 71.00 | 118.00 | 12.00 | 147.00 | 116.30 | 1.54 | 5.10 | h6 | H8 |
| ● | 860.1-1050-037A0-PM | 10.50 | 37.00 | 55.00 | 102.00 | 12.00 | 147.00 | 100.30 | 1.56 | 3.52 | h6 | H8 |
| ● | 860.1-1050-053A0-PM | 10.50 | 53.00 | 71.00 | 118.00 | 12.00 | 147.00 | 116.30 | 1.56 | 5.05 | h6 | H8 |
| ● | 860.1-1060-037A0-PM | 10.60 | 37.00 | 55.00 | 102.00 | 12.00 | 147.00 | 100.30 | 1.57 | 3.49 | h6 | H8 |
| ● | 860.1-1060-053A0-PM | 10.60 | 53.00 | 71.00 | 118.00 | 12.00 | 147.00 | 116.30 | 1.57 | 5.00 | h6 | H8 |
| ● | 860.1-1070-037A0-PM | 10.70 | 37.00 | 55.00 | 102.00 | 12.00 | 147.00 | 100.30 | 1.58 | 3.46 | h6 | H8 |
| ● | 860.1-1070-053A0-PM | 10.70 | 53.00 | 71.00 | 118.00 | 12.00 | 147.00 | 116.30 | 1.58 | 4.95 | h6 | H8 |
| ● | 860.1-1080-037A0-PM | 10.80 | 37.00 | 55.00 | 102.00 | 12.00 | 147.00 | 100.20 | 1.60 | 3.43 | h6 | H8 |
| ● | 860.1-1080-053A0-PM | 10.80 | 53.00 | 71.00 | 118.00 | 12.00 | 147.00 | 116.20 | 1.60 | 4.91 | h6 | H8 |
| ● | 860.1-1090-037A0-PM | 10.90 | 37.00 | 55.00 | 102.00 | 12.00 | 147.00 | 100.20 | 1.61 | 3.39 | h6 | H8 |
● = Первый выбор ○ = Хороший выбор
