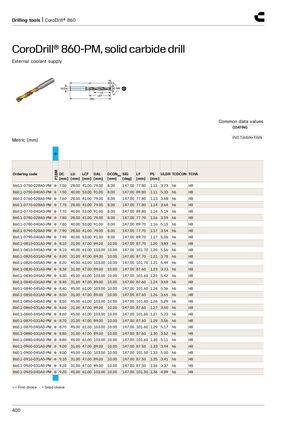

CoroDrill® 860-PM, сверло из твёрдого сплава
Внешняя подача СОЖ
Общие данные
Покрытие: PVD TiAlSiN+TiSiN
Метрическая система (мм)
Область применения: P, P1BM
| Артикул | Выбор | DC [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | ULDR [мм] | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 860.1-0750-028A0-PM | ● | 7.50 | 28.00 | 41.00 | 79.00 | 8.00 | 147.00 | 77.80 | 1.11 | 3.73 | h6 | H8 |
| 860.1-0750-040A0-PM | ● | 7.50 | 40.00 | 53.00 | 91.00 | 8.00 | 147.00 | 89.80 | 1.11 | 5.33 | h6 | H8 |
| 860.1-0760-028A0-PM | ● | 7.60 | 28.00 | 41.00 | 79.00 | 8.00 | 147.00 | 77.80 | 1.13 | 3.68 | h6 | H8 |
| 860.1-0770-028A0-PM | ● | 7.70 | 28.00 | 41.00 | 79.00 | 8.00 | 147.00 | 77.80 | 1.14 | 3.64 | h6 | H8 |
| 860.1-0770-040A0-PM | ● | 7.70 | 40.00 | 53.00 | 91.00 | 8.00 | 147.00 | 89.80 | 1.14 | 5.19 | h6 | H8 |
| 860.1-0780-028A0-PM | ● | 7.80 | 28.00 | 41.00 | 79.00 | 8.00 | 147.00 | 77.70 | 1.16 | 3.59 | h6 | H8 |
| 860.1-0780-040A0-PM | ● | 7.80 | 40.00 | 53.00 | 91.00 | 8.00 | 147.00 | 89.70 | 1.16 | 5.13 | h6 | H8 |
| 860.1-0790-028A0-PM | ● | 7.90 | 28.00 | 41.00 | 79.00 | 8.00 | 147.00 | 77.70 | 1.17 | 3.54 | h6 | H8 |
| 860.1-0790-040A0-PM | ● | 7.90 | 40.00 | 53.00 | 91.00 | 8.00 | 147.00 | 89.70 | 1.17 | 5.06 | h6 | H8 |
| 860.1-0810-031A0-PM | ● | 8.10 | 31.00 | 47.00 | 89.00 | 10.00 | 147.00 | 87.70 | 1.20 | 3.83 | h6 | H8 |
| 860.1-0810-045A0-PM | ● | 8.10 | 45.00 | 61.00 | 103.00 | 10.00 | 147.00 | 101.70 | 1.20 | 5.56 | h6 | H8 |
| 860.1-0820-031A0-PM | ● | 8.20 | 31.00 | 47.00 | 89.00 | 10.00 | 147.00 | 87.70 | 1.21 | 3.78 | h6 | H8 |
| 860.1-0820-045A0-PM | ● | 8.20 | 45.00 | 61.00 | 103.00 | 10.00 | 147.00 | 101.70 | 1.21 | 5.49 | h6 | H8 |
| 860.1-0830-031A0-PM | ● | 8.30 | 31.00 | 47.00 | 89.00 | 10.00 | 147.00 | 87.60 | 1.23 | 3.73 | h6 | H8 |
| 860.1-0830-045A0-PM | ● | 8.30 | 45.00 | 61.00 | 103.00 | 10.00 | 147.00 | 101.60 | 1.23 | 5.42 | h6 | H8 |
| 860.1-0840-031A0-PM | ● | 8.40 | 31.00 | 47.00 | 89.00 | 10.00 | 147.00 | 87.60 | 1.24 | 3.69 | h6 | H8 |
| 860.1-0840-045A0-PM | ● | 8.40 | 45.00 | 61.00 | 103.00 | 10.00 | 147.00 | 101.60 | 1.24 | 5.36 | h6 | H8 |
| 860.1-0850-031A0-PM | ● | 8.50 | 31.00 | 47.00 | 89.00 | 10.00 | 147.00 | 87.60 | 1.26 | 3.65 | h6 | H8 |
| 860.1-0850-045A0-PM | ● | 8.50 | 45.00 | 61.00 | 103.00 | 10.00 | 147.00 | 101.60 | 1.26 | 5.29 | h6 | H8 |
| 860.1-0860-031A0-PM | ● | 8.60 | 31.00 | 47.00 | 89.00 | 10.00 | 147.00 | 87.60 | 1.27 | 3.60 | h6 | H8 |
| 860.1-0860-045A0-PM | ● | 8.60 | 45.00 | 61.00 | 103.00 | 10.00 | 147.00 | 101.60 | 1.27 | 5.23 | h6 | H8 |
| 860.1-0870-031A0-PM | ● | 8.70 | 31.00 | 47.00 | 89.00 | 10.00 | 147.00 | 87.60 | 1.29 | 3.56 | h6 | H8 |
| 860.1-0870-045A0-PM | ● | 8.70 | 45.00 | 61.00 | 103.00 | 10.00 | 147.00 | 101.60 | 1.29 | 5.17 | h6 | H8 |
| 860.1-0880-031A0-PM | ● | 8.80 | 31.00 | 47.00 | 89.00 | 10.00 | 147.00 | 87.60 | 1.30 | 3.52 | h6 | H8 |
| 860.1-0880-045A0-PM | ● | 8.80 | 45.00 | 61.00 | 103.00 | 10.00 | 147.00 | 101.60 | 1.30 | 5.11 | h6 | H8 |
| 860.1-0900-031A0-PM | ● | 9.00 | 31.00 | 47.00 | 89.00 | 10.00 | 147.00 | 87.50 | 1.33 | 3.44 | h6 | H8 |
| 860.1-0900-045A0-PM | ● | 9.00 | 45.00 | 61.00 | 103.00 | 10.00 | 147.00 | 101.50 | 1.33 | 5.00 | h6 | H8 |
| 860.1-0910-031A0-PM | ● | 9.10 | 31.00 | 47.00 | 89.00 | 10.00 | 147.00 | 87.50 | 1.35 | 3.41 | h6 | H8 |
| 860.1-0920-031A0-PM | ● | 9.20 | 31.00 | 47.00 | 89.00 | 10.00 | 147.00 | 87.50 | 1.36 | 3.37 | h6 | H8 |
| 860.1-0920-045A0-PM | ● | 9.20 | 45.00 | 61.00 | 103.00 | 10.00 | 147.00 | 101.50 | 1.36 | 4.89 | h6 | H8 |
● = первый выбор ○ = хороший выбор
