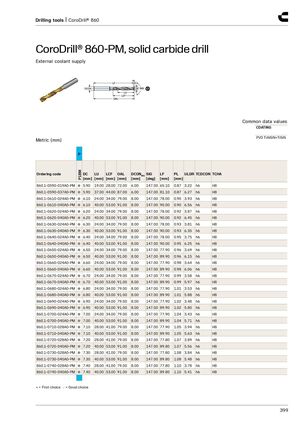

CoroDrill® 860-PM, сверло из твёрдого сплава
Внешняя подача СОЖ
Общие данные
Покрытие: PVD TiAlSiN+TiSiN
Метрическая система (мм)
Область применения: P, P1BM
| Артикул | Выбор | DC [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | ULDR [мм] | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 860.1-0590-019A0-PM | ● | 5.90 | 19.00 | 28.00 | 72.00 | 6.00 | 147.00 | 65.10 | 0.87 | 3.22 | h6 | H8 |
| 860.1-0590-037A0-PM | ● | 5.90 | 37.00 | 44.00 | 87.00 | 6.00 | 147.00 | 81.10 | 0.87 | 6.27 | h6 | H8 |
| 860.1-0610-024A0-PM | ● | 6.10 | 24.00 | 34.00 | 79.00 | 8.00 | 147.00 | 78.00 | 0.90 | 3.93 | h6 | H8 |
| 860.1-0610-040A0-PM | ● | 6.10 | 40.00 | 53.00 | 91.00 | 8.00 | 147.00 | 90.00 | 0.90 | 6.56 | h6 | H8 |
| 860.1-0620-024A0-PM | ● | 6.20 | 24.00 | 34.00 | 79.00 | 8.00 | 147.00 | 78.00 | 0.92 | 3.87 | h6 | H8 |
| 860.1-0620-040A0-PM | ● | 6.20 | 40.00 | 53.00 | 91.00 | 8.00 | 147.00 | 90.00 | 0.92 | 6.45 | h6 | H8 |
| 860.1-0630-024A0-PM | ● | 6.30 | 24.00 | 34.00 | 79.00 | 8.00 | 147.00 | 78.00 | 0.93 | 3.81 | h6 | H8 |
| 860.1-0630-040A0-PM | ● | 6.30 | 40.00 | 53.00 | 91.00 | 8.00 | 147.00 | 90.00 | 0.93 | 6.35 | h6 | H8 |
| 860.1-0640-024A0-PM | ● | 6.40 | 24.00 | 34.00 | 79.00 | 8.00 | 147.00 | 78.00 | 0.95 | 3.75 | h6 | H8 |
| 860.1-0640-040A0-PM | ● | 6.40 | 40.00 | 53.00 | 91.00 | 8.00 | 147.00 | 90.00 | 0.95 | 6.25 | h6 | H8 |
| 860.1-0650-024A0-PM | ● | 6.50 | 24.00 | 34.00 | 79.00 | 8.00 | 147.00 | 77.90 | 0.96 | 3.69 | h6 | H8 |
| 860.1-0650-040A0-PM | ● | 6.50 | 40.00 | 53.00 | 91.00 | 8.00 | 147.00 | 89.90 | 0.96 | 6.15 | h6 | H8 |
| 860.1-0660-024A0-PM | ● | 6.60 | 24.00 | 34.00 | 79.00 | 8.00 | 147.00 | 77.90 | 0.98 | 3.64 | h6 | H8 |
| 860.1-0660-040A0-PM | ● | 6.60 | 40.00 | 53.00 | 91.00 | 8.00 | 147.00 | 89.90 | 0.98 | 6.06 | h6 | H8 |
| 860.1-0670-024A0-PM | ● | 6.70 | 24.00 | 34.00 | 79.00 | 8.00 | 147.00 | 77.90 | 0.99 | 3.58 | h6 | H8 |
| 860.1-0670-040A0-PM | ● | 6.70 | 40.00 | 53.00 | 91.00 | 8.00 | 147.00 | 89.90 | 0.99 | 5.97 | h6 | H8 |
| 860.1-0680-024A0-PM | ● | 6.80 | 24.00 | 34.00 | 79.00 | 8.00 | 147.00 | 77.90 | 1.01 | 3.53 | h6 | H8 |
| 860.1-0680-040A0-PM | ● | 6.80 | 40.00 | 53.00 | 91.00 | 8.00 | 147.00 | 89.90 | 1.01 | 5.88 | h6 | H8 |
| 860.1-0690-024A0-PM | ● | 6.90 | 24.00 | 34.00 | 79.00 | 8.00 | 147.00 | 77.90 | 1.02 | 3.48 | h6 | H8 |
| 860.1-0690-040A0-PM | ● | 6.90 | 40.00 | 53.00 | 91.00 | 8.00 | 147.00 | 89.90 | 1.02 | 5.80 | h6 | H8 |
| 860.1-0700-024A0-PM | ● | 7.00 | 24.00 | 34.00 | 79.00 | 8.00 | 147.00 | 77.90 | 1.04 | 3.43 | h6 | H8 |
| 860.1-0700-040A0-PM | ● | 7.00 | 40.00 | 53.00 | 91.00 | 8.00 | 147.00 | 89.90 | 1.04 | 5.71 | h6 | H8 |
| 860.1-0710-028A0-PM | ● | 7.10 | 28.00 | 41.00 | 79.00 | 8.00 | 147.00 | 77.90 | 1.05 | 3.94 | h6 | H8 |
| 860.1-0710-040A0-PM | ● | 7.10 | 40.00 | 53.00 | 91.00 | 8.00 | 147.00 | 89.90 | 1.05 | 5.63 | h6 | H8 |
| 860.1-0720-028A0-PM | ● | 7.20 | 28.00 | 41.00 | 79.00 | 8.00 | 147.00 | 77.80 | 1.07 | 3.89 | h6 | H8 |
| 860.1-0720-040A0-PM | ● | 7.20 | 40.00 | 53.00 | 91.00 | 8.00 | 147.00 | 89.80 | 1.07 | 5.56 | h6 | H8 |
| 860.1-0730-028A0-PM | ● | 7.30 | 28.00 | 41.00 | 79.00 | 8.00 | 147.00 | 77.80 | 1.08 | 3.84 | h6 | H8 |
| 860.1-0730-040A0-PM | ● | 7.30 | 40.00 | 53.00 | 91.00 | 8.00 | 147.00 | 89.80 | 1.08 | 5.48 | h6 | H8 |
| 860.1-0740-028A0-PM | ● | 7.40 | 28.00 | 41.00 | 79.00 | 8.00 | 147.00 | 77.80 | 1.10 | 3.78 | h6 | H8 |
| 860.1-0740-040A0-PM | ● | 7.40 | 40.00 | 53.00 | 91.00 | 8.00 | 147.00 | 89.80 | 1.10 | 5.41 | h6 | H8 |
● = первый выбор ○ = хороший выбор
