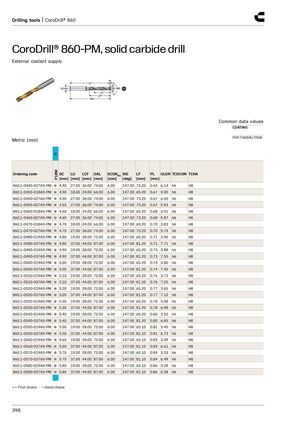

CoroDrill® 860-PM, сверло из твёрдого сплава
Внешняя подача СОЖ
Общие данные
Покрытие: PVD TiAlSiN+TiSiN
Метрическая система (мм)
Область применения: P, P1BM
| Артикул | Выбор | DC [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | ULDR [мм] | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 860.1-0440-027A0-PM | ● | 4.40 | 27.00 | 36.00 | 74.00 | 6.00 | 147.00 | 73.20 | 0.65 | 6.14 | h6 | H8 |
| 860.1-0450-018A0-PM | ● | 4.50 | 18.00 | 24.00 | 66.00 | 6.00 | 147.00 | 65.20 | 0.67 | 4.00 | h6 | H8 |
| 860.1-0450-027A0-PM | ● | 4.50 | 27.00 | 36.00 | 74.00 | 6.00 | 147.00 | 73.20 | 0.67 | 6.00 | h6 | H8 |
| 860.1-0455-027A0-PM | ● | 4.55 | 27.00 | 36.00 | 74.00 | 6.00 | 147.00 | 73.20 | 0.67 | 5.93 | h6 | H8 |
| 860.1-0460-018A0-PM | ● | 4.60 | 18.00 | 24.00 | 66.00 | 6.00 | 147.00 | 65.20 | 0.68 | 3.91 | h6 | H8 |
| 860.1-0460-027A0-PM | ● | 4.60 | 27.00 | 36.00 | 74.00 | 6.00 | 147.00 | 73.20 | 0.68 | 5.87 | h6 | H8 |
| 860.1-0470-018A0-PM | ● | 4.70 | 18.00 | 24.00 | 66.00 | 6.00 | 147.00 | 65.20 | 0.70 | 3.83 | h6 | H8 |
| 860.1-0470-027A0-PM | ● | 4.70 | 27.00 | 36.00 | 74.00 | 6.00 | 147.00 | 73.20 | 0.70 | 5.74 | h6 | H8 |
| 860.1-0480-019A0-PM | ● | 4.80 | 19.00 | 28.00 | 72.00 | 6.00 | 147.00 | 65.20 | 0.71 | 3.96 | h6 | H8 |
| 860.1-0480-037A0-PM | ● | 4.80 | 37.00 | 44.00 | 87.00 | 6.00 | 147.00 | 81.20 | 0.71 | 7.71 | h6 | H8 |
| 860.1-0490-019A0-PM | ● | 4.90 | 19.00 | 28.00 | 72.00 | 6.00 | 147.00 | 65.20 | 0.73 | 3.88 | h6 | H8 |
| 860.1-0490-037A0-PM | ● | 4.90 | 37.00 | 44.00 | 87.00 | 6.00 | 147.00 | 81.20 | 0.73 | 7.55 | h6 | H8 |
| 860.1-0500-019A0-PM | ● | 5.00 | 19.00 | 28.00 | 72.00 | 6.00 | 147.00 | 65.20 | 0.74 | 3.80 | h6 | H8 |
| 860.1-0500-037A0-PM | ● | 5.00 | 37.00 | 44.00 | 87.00 | 6.00 | 147.00 | 81.20 | 0.74 | 7.40 | h6 | H8 |
| 860.1-0510-019A0-PM | ● | 5.10 | 19.00 | 28.00 | 72.00 | 6.00 | 147.00 | 65.20 | 0.76 | 3.73 | h6 | H8 |
| 860.1-0510-037A0-PM | ● | 5.10 | 37.00 | 44.00 | 87.00 | 6.00 | 147.00 | 81.20 | 0.76 | 7.25 | h6 | H8 |
| 860.1-0520-019A0-PM | ● | 5.20 | 19.00 | 28.00 | 72.00 | 6.00 | 147.00 | 65.20 | 0.77 | 3.65 | h6 | H8 |
| 860.1-0520-037A0-PM | ● | 5.20 | 37.00 | 44.00 | 87.00 | 6.00 | 147.00 | 81.20 | 0.77 | 7.12 | h6 | H8 |
| 860.1-0530-019A0-PM | ● | 5.30 | 19.00 | 28.00 | 72.00 | 6.00 | 147.00 | 65.20 | 0.78 | 3.58 | h6 | H8 |
| 860.1-0530-037A0-PM | ● | 5.30 | 37.00 | 44.00 | 87.00 | 6.00 | 147.00 | 81.20 | 0.78 | 6.98 | h6 | H8 |
| 860.1-0540-019A0-PM | ● | 5.40 | 19.00 | 28.00 | 72.00 | 6.00 | 147.00 | 65.20 | 0.80 | 3.52 | h6 | H8 |
| 860.1-0540-037A0-PM | ● | 5.40 | 37.00 | 44.00 | 87.00 | 6.00 | 147.00 | 81.20 | 0.80 | 6.85 | h6 | H8 |
| 860.1-0550-019A0-PM | ● | 5.50 | 19.00 | 28.00 | 72.00 | 6.00 | 147.00 | 65.10 | 0.81 | 3.45 | h6 | H8 |
| 860.1-0550-037A0-PM | ● | 5.50 | 37.00 | 44.00 | 87.00 | 6.00 | 147.00 | 81.10 | 0.81 | 6.73 | h6 | H8 |
| 860.1-0560-019A0-PM | ● | 5.60 | 19.00 | 28.00 | 72.00 | 6.00 | 147.00 | 65.10 | 0.83 | 3.39 | h6 | H8 |
| 860.1-0560-037A0-PM | ● | 5.60 | 37.00 | 44.00 | 87.00 | 6.00 | 147.00 | 81.10 | 0.83 | 6.61 | h6 | H8 |
| 860.1-0570-019A0-PM | ● | 5.70 | 19.00 | 28.00 | 72.00 | 6.00 | 147.00 | 65.10 | 0.84 | 3.33 | h6 | H8 |
| 860.1-0570-037A0-PM | ● | 5.70 | 37.00 | 44.00 | 87.00 | 6.00 | 147.00 | 81.10 | 0.84 | 6.49 | h6 | H8 |
| 860.1-0580-019A0-PM | ● | 5.80 | 19.00 | 28.00 | 72.00 | 6.00 | 147.00 | 65.10 | 0.86 | 3.28 | h6 | H8 |
| 860.1-0580-037A0-PM | ● | 5.80 | 37.00 | 44.00 | 87.00 | 6.00 | 147.00 | 81.10 | 0.86 | 6.38 | h6 | H8 |
● = первый выбор ○ = хороший выбор
