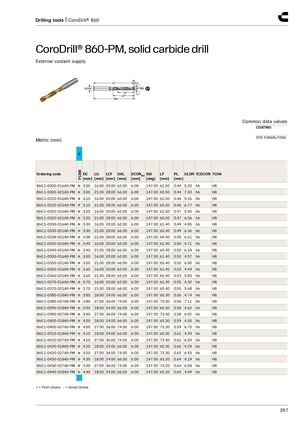

CoroDrill® 860-PM, сверло из твёрдого сплава
Внешняя подача СОЖ
Общие данные
Покрытие: PVD TiAlSiN+TiSiN
Метрическая система (мм)
Область применения: P, P1BM
| Артикул | Выбор | DC [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | ULDR [мм] | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 860.1-0300-016A0-PM | ● | 3.00 | 16.00 | 20.00 | 62.00 | 6.00 | 147.00 | 61.50 | 0.44 | 5.33 | h6 | H8 |
| 860.1-0300-021A0-PM | ● | 3.00 | 21.00 | 28.00 | 66.00 | 6.00 | 147.00 | 65.50 | 0.44 | 7.00 | h6 | H8 |
| 860.1-0310-016A0-PM | ● | 3.10 | 16.00 | 20.00 | 62.00 | 6.00 | 147.00 | 61.50 | 0.46 | 5.16 | h6 | H8 |
| 860.1-0310-021A0-PM | ● | 3.10 | 21.00 | 28.00 | 66.00 | 6.00 | 147.00 | 65.50 | 0.46 | 6.77 | h6 | H8 |
| 860.1-0320-016A0-PM | ● | 3.20 | 16.00 | 20.00 | 62.00 | 6.00 | 147.00 | 61.50 | 0.47 | 5.00 | h6 | H8 |
| 860.1-0320-021A0-PM | ● | 3.20 | 21.00 | 28.00 | 66.00 | 6.00 | 147.00 | 65.50 | 0.47 | 6.56 | h6 | H8 |
| 860.1-0330-016A0-PM | ● | 3.30 | 16.00 | 20.00 | 62.00 | 6.00 | 147.00 | 61.40 | 0.49 | 4.85 | h6 | H8 |
| 860.1-0330-021A0-PM | ● | 3.30 | 21.00 | 28.00 | 66.00 | 6.00 | 147.00 | 65.40 | 0.49 | 6.36 | h6 | H8 |
| 860.1-0338-021A0-PM | ● | 3.38 | 21.00 | 28.00 | 66.00 | 6.00 | 147.00 | 65.40 | 0.50 | 6.21 | h6 | H8 |
| 860.1-0340-016A0-PM | ● | 3.40 | 16.00 | 20.00 | 62.00 | 6.00 | 147.00 | 61.40 | 0.50 | 4.71 | h6 | H8 |
| 860.1-0340-021A0-PM | ● | 3.40 | 21.00 | 28.00 | 66.00 | 6.00 | 147.00 | 65.40 | 0.50 | 6.18 | h6 | H8 |
| 860.1-0350-016A0-PM | ● | 3.50 | 16.00 | 20.00 | 62.00 | 6.00 | 147.00 | 61.40 | 0.52 | 4.57 | h6 | H8 |
| 860.1-0350-021A0-PM | ● | 3.50 | 21.00 | 28.00 | 66.00 | 6.00 | 147.00 | 65.40 | 0.52 | 6.00 | h6 | H8 |
| 860.1-0360-016A0-PM | ● | 3.60 | 16.00 | 20.00 | 62.00 | 6.00 | 147.00 | 61.40 | 0.53 | 4.44 | h6 | H8 |
| 860.1-0360-021A0-PM | ● | 3.60 | 21.00 | 28.00 | 66.00 | 6.00 | 147.00 | 65.40 | 0.53 | 5.83 | h6 | H8 |
| 860.1-0370-016A0-PM | ● | 3.70 | 16.00 | 20.00 | 62.00 | 6.00 | 147.00 | 61.40 | 0.55 | 4.32 | h6 | H8 |
| 860.1-0370-021A0-PM | ● | 3.70 | 21.00 | 28.00 | 66.00 | 6.00 | 147.00 | 65.40 | 0.55 | 5.68 | h6 | H8 |
| 860.1-0380-018A0-PM | ● | 3.80 | 18.00 | 24.00 | 66.00 | 6.00 | 147.00 | 65.30 | 0.56 | 4.74 | h6 | H8 |
| 860.1-0380-027A0-PM | ● | 3.80 | 27.00 | 36.00 | 74.00 | 6.00 | 147.00 | 73.30 | 0.56 | 7.11 | h6 | H8 |
| 860.1-0390-018A0-PM | ● | 3.90 | 18.00 | 24.00 | 66.00 | 6.00 | 147.00 | 65.30 | 0.58 | 4.62 | h6 | H8 |
| 860.1-0390-027A0-PM | ● | 3.90 | 27.00 | 36.00 | 74.00 | 6.00 | 147.00 | 73.30 | 0.58 | 6.92 | h6 | H8 |
| 860.1-0400-018A0-PM | ● | 4.00 | 18.00 | 24.00 | 66.00 | 6.00 | 147.00 | 65.30 | 0.59 | 4.50 | h6 | H8 |
| 860.1-0400-027A0-PM | ● | 4.00 | 27.00 | 36.00 | 74.00 | 6.00 | 147.00 | 73.30 | 0.59 | 6.75 | h6 | H8 |
| 860.1-0410-018A0-PM | ● | 4.10 | 18.00 | 24.00 | 66.00 | 6.00 | 147.00 | 65.30 | 0.61 | 4.39 | h6 | H8 |
| 860.1-0410-027A0-PM | ● | 4.10 | 27.00 | 36.00 | 74.00 | 6.00 | 147.00 | 73.30 | 0.61 | 6.59 | h6 | H8 |
| 860.1-0420-018A0-PM | ● | 4.20 | 18.00 | 24.00 | 66.00 | 6.00 | 147.00 | 65.30 | 0.62 | 4.29 | h6 | H8 |
| 860.1-0420-027A0-PM | ● | 4.20 | 27.00 | 36.00 | 74.00 | 6.00 | 147.00 | 73.30 | 0.62 | 6.43 | h6 | H8 |
| 860.1-0430-018A0-PM | ● | 4.30 | 18.00 | 24.00 | 66.00 | 6.00 | 147.00 | 65.20 | 0.64 | 4.19 | h6 | H8 |
| 860.1-0430-027A0-PM | ● | 4.30 | 27.00 | 36.00 | 74.00 | 6.00 | 147.00 | 73.20 | 0.64 | 6.28 | h6 | H8 |
| 860.1-0440-018A0-PM | ● | 4.40 | 18.00 | 24.00 | 66.00 | 6.00 | 147.00 | 65.20 | 0.65 | 4.09 | h6 | H8 |
● = первый выбор ○ = хороший выбор
