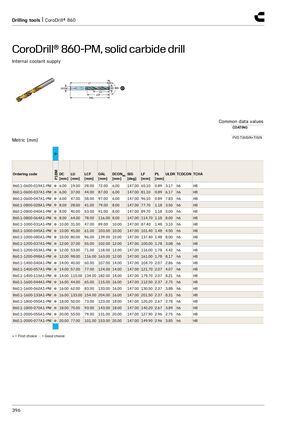

CoroDrill® 860-PM, сверло из твёрдого сплава
Внутренняя подача СОЖ
Общие данные
Покрытие: PVD TiAlSiN+TiSiN
Метрическая система (мм)
Область применения: P, P1BM
| Артикул | Выбор | DC [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | ULDR [мм] | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 860.1-0600-019A1-PM | ● | 6.00 | 19.00 | 28.00 | 72.00 | 6.00 | 147.00 | 65.10 | 0.89 | 3.17 | h6 | H8 |
| 860.1-0600-037A1-PM | ● | 6.00 | 37.00 | 44.00 | 87.00 | 6.00 | 147.00 | 81.10 | 0.89 | 6.17 | h6 | H8 |
| 860.1-0600-047A1-PM | ● | 6.00 | 47.00 | 58.00 | 97.00 | 6.00 | 147.00 | 96.10 | 0.89 | 7.83 | h6 | H8 |
| 860.1-0800-028A1-PM | ● | 8.00 | 28.00 | 41.00 | 79.00 | 8.00 | 147.00 | 77.70 | 1.18 | 3.50 | h6 | H8 |
| 860.1-0800-040A1-PM | ● | 8.00 | 40.00 | 53.00 | 91.00 | 8.00 | 147.00 | 89.70 | 1.18 | 5.00 | h6 | H8 |
| 860.1-0800-064A1-PM | ● | 8.00 | 64.00 | 78.00 | 116.00 | 8.00 | 147.00 | 114.70 | 1.18 | 8.00 | h6 | H8 |
| 860.1-1000-031A1-PM | ● | 10.00 | 31.00 | 47.00 | 89.00 | 10.00 | 147.00 | 87.40 | 1.48 | 3.10 | h6 | H8 |
| 860.1-1000-045A1-PM | ● | 10.00 | 45.00 | 61.00 | 103.00 | 10.00 | 147.00 | 101.40 | 1.48 | 4.50 | h6 | H8 |
| 860.1-1000-080A1-PM | ● | 10.00 | 80.00 | 96.00 | 139.00 | 10.00 | 147.00 | 137.40 | 1.48 | 8.00 | h6 | H8 |
| 860.1-1200-037A1-PM | ● | 12.00 | 37.00 | 55.00 | 102.00 | 12.00 | 147.00 | 100.00 | 1.78 | 3.08 | h6 | H8 |
| 860.1-1200-053A1-PM | ● | 12.00 | 53.00 | 71.00 | 118.00 | 12.00 | 147.00 | 116.00 | 1.78 | 4.42 | h6 | H8 |
| 860.1-1200-098A1-PM | ● | 12.00 | 98.00 | 116.00 | 163.00 | 12.00 | 147.00 | 161.00 | 1.78 | 8.17 | h6 | H8 |
| 860.1-1400-040A1-PM | ● | 14.00 | 40.00 | 60.00 | 107.00 | 14.00 | 147.00 | 104.70 | 2.07 | 2.86 | h6 | H8 |
| 860.1-1400-057A1-PM | ● | 14.00 | 57.00 | 77.00 | 124.00 | 14.00 | 147.00 | 121.70 | 2.07 | 4.07 | h6 | H8 |
| 860.1-1400-115A1-PM | ● | 14.00 | 115.00 | 134.00 | 182.00 | 14.00 | 147.00 | 179.70 | 2.07 | 8.21 | h6 | H8 |
| 860.1-1600-044A1-PM | ● | 16.00 | 44.00 | 65.00 | 115.00 | 16.00 | 147.00 | 112.50 | 2.37 | 2.75 | h6 | H8 |
| 860.1-1600-062A1-PM | ● | 16.00 | 62.00 | 83.00 | 133.00 | 16.00 | 147.00 | 130.50 | 2.37 | 3.88 | h6 | H8 |
| 860.1-1600-133A1-PM | ● | 16.00 | 133.00 | 154.00 | 204.00 | 16.00 | 147.00 | 201.50 | 2.37 | 8.31 | h6 | H8 |
| 860.1-1800-050A1-PM | ● | 18.00 | 50.00 | 73.00 | 123.00 | 18.00 | 147.00 | 120.20 | 2.67 | 2.78 | h6 | H8 |
| 860.1-1800-070A1-PM | ● | 18.00 | 70.00 | 93.00 | 143.00 | 18.00 | 147.00 | 140.20 | 2.67 | 3.89 | h6 | H8 |
| 860.1-2000-055A1-PM | ● | 20.00 | 55.00 | 79.00 | 131.00 | 20.00 | 147.00 | 127.90 | 2.96 | 2.75 | h6 | H8 |
| 860.1-2000-077A1-PM | ● | 20.00 | 77.00 | 101.00 | 153.00 | 20.00 | 147.00 | 149.90 | 2.96 | 3.85 | h6 | H8 |
● = первый выбор ○ = хороший выбор
