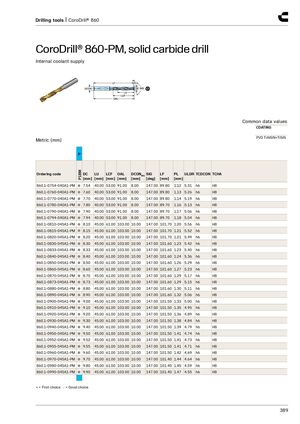

Инструменты для сверления | CoroDrill® 860
CoroDrill® 860-PM, сверло из твёрдого сплава
Внутренняя подача СОЖ
| Общие значения | |
|---|---|
| Покрытие | PVD TiAlSiN+TiSiN |
Метрическая система (мм)
P, P1BM
| Код заказа | DC [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | ULDR | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 860.1-0754-040A1-PM ● | 7.54 | 40.00 | 53.00 | 91.00 | 8.00 | 147.00 | 89.80 | 1.12 | 5.31 | h6 | H8 |
| 860.1-0760-040A1-PM ● | 7.60 | 40.00 | 53.00 | 91.00 | 8.00 | 147.00 | 89.80 | 1.13 | 5.26 | h6 | H8 |
| 860.1-0770-040A1-PM ● | 7.70 | 40.00 | 53.00 | 91.00 | 8.00 | 147.00 | 89.80 | 1.14 | 5.19 | h6 | H8 |
| 860.1-0780-040A1-PM ● | 7.80 | 40.00 | 53.00 | 91.00 | 8.00 | 147.00 | 89.70 | 1.16 | 5.13 | h6 | H8 |
| 860.1-0790-040A1-PM ● | 7.90 | 40.00 | 53.00 | 91.00 | 8.00 | 147.00 | 89.70 | 1.17 | 5.06 | h6 | H8 |
| 860.1-0794-040A1-PM ● | 7.94 | 40.00 | 53.00 | 91.00 | 8.00 | 147.00 | 89.70 | 1.18 | 5.04 | h6 | H8 |
| 860.1-0810-045A1-PM ● | 8.10 | 45.00 | 61.00 | 103.00 | 10.00 | 147.00 | 101.70 | 1.20 | 5.56 | h6 | H8 |
| 860.1-0815-045A1-PM ● | 8.15 | 45.00 | 61.00 | 103.00 | 10.00 | 147.00 | 101.70 | 1.21 | 5.52 | h6 | H8 |
| 860.1-0820-045A1-PM ● | 8.20 | 45.00 | 61.00 | 103.00 | 10.00 | 147.00 | 101.70 | 1.21 | 5.49 | h6 | H8 |
| 860.1-0830-045A1-PM ● | 8.30 | 45.00 | 61.00 | 103.00 | 10.00 | 147.00 | 101.60 | 1.23 | 5.42 | h6 | H8 |
| 860.1-0833-045A1-PM ● | 8.33 | 45.00 | 61.00 | 103.00 | 10.00 | 147.00 | 101.60 | 1.23 | 5.40 | h6 | H8 |
| 860.1-0840-045A1-PM ● | 8.40 | 45.00 | 61.00 | 103.00 | 10.00 | 147.00 | 101.60 | 1.24 | 5.36 | h6 | H8 |
| 860.1-0850-045A1-PM ● | 8.50 | 45.00 | 61.00 | 103.00 | 10.00 | 147.00 | 101.60 | 1.26 | 5.29 | h6 | H8 |
| 860.1-0860-045A1-PM ● | 8.60 | 45.00 | 61.00 | 103.00 | 10.00 | 147.00 | 101.60 | 1.27 | 5.23 | h6 | H8 |
| 860.1-0870-045A1-PM ● | 8.70 | 45.00 | 61.00 | 103.00 | 10.00 | 147.00 | 101.60 | 1.29 | 5.17 | h6 | H8 |
| 860.1-0873-045A1-PM ● | 8.73 | 45.00 | 61.00 | 103.00 | 10.00 | 147.00 | 101.60 | 1.29 | 5.15 | h6 | H8 |
| 860.1-0880-045A1-PM ● | 8.80 | 45.00 | 61.00 | 103.00 | 10.00 | 147.00 | 101.60 | 1.30 | 5.11 | h6 | H8 |
| 860.1-0890-045A1-PM ● | 8.90 | 45.00 | 61.00 | 103.00 | 10.00 | 147.00 | 101.60 | 1.32 | 5.06 | h6 | H8 |
| 860.1-0900-045A1-PM ● | 9.00 | 45.00 | 61.00 | 103.00 | 10.00 | 147.00 | 101.50 | 1.33 | 5.00 | h6 | H8 |
| 860.1-0910-045A1-PM ● | 9.10 | 45.00 | 61.00 | 103.00 | 10.00 | 147.00 | 101.50 | 1.35 | 4.95 | h6 | H8 |
| 860.1-0920-045A1-PM ● | 9.20 | 45.00 | 61.00 | 103.00 | 10.00 | 147.00 | 101.50 | 1.36 | 4.89 | h6 | H8 |
| 860.1-0930-045A1-PM ● | 9.30 | 45.00 | 61.00 | 103.00 | 10.00 | 147.00 | 101.50 | 1.38 | 4.84 | h6 | H8 |
| 860.1-0940-045A1-PM ● | 9.40 | 45.00 | 61.00 | 103.00 | 10.00 | 147.00 | 101.50 | 1.39 | 4.79 | h6 | H8 |
| 860.1-0950-045A1-PM ● | 9.50 | 45.00 | 61.00 | 103.00 | 10.00 | 147.00 | 101.50 | 1.41 | 4.74 | h6 | H8 |
| 860.1-0952-045A1-PM ● | 9.52 | 45.00 | 61.00 | 103.00 | 10.00 | 147.00 | 101.50 | 1.41 | 4.73 | h6 | H8 |
| 860.1-0955-045A1-PM ● | 9.55 | 45.00 | 61.00 | 103.00 | 10.00 | 147.00 | 101.50 | 1.41 | 4.71 | h6 | H8 |
| 860.1-0960-045A1-PM ● | 9.60 | 45.00 | 61.00 | 103.00 | 10.00 | 147.00 | 101.50 | 1.42 | 4.69 | h6 | H8 |
| 860.1-0970-045A1-PM ● | 9.70 | 45.00 | 61.00 | 103.00 | 10.00 | 147.00 | 101.40 | 1.44 | 4.64 | h6 | H8 |
| 860.1-0980-045A1-PM ● | 9.80 | 45.00 | 61.00 | 103.00 | 10.00 | 147.00 | 101.40 | 1.45 | 4.59 | h6 | H8 |
| 860.1-0990-045A1-PM ● | 9.90 | 45.00 | 61.00 | 103.00 | 10.00 | 147.00 | 101.40 | 1.47 | 4.55 | h6 | H8 |
● = Первый выбор ○ = Хороший выбор
