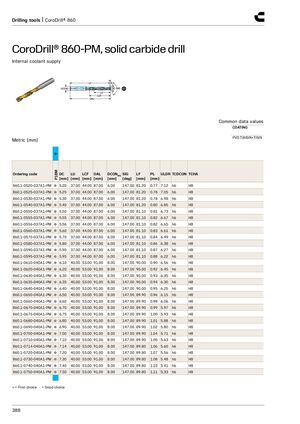

Инструменты для сверления | CoroDrill® 860
CoroDrill® 860-PM, сверло из твёрдого сплава
Внутренняя подача СОЖ
| Общие значения | |
|---|---|
| Покрытие | PVD TiAlSiN+TiSiN |
Метрическая система (мм)
P, P1BM
| Код заказа | DC [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | ULDR | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 860.1-0520-037A1-PM ● | 5.20 | 37.00 | 44.00 | 87.00 | 6.00 | 147.00 | 81.20 | 0.77 | 7.12 | h6 | H8 |
| 860.1-0525-037A1-PM ● | 5.25 | 37.00 | 44.00 | 87.00 | 6.00 | 147.00 | 81.20 | 0.78 | 7.05 | h6 | H8 |
| 860.1-0530-037A1-PM ● | 5.30 | 37.00 | 44.00 | 87.00 | 6.00 | 147.00 | 81.20 | 0.78 | 6.98 | h6 | H8 |
| 860.1-0540-037A1-PM ● | 5.40 | 37.00 | 44.00 | 87.00 | 6.00 | 147.00 | 81.20 | 0.80 | 6.85 | h6 | H8 |
| 860.1-0550-037A1-PM ● | 5.50 | 37.00 | 44.00 | 87.00 | 6.00 | 147.00 | 81.10 | 0.81 | 6.73 | h6 | H8 |
| 860.1-0555-037A1-PM ● | 5.55 | 37.00 | 44.00 | 87.00 | 6.00 | 147.00 | 81.10 | 0.82 | 6.67 | h6 | H8 |
| 860.1-0556-037A1-PM ● | 5.56 | 37.00 | 44.00 | 87.00 | 6.00 | 147.00 | 81.10 | 0.82 | 6.65 | h6 | H8 |
| 860.1-0560-037A1-PM ● | 5.60 | 37.00 | 44.00 | 87.00 | 6.00 | 147.00 | 81.10 | 0.83 | 6.61 | h6 | H8 |
| 860.1-0570-037A1-PM ● | 5.70 | 37.00 | 44.00 | 87.00 | 6.00 | 147.00 | 81.10 | 0.84 | 6.49 | h6 | H8 |
| 860.1-0580-037A1-PM ● | 5.80 | 37.00 | 44.00 | 87.00 | 6.00 | 147.00 | 81.10 | 0.86 | 6.38 | h6 | H8 |
| 860.1-0590-037A1-PM ● | 5.90 | 37.00 | 44.00 | 87.00 | 6.00 | 147.00 | 81.10 | 0.87 | 6.27 | h6 | H8 |
| 860.1-0595-037A1-PM ● | 5.95 | 37.00 | 44.00 | 87.00 | 6.00 | 147.00 | 81.10 | 0.88 | 6.22 | h6 | H8 |
| 860.1-0610-040A1-PM ● | 6.10 | 40.00 | 53.00 | 91.00 | 8.00 | 147.00 | 90.00 | 0.90 | 6.56 | h6 | H8 |
| 860.1-0620-040A1-PM ● | 6.20 | 40.00 | 53.00 | 91.00 | 8.00 | 147.00 | 90.00 | 0.92 | 6.45 | h6 | H8 |
| 860.1-0630-040A1-PM ● | 6.30 | 40.00 | 53.00 | 91.00 | 8.00 | 147.00 | 90.00 | 0.93 | 6.35 | h6 | H8 |
| 860.1-0635-040A1-PM ● | 6.35 | 40.00 | 53.00 | 91.00 | 8.00 | 147.00 | 90.00 | 0.94 | 6.30 | h6 | H8 |
| 860.1-0640-040A1-PM ● | 6.40 | 40.00 | 53.00 | 91.00 | 8.00 | 147.00 | 90.00 | 0.95 | 6.25 | h6 | H8 |
| 860.1-0650-040A1-PM ● | 6.50 | 40.00 | 53.00 | 91.00 | 8.00 | 147.00 | 89.90 | 0.96 | 6.15 | h6 | H8 |
| 860.1-0660-040A1-PM ● | 6.60 | 40.00 | 53.00 | 91.00 | 8.00 | 147.00 | 89.90 | 0.98 | 6.06 | h6 | H8 |
| 860.1-0670-040A1-PM ● | 6.70 | 40.00 | 53.00 | 91.00 | 8.00 | 147.00 | 89.90 | 0.99 | 5.97 | h6 | H8 |
| 860.1-0675-040A1-PM ● | 6.75 | 40.00 | 53.00 | 91.00 | 8.00 | 147.00 | 89.90 | 1.00 | 5.93 | h6 | H8 |
| 860.1-0680-040A1-PM ● | 6.80 | 40.00 | 53.00 | 91.00 | 8.00 | 147.00 | 89.90 | 1.01 | 5.88 | h6 | H8 |
| 860.1-0690-040A1-PM ● | 6.90 | 40.00 | 53.00 | 91.00 | 8.00 | 147.00 | 89.90 | 1.02 | 5.80 | h6 | H8 |
| 860.1-0700-040A1-PM ● | 7.00 | 40.00 | 53.00 | 91.00 | 8.00 | 147.00 | 89.90 | 1.04 | 5.71 | h6 | H8 |
| 860.1-0710-040A1-PM ● | 7.10 | 40.00 | 53.00 | 91.00 | 8.00 | 147.00 | 89.90 | 1.05 | 5.63 | h6 | H8 |
| 860.1-0714-040A1-PM ● | 7.14 | 40.00 | 53.00 | 91.00 | 8.00 | 147.00 | 89.80 | 1.06 | 5.60 | h6 | H8 |
| 860.1-0720-040A1-PM ● | 7.20 | 40.00 | 53.00 | 91.00 | 8.00 | 147.00 | 89.80 | 1.07 | 5.56 | h6 | H8 |
| 860.1-0730-040A1-PM ● | 7.30 | 40.00 | 53.00 | 91.00 | 8.00 | 147.00 | 89.80 | 1.08 | 5.48 | h6 | H8 |
| 860.1-0740-040A1-PM ● | 7.40 | 40.00 | 53.00 | 91.00 | 8.00 | 147.00 | 89.80 | 1.10 | 5.41 | h6 | H8 |
| 860.1-0750-040A1-PM ● | 7.50 | 40.00 | 53.00 | 91.00 | 8.00 | 147.00 | 89.80 | 1.11 | 5.33 | h6 | H8 |
● = Первый выбор ○ = Хороший выбор
