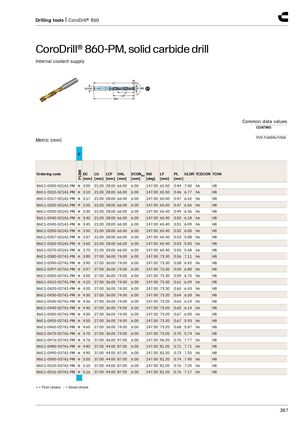

Инструменты для сверления | CoroDrill® 860
CoroDrill® 860-PM, сверло из твёрдого сплава
Внутренняя подача СОЖ
| Общие значения | |
|---|---|
| Покрытие | PVD TiAlSiN+TiSiN |
Метрическая система (мм)
P, P1BM
| Код заказа | DC [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | ULDR | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 860.1-0300-021A1-PM ● | 3.00 | 21.00 | 28.00 | 66.00 | 6.00 | 147.00 | 65.50 | 0.44 | 7.00 | h6 | H8 |
| 860.1-0310-021A1-PM ● | 3.10 | 21.00 | 28.00 | 66.00 | 6.00 | 147.00 | 65.50 | 0.46 | 6.77 | h6 | H8 |
| 860.1-0317-021A1-PM ● | 3.17 | 21.00 | 28.00 | 66.00 | 6.00 | 147.00 | 65.50 | 0.47 | 6.62 | h6 | H8 |
| 860.1-0320-021A1-PM ● | 3.20 | 21.00 | 28.00 | 66.00 | 6.00 | 147.00 | 65.50 | 0.47 | 6.56 | h6 | H8 |
| 860.1-0330-021A1-PM ● | 3.30 | 21.00 | 28.00 | 66.00 | 6.00 | 147.00 | 65.40 | 0.49 | 6.36 | h6 | H8 |
| 860.1-0340-021A1-PM ● | 3.40 | 21.00 | 28.00 | 66.00 | 6.00 | 147.00 | 65.40 | 0.50 | 6.18 | h6 | H8 |
| 860.1-0345-021A1-PM ● | 3.45 | 21.00 | 28.00 | 66.00 | 6.00 | 147.00 | 65.40 | 0.51 | 6.09 | h6 | H8 |
| 860.1-0350-021A1-PM ● | 3.50 | 21.00 | 28.00 | 66.00 | 6.00 | 147.00 | 65.40 | 0.52 | 6.00 | h6 | H8 |
| 860.1-0357-021A1-PM ● | 3.57 | 21.00 | 28.00 | 66.00 | 6.00 | 147.00 | 65.40 | 0.53 | 5.88 | h6 | H8 |
| 860.1-0360-021A1-PM ● | 3.60 | 21.00 | 28.00 | 66.00 | 6.00 | 147.00 | 65.40 | 0.53 | 5.83 | h6 | H8 |
| 860.1-0370-021A1-PM ● | 3.70 | 21.00 | 28.00 | 66.00 | 6.00 | 147.00 | 65.40 | 0.55 | 5.68 | h6 | H8 |
| 860.1-0380-027A1-PM ● | 3.80 | 27.00 | 36.00 | 74.00 | 6.00 | 147.00 | 73.30 | 0.56 | 7.11 | h6 | H8 |
| 860.1-0390-027A1-PM ● | 3.90 | 27.00 | 36.00 | 74.00 | 6.00 | 147.00 | 73.30 | 0.58 | 6.92 | h6 | H8 |
| 860.1-0397-027A1-PM ● | 3.97 | 27.00 | 36.00 | 74.00 | 6.00 | 147.00 | 73.30 | 0.59 | 6.80 | h6 | H8 |
| 860.1-0400-027A1-PM ● | 4.00 | 27.00 | 36.00 | 74.00 | 6.00 | 147.00 | 73.30 | 0.59 | 6.75 | h6 | H8 |
| 860.1-0410-027A1-PM ● | 4.10 | 27.00 | 36.00 | 74.00 | 6.00 | 147.00 | 73.30 | 0.61 | 6.59 | h6 | H8 |
| 860.1-0420-027A1-PM ● | 4.20 | 27.00 | 36.00 | 74.00 | 6.00 | 147.00 | 73.30 | 0.62 | 6.43 | h6 | H8 |
| 860.1-0430-027A1-PM ● | 4.30 | 27.00 | 36.00 | 74.00 | 6.00 | 147.00 | 73.20 | 0.64 | 6.28 | h6 | H8 |
| 860.1-0436-027A1-PM ● | 4.36 | 27.00 | 36.00 | 74.00 | 6.00 | 147.00 | 73.20 | 0.65 | 6.19 | h6 | H8 |
| 860.1-0440-027A1-PM ● | 4.40 | 27.00 | 36.00 | 74.00 | 6.00 | 147.00 | 73.20 | 0.65 | 6.14 | h6 | H8 |
| 860.1-0450-027A1-PM ● | 4.50 | 27.00 | 36.00 | 74.00 | 6.00 | 147.00 | 73.20 | 0.67 | 6.00 | h6 | H8 |
| 860.1-0455-027A1-PM ● | 4.55 | 27.00 | 36.00 | 74.00 | 6.00 | 147.00 | 73.20 | 0.67 | 5.93 | h6 | H8 |
| 860.1-0460-027A1-PM ● | 4.60 | 27.00 | 36.00 | 74.00 | 6.00 | 147.00 | 73.20 | 0.68 | 5.87 | h6 | H8 |
| 860.1-0470-027A1-PM ● | 4.70 | 27.00 | 36.00 | 74.00 | 6.00 | 147.00 | 73.20 | 0.70 | 5.74 | h6 | H8 |
| 860.1-0476-037A1-PM ● | 4.76 | 37.00 | 46.00 | 97.00 | 6.00 | 147.00 | 96.20 | 0.70 | 7.77 | h6 | H8 |
| 860.1-0480-037A1-PM ● | 4.80 | 37.00 | 44.00 | 87.00 | 6.00 | 147.00 | 81.20 | 0.71 | 7.71 | h6 | H8 |
| 860.1-0490-037A1-PM ● | 4.90 | 37.00 | 44.00 | 87.00 | 6.00 | 147.00 | 81.20 | 0.73 | 7.55 | h6 | H8 |
| 860.1-0500-037A1-PM ● | 5.00 | 37.00 | 44.00 | 87.00 | 6.00 | 147.00 | 81.20 | 0.74 | 7.40 | h6 | H8 |
| 860.1-0510-037A1-PM ● | 5.10 | 37.00 | 44.00 | 87.00 | 6.00 | 147.00 | 81.20 | 0.76 | 7.25 | h6 | H8 |
| 860.1-0516-037A1-PM ● | 5.16 | 37.00 | 44.00 | 87.00 | 6.00 | 147.00 | 81.20 | 0.76 | 7.17 | h6 | H8 |
● = Первый выбор ○ = Хороший выбор
