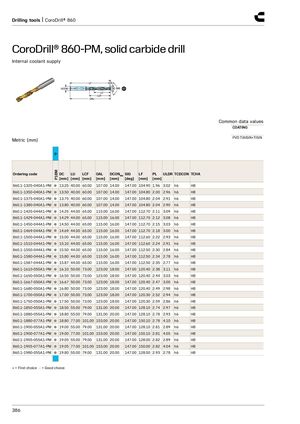

Инструменты для сверления | CoroDrill® 860
CoroDrill® 860-PM, сверло из твёрдого сплава
Внутренняя подача СОЖ
| Общие значения | |
|---|---|
| Покрытие | PVD TiAlSiN+TiSiN |
Метрическая система (мм)
P, P1BM
| Код заказа | DC [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | ULDR | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 860.1-1325-040A1-PM ● | 13.25 | 40.00 | 60.00 | 107.00 | 14.00 | 147.00 | 104.90 | 1.96 | 3.02 | h6 | H8 |
| 860.1-1350-040A1-PM ● | 13.50 | 40.00 | 60.00 | 107.00 | 14.00 | 147.00 | 104.80 | 2.00 | 2.96 | h6 | H8 |
| 860.1-1375-040A1-PM ● | 13.75 | 40.00 | 60.00 | 107.00 | 14.00 | 147.00 | 104.80 | 2.04 | 2.91 | h6 | H8 |
| 860.1-1380-040A1-PM ● | 13.80 | 40.00 | 60.00 | 107.00 | 14.00 | 147.00 | 104.80 | 2.04 | 2.90 | h6 | H8 |
| 860.1-1425-044A1-PM ● | 14.25 | 44.00 | 65.00 | 115.00 | 16.00 | 147.00 | 112.70 | 2.11 | 3.09 | h6 | H8 |
| 860.1-1429-044A1-PM ● | 14.29 | 44.00 | 65.00 | 115.00 | 16.00 | 147.00 | 112.70 | 2.12 | 3.08 | h6 | H8 |
| 860.1-1450-044A1-PM ● | 14.50 | 44.00 | 65.00 | 115.00 | 16.00 | 147.00 | 112.70 | 2.15 | 3.03 | h6 | H8 |
| 860.1-1469-044A1-PM ● | 14.69 | 44.00 | 65.00 | 115.00 | 16.00 | 147.00 | 112.70 | 2.18 | 3.00 | h6 | H8 |
| 860.1-1500-044A1-PM ● | 15.00 | 44.00 | 65.00 | 115.00 | 16.00 | 147.00 | 112.60 | 2.22 | 2.93 | h6 | H8 |
| 860.1-1510-044A1-PM ● | 15.10 | 44.00 | 65.00 | 115.00 | 16.00 | 147.00 | 112.60 | 2.24 | 2.91 | h6 | H8 |
| 860.1-1550-044A1-PM ● | 15.50 | 44.00 | 65.00 | 115.00 | 16.00 | 147.00 | 112.50 | 2.30 | 2.84 | h6 | H8 |
| 860.1-1580-044A1-PM ● | 15.80 | 44.00 | 65.00 | 115.00 | 16.00 | 147.00 | 112.50 | 2.34 | 2.78 | h6 | H8 |
| 860.1-1587-044A1-PM ● | 15.87 | 44.00 | 65.00 | 115.00 | 16.00 | 147.00 | 112.50 | 2.35 | 2.77 | h6 | H8 |
| 860.1-1610-050A1-PM ● | 16.10 | 50.00 | 73.00 | 123.00 | 18.00 | 147.00 | 120.40 | 2.38 | 3.11 | h6 | H8 |
| 860.1-1650-050A1-PM ● | 16.50 | 50.00 | 73.00 | 123.00 | 18.00 | 147.00 | 120.40 | 2.44 | 3.03 | h6 | H8 |
| 860.1-1667-050A1-PM ● | 16.67 | 50.00 | 73.00 | 123.00 | 18.00 | 147.00 | 120.40 | 2.47 | 3.00 | h6 | H8 |
| 860.1-1680-050A1-PM ● | 16.80 | 50.00 | 73.00 | 123.00 | 18.00 | 147.00 | 120.40 | 2.49 | 2.98 | h6 | H8 |
| 860.1-1700-050A1-PM ● | 17.00 | 50.00 | 73.00 | 123.00 | 18.00 | 147.00 | 120.30 | 2.52 | 2.94 | h6 | H8 |
| 860.1-1750-050A1-PM ● | 17.50 | 50.00 | 73.00 | 123.00 | 18.00 | 147.00 | 120.30 | 2.59 | 2.86 | h6 | H8 |
| 860.1-1850-055A1-PM ● | 18.50 | 55.00 | 79.00 | 131.00 | 20.00 | 147.00 | 128.10 | 2.74 | 2.97 | h6 | H8 |
| 860.1-1880-055A1-PM ● | 18.80 | 55.00 | 79.00 | 131.00 | 20.00 | 147.00 | 128.10 | 2.78 | 2.93 | h6 | H8 |
| 860.1-1880-077A1-PM ● | 18.80 | 77.00 | 101.00 | 153.00 | 20.00 | 147.00 | 150.10 | 2.78 | 4.10 | h6 | H8 |
| 860.1-1900-055A1-PM ● | 19.00 | 55.00 | 79.00 | 131.00 | 20.00 | 147.00 | 128.10 | 2.81 | 2.89 | h6 | H8 |
| 860.1-1900-077A1-PM ● | 19.00 | 77.00 | 101.00 | 153.00 | 20.00 | 147.00 | 150.10 | 2.81 | 4.05 | h6 | H8 |
| 860.1-1905-055A1-PM ● | 19.05 | 55.00 | 79.00 | 131.00 | 20.00 | 147.00 | 128.00 | 2.82 | 2.89 | h6 | H8 |
| 860.1-1905-077A1-PM ● | 19.05 | 77.00 | 101.00 | 153.00 | 20.00 | 147.00 | 150.00 | 2.82 | 4.04 | h6 | H8 |
| 860.1-1980-055A1-PM ● | 19.80 | 55.00 | 79.00 | 131.00 | 20.00 | 147.00 | 128.00 | 2.93 | 2.78 | h6 | H8 |
● = Первый выбор ○ = Хороший выбор
