Инструмент для сверления | CoroDrill® 860

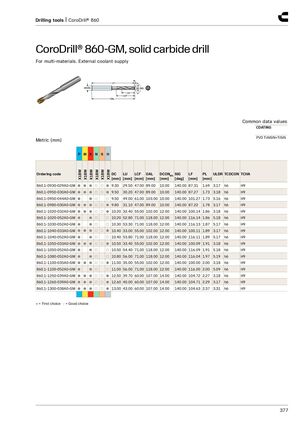

CoroDrill® 860-GM, сплошное твердосплавное сверло
Для мультиматериалов. Внешняя подача СОЖ.
Общие значения данных
ПОКРЫТИЕ: PVD TiAlSiN+TiSiN
Метрическая система (мм)
| Код заказа | P | M | K | N | S | H | DC [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | ULDR | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 860.1-0930-029A0-GM | ● | ● | ● | ○ | ○ | ● | 9.30 | 29.50 | 47.00 | 89.00 | 10.00 | 140.00 | 87.31 | 1.69 | 3.17 | h6 | H9 |
| 860.1-0950-030A0-GM | ● | ● | ● | ○ | ○ | ● | 9.50 | 30.20 | 47.00 | 89.00 | 10.00 | 140.00 | 87.27 | 1.73 | 3.18 | h6 | H9 |
| 860.1-0950-044A0-GM | ● | ● | ○ | ○ | 9.50 | 49.00 | 61.00 | 103.00 | 10.00 | 140.00 | 101.27 | 1.73 | 5.16 | h6 | H9 | ||
| 860.1-0980-030A0-GM | ● | ● | ● | ○ | ○ | ● | 9.80 | 31.10 | 47.00 | 89.00 | 10.00 | 140.00 | 87.22 | 1.78 | 3.17 | h6 | H9 |
| 860.1-1020-032A0-GM | ● | ● | ● | ○ | ○ | ● | 10.20 | 32.40 | 55.00 | 102.00 | 12.00 | 140.00 | 100.14 | 1.86 | 3.18 | h6 | H9 |
| 860.1-1020-052A0-GM | ● | ● | ○ | ○ | 10.20 | 52.80 | 71.00 | 118.00 | 12.00 | 140.00 | 116.14 | 1.86 | 5.18 | h6 | H9 | ||
| 860.1-1030-052A0-GM | ● | ● | ○ | ○ | 10.30 | 53.30 | 71.00 | 118.00 | 12.00 | 140.00 | 116.13 | 1.87 | 5.17 | h6 | H9 | ||
| 860.1-1040-033A0-GM | ● | ● | ● | ○ | ○ | ● | 10.40 | 33.00 | 55.00 | 102.00 | 12.00 | 140.00 | 100.11 | 1.89 | 3.17 | h6 | H9 |
| 860.1-1040-052A0-GM | ● | ● | ○ | ○ | 10.40 | 53.80 | 71.00 | 118.00 | 12.00 | 140.00 | 116.11 | 1.89 | 5.17 | h6 | H9 | ||
| 860.1-1050-033A0-GM | ● | ● | ● | ○ | ○ | ● | 10.50 | 33.40 | 55.00 | 102.00 | 12.00 | 140.00 | 100.09 | 1.91 | 3.18 | h6 | H9 |
| 860.1-1050-052A0-GM | ● | ● | ○ | ○ | 10.50 | 54.40 | 71.00 | 118.00 | 12.00 | 140.00 | 116.09 | 1.91 | 5.18 | h6 | H9 | ||
| 860.1-1080-052A0-GM | ● | ● | ○ | ○ | 10.80 | 56.00 | 71.00 | 118.00 | 12.00 | 140.00 | 116.04 | 1.97 | 5.19 | h6 | H9 | ||
| 860.1-1100-035A0-GM | ● | ● | ● | ○ | ○ | ● | 11.00 | 35.00 | 55.00 | 102.00 | 12.00 | 140.00 | 100.00 | 2.00 | 3.18 | h6 | H9 |
| 860.1-1100-052A0-GM | ● | ● | ○ | ○ | 11.00 | 56.00 | 71.00 | 118.00 | 12.00 | 140.00 | 116.00 | 2.00 | 5.09 | h6 | H9 | ||
| 860.1-1250-039A0-GM | ● | ● | ● | ○ | ○ | ● | 12.50 | 39.70 | 60.00 | 107.00 | 14.00 | 140.00 | 104.72 | 2.27 | 3.18 | h6 | H9 |
| 860.1-1260-039A0-GM | ● | ● | ● | ○ | ○ | ● | 12.60 | 40.00 | 60.00 | 107.00 | 14.00 | 140.00 | 104.71 | 2.29 | 3.17 | h6 | H9 |
| 860.1-1300-038A0-GM | ● | ● | ● | ○ | ○ | ● | 13.00 | 43.00 | 60.00 | 107.00 | 14.00 | 140.00 | 104.63 | 2.37 | 3.31 | h6 | H9 |
● = первый выбор ○ = хороший выбор
