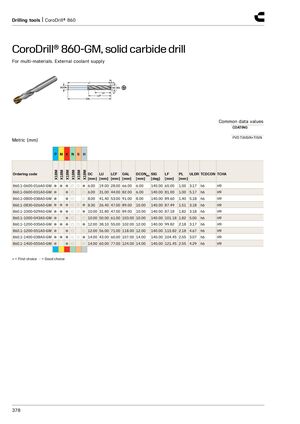

Инструмент для сверления | CoroDrill® 860
CoroDrill® 860-GM, сплошное твердосплавное сверло
Для мультиматериалов. Внешняя подача СОЖ.
Общие значения данных
ПОКРЫТИЕ: PVD TiAlSiN+TiSiN
Метрическая система (мм)
| Код заказа | P | M | K | N | S | H | DC [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | ULDR | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 860.1-0600-016A0-GM | ● | ● | ● | ○ | ○ | ● | 6.00 | 19.00 | 28.00 | 66.00 | 6.00 | 140.00 | 65.00 | 1.00 | 3.17 | h6 | H9 |
| 860.1-0600-031A0-GM | ● | ● | ○ | ○ | 6.00 | 31.00 | 44.00 | 82.00 | 6.00 | 140.00 | 81.00 | 1.00 | 5.17 | h6 | H9 | ||
| 860.1-0800-038A0-GM | ● | ● | ○ | ○ | 8.00 | 41.40 | 53.00 | 91.00 | 8.00 | 140.00 | 89.60 | 1.40 | 5.18 | h6 | H9 | ||
| 860.1-0830-026A0-GM | ● | ● | ● | ○ | ○ | ● | 8.30 | 26.40 | 47.00 | 89.00 | 10.00 | 140.00 | 87.49 | 1.51 | 3.18 | h6 | H9 |
| 860.1-1000-029A0-GM | ● | ● | ● | ○ | ○ | ● | 10.00 | 31.80 | 47.00 | 89.00 | 10.00 | 140.00 | 87.18 | 1.82 | 3.18 | h6 | H9 |
| 860.1-1000-043A0-GM | ● | ● | ○ | ○ | 10.00 | 50.00 | 61.00 | 103.00 | 10.00 | 140.00 | 101.18 | 1.82 | 5.00 | h6 | H9 | ||
| 860.1-1200-035A0-GM | ● | ● | ● | ○ | ○ | ● | 12.00 | 38.10 | 55.00 | 102.00 | 12.00 | 140.00 | 99.82 | 2.18 | 3.17 | h6 | H9 |
| 860.1-1200-051A0-GM | ● | ● | ○ | ○ | 12.00 | 56.00 | 71.00 | 118.00 | 12.00 | 140.00 | 115.82 | 2.18 | 4.67 | h6 | H9 | ||
| 860.1-1400-038A0-GM | ● | ● | ● | ○ | ○ | ● | 14.00 | 43.00 | 60.00 | 107.00 | 14.00 | 140.00 | 104.45 | 2.55 | 3.07 | h6 | H9 |
| 860.1-1400-055A0-GM | ● | ● | ○ | ○ | 14.00 | 60.00 | 77.00 | 124.00 | 14.00 | 140.00 | 121.45 | 2.55 | 4.29 | h6 | H9 |
● = первый выбор ○ = хороший выбор
