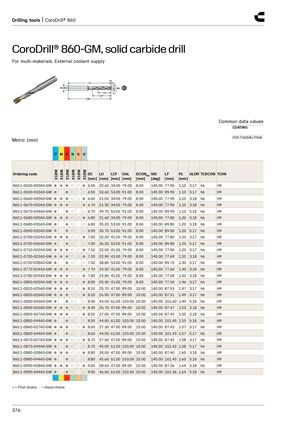

Инструмент для сверления | CoroDrill® 860
CoroDrill® 860-GM, сплошное твердосплавное сверло
Для мультиматериалов. Внешняя подача СОЖ.
Общие значения данных
ПОКРЫТИЕ: PVD TiAlSiN+TiSiN
Метрическая система (мм)
| Код заказа | P | M | K | N | S | H | DC [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | ULDR | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 860.1-0650-020A0-GM | ● | ● | ● | ○ | ○ | ● | 6.50 | 20.60 | 34.00 | 79.00 | 8.00 | 140.00 | 77.90 | 1.10 | 3.17 | h6 | H9 |
| 860.1-0650-033A0-GM | ● | ● | ○ | ○ | 6.50 | 33.60 | 53.00 | 91.00 | 8.00 | 140.00 | 89.90 | 1.10 | 5.17 | h6 | H9 | ||
| 860.1-0660-020A0-GM | ● | ● | ● | ○ | ○ | ● | 6.60 | 21.00 | 34.00 | 79.00 | 8.00 | 140.00 | 77.90 | 1.10 | 3.18 | h6 | H9 |
| 860.1-0670-020A0-GM | ● | ● | ● | ○ | ○ | ● | 6.70 | 21.30 | 34.00 | 79.00 | 8.00 | 140.00 | 77.90 | 1.10 | 3.18 | h6 | H9 |
| 860.1-0670-034A0-GM | ● | ● | ○ | ○ | 6.70 | 34.70 | 53.00 | 91.00 | 8.00 | 140.00 | 89.90 | 1.10 | 5.18 | h6 | H9 | ||
| 860.1-0680-020A0-GM | ● | ● | ● | ○ | ○ | ● | 6.80 | 21.60 | 34.00 | 79.00 | 8.00 | 140.00 | 77.80 | 1.20 | 3.18 | h6 | H9 |
| 860.1-0680-035A0-GM | ● | ● | ○ | ○ | 6.80 | 35.20 | 53.00 | 91.00 | 8.00 | 140.00 | 89.80 | 1.20 | 5.18 | h6 | H9 | ||
| 860.1-0690-035A0-GM | ● | ● | ○ | ○ | 6.90 | 35.70 | 53.00 | 91.00 | 8.00 | 140.00 | 89.80 | 1.20 | 5.17 | h6 | H9 | ||
| 860.1-0700-022A0-GM | ● | ● | ● | ○ | ○ | ● | 7.00 | 22.20 | 41.00 | 79.00 | 8.00 | 140.00 | 77.80 | 1.20 | 3.17 | h6 | H9 |
| 860.1-0700-036A0-GM | ● | ● | ○ | ○ | 7.00 | 36.20 | 53.00 | 91.00 | 8.00 | 140.00 | 89.80 | 1.20 | 5.17 | h6 | H9 | ||
| 860.1-0710-022A0-GM | ● | ● | ● | ○ | ○ | ● | 7.10 | 22.50 | 41.00 | 79.00 | 8.00 | 140.00 | 77.80 | 1.20 | 3.17 | h6 | H9 |
| 860.1-0720-022A0-GM | ● | ● | ● | ○ | ○ | ● | 7.20 | 22.90 | 41.00 | 79.00 | 8.00 | 140.00 | 77.69 | 1.31 | 3.18 | h6 | H9 |
| 860.1-0750-038A0-GM | ● | ● | ○ | ○ | 7.50 | 38.80 | 53.00 | 91.00 | 8.00 | 140.00 | 89.70 | 1.30 | 5.17 | h6 | H9 | ||
| 860.1-0770-024A0-GM | ● | ● | ● | ○ | ○ | ● | 7.70 | 24.50 | 41.00 | 79.00 | 8.00 | 140.00 | 77.60 | 1.40 | 3.18 | h6 | H9 |
| 860.1-0780-024A0-GM | ● | ● | ● | ○ | ○ | ● | 7.80 | 24.80 | 41.00 | 79.00 | 8.00 | 140.00 | 77.58 | 1.42 | 3.18 | h6 | H9 |
| 860.1-0800-025A0-GM | ● | ● | ● | ○ | ○ | ● | 8.00 | 25.40 | 41.00 | 79.00 | 8.00 | 140.00 | 77.54 | 1.46 | 3.17 | h6 | H9 |
| 860.1-0810-025A0-GM | ● | ● | ● | ○ | ○ | ● | 8.10 | 25.70 | 47.00 | 89.00 | 10.00 | 140.00 | 87.53 | 1.47 | 3.17 | h6 | H9 |
| 860.1-0820-026A0-GM | ● | ● | ● | ○ | ○ | ● | 8.20 | 26.00 | 47.00 | 89.00 | 10.00 | 140.00 | 87.51 | 1.49 | 3.17 | h6 | H9 |
| 860.1-0830-043A0-GM | ● | ● | ○ | ○ | 8.30 | 43.00 | 61.00 | 103.00 | 10.00 | 140.00 | 101.60 | 1.40 | 5.18 | h6 | H9 | ||
| 860.1-0840-026A0-GM | ● | ● | ● | ○ | ○ | ● | 8.40 | 26.70 | 47.00 | 89.00 | 10.00 | 140.00 | 87.47 | 1.53 | 3.18 | h6 | H9 |
| 860.1-0850-027A0-GM | ● | ● | ● | ○ | ○ | ● | 8.50 | 27.00 | 47.00 | 89.00 | 10.00 | 140.00 | 87.45 | 1.55 | 3.18 | h6 | H9 |
| 860.1-0850-044A0-GM | ● | ● | ○ | ○ | 8.50 | 44.00 | 61.00 | 103.00 | 10.00 | 140.00 | 101.45 | 1.55 | 5.18 | h6 | H9 | ||
| 860.1-0860-027A0-GM | ● | ● | ● | ○ | ○ | ● | 8.60 | 27.30 | 47.00 | 89.00 | 10.00 | 140.00 | 87.43 | 1.57 | 3.17 | h6 | H9 |
| 860.1-0860-044A0-GM | ● | ● | ○ | ○ | 8.60 | 44.50 | 61.00 | 103.00 | 10.00 | 140.00 | 101.43 | 1.57 | 5.17 | h6 | H9 | ||
| 860.1-0870-027A0-GM | ● | ● | ● | ○ | ○ | ● | 8.70 | 27.60 | 47.00 | 89.00 | 10.00 | 140.00 | 87.42 | 1.58 | 3.17 | h6 | H9 |
| 860.1-0870-044A0-GM | ● | ● | ○ | ○ | 8.70 | 45.00 | 61.00 | 103.00 | 10.00 | 140.00 | 101.42 | 1.58 | 5.17 | h6 | H9 | ||
| 860.1-0880-028A0-GM | ● | ● | ● | ○ | ○ | ● | 8.80 | 28.00 | 47.00 | 89.00 | 10.00 | 140.00 | 87.40 | 1.60 | 3.18 | h6 | H9 |
| 860.1-0880-044A0-GM | ● | ● | ○ | ○ | 8.80 | 45.60 | 61.00 | 103.00 | 10.00 | 140.00 | 101.40 | 1.60 | 5.18 | h6 | H9 | ||
| 860.1-0900-028A0-GM | ● | ● | ● | ○ | ○ | ● | 9.00 | 28.60 | 47.00 | 89.00 | 10.00 | 140.00 | 87.36 | 1.64 | 3.18 | h6 | H9 |
| 860.1-0900-044A0-GM | ● | ● | ○ | ○ | 9.00 | 46.60 | 61.00 | 103.00 | 10.00 | 140.00 | 101.36 | 1.64 | 5.18 | h6 | H9 |
● = первый выбор ○ = хороший выбор
