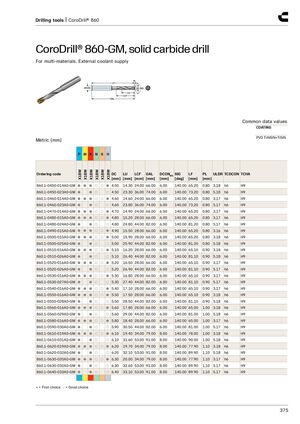

Инструмент для сверления | CoroDrill® 860
CoroDrill® 860-GM, сплошное твердосплавное сверло
Для мультиматериалов. Внешняя подача СОЖ.
Общие значения данных
ПОКРЫТИЕ: PVD TiAlSiN+TiSiN
Метрическая система (мм)
| Код заказа | P | M | K | N | S | H | DC [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | ULDR | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 860.1-0450-014A0-GM | ● | ● | ● | ○ | ○ | ● | 4.50 | 14.30 | 24.00 | 66.00 | 6.00 | 140.00 | 65.20 | 0.80 | 3.18 | h6 | H9 |
| 860.1-0450-023A0-GM | ● | ● | ○ | ○ | 4.50 | 23.30 | 36.00 | 74.00 | 6.00 | 140.00 | 73.20 | 0.80 | 5.18 | h6 | H9 | ||
| 860.1-0460-014A0-GM | ● | ● | ● | ○ | ○ | ● | 4.60 | 14.60 | 24.00 | 66.00 | 6.00 | 140.00 | 65.20 | 0.80 | 3.17 | h6 | H9 |
| 860.1-0460-023A0-GM | ● | ● | ○ | ○ | 4.60 | 23.80 | 36.00 | 74.00 | 6.00 | 140.00 | 73.20 | 0.80 | 5.17 | h6 | H9 | ||
| 860.1-0470-014A0-GM | ● | ● | ● | ○ | ○ | ● | 4.70 | 14.90 | 24.00 | 66.00 | 6.00 | 140.00 | 65.20 | 0.80 | 3.17 | h6 | H9 |
| 860.1-0480-015A0-GM | ● | ● | ● | ○ | ○ | ● | 4.80 | 15.20 | 28.00 | 66.00 | 6.00 | 140.00 | 65.20 | 0.80 | 3.17 | h6 | H9 |
| 860.1-0480-024A0-GM | ● | ● | ○ | ○ | 4.80 | 24.80 | 44.00 | 82.00 | 6.00 | 140.00 | 81.20 | 0.80 | 5.17 | h6 | H9 | ||
| 860.1-0490-015A0-GM | ● | ● | ● | ○ | ○ | ● | 4.90 | 15.50 | 28.00 | 66.00 | 6.00 | 140.00 | 65.20 | 0.80 | 3.16 | h6 | H9 |
| 860.1-0500-015A0-GM | ● | ● | ● | ○ | ○ | ● | 5.00 | 15.90 | 28.00 | 66.00 | 6.00 | 140.00 | 65.20 | 0.80 | 3.18 | h6 | H9 |
| 860.1-0500-025A0-GM | ● | ● | ○ | ○ | 5.00 | 25.90 | 44.00 | 82.00 | 6.00 | 140.00 | 81.20 | 0.80 | 5.18 | h6 | H9 | ||
| 860.1-0510-016A0-GM | ● | ● | ● | ○ | ○ | ● | 5.10 | 16.20 | 28.00 | 66.00 | 6.00 | 140.00 | 65.10 | 0.90 | 3.18 | h6 | H9 |
| 860.1-0510-026A0-GM | ● | ● | ○ | ○ | 5.10 | 26.40 | 44.00 | 82.00 | 6.00 | 140.00 | 81.10 | 0.90 | 5.18 | h6 | H9 | ||
| 860.1-0520-016A0-GM | ● | ● | ● | ○ | ○ | ● | 5.20 | 16.50 | 28.00 | 66.00 | 6.00 | 140.00 | 65.10 | 0.90 | 3.17 | h6 | H9 |
| 860.1-0520-026A0-GM | ● | ● | ○ | ○ | 5.20 | 26.90 | 44.00 | 82.00 | 6.00 | 140.00 | 81.10 | 0.90 | 5.17 | h6 | H9 | ||
| 860.1-0530-016A0-GM | ● | ● | ● | ○ | ○ | ● | 5.30 | 16.80 | 28.00 | 66.00 | 6.00 | 140.00 | 65.10 | 0.90 | 3.17 | h6 | H9 |
| 860.1-0530-027A0-GM | ● | ● | ○ | ○ | 5.30 | 27.40 | 44.00 | 82.00 | 6.00 | 140.00 | 81.10 | 0.90 | 5.17 | h6 | H9 | ||
| 860.1-0540-016A0-GM | ● | ● | ● | ○ | ○ | ● | 5.40 | 17.10 | 28.00 | 66.00 | 6.00 | 140.00 | 65.10 | 0.90 | 3.17 | h6 | H9 |
| 860.1-0550-016A0-GM | ● | ● | ● | ○ | ○ | ● | 5.50 | 17.50 | 28.00 | 66.00 | 6.00 | 140.00 | 65.10 | 0.90 | 3.18 | h6 | H9 |
| 860.1-0550-028A0-GM | ● | ● | ○ | ○ | 5.50 | 28.50 | 44.00 | 82.00 | 6.00 | 140.00 | 81.10 | 0.90 | 5.18 | h6 | H9 | ||
| 860.1-0560-016A0-GM | ● | ● | ● | ○ | ○ | ● | 5.60 | 17.80 | 28.00 | 66.00 | 6.00 | 140.00 | 65.00 | 1.00 | 3.18 | h6 | H9 |
| 860.1-0560-029A0-GM | ● | ● | ○ | ○ | 5.60 | 29.00 | 44.00 | 82.00 | 6.00 | 140.00 | 81.00 | 1.00 | 5.18 | h6 | H9 | ||
| 860.1-0580-016A0-GM | ● | ● | ● | ○ | ○ | ● | 5.80 | 18.40 | 28.00 | 66.00 | 6.00 | 140.00 | 65.00 | 1.00 | 3.17 | h6 | H9 |
| 860.1-0590-030A0-GM | ● | ● | ○ | ○ | 5.90 | 30.50 | 44.00 | 82.00 | 6.00 | 140.00 | 81.00 | 1.00 | 5.17 | h6 | H9 | ||
| 860.1-0610-019A0-GM | ● | ● | ● | ○ | ○ | ● | 6.10 | 19.40 | 34.00 | 79.00 | 8.00 | 140.00 | 78.00 | 1.00 | 3.18 | h6 | H9 |
| 860.1-0610-031A0-GM | ● | ● | ○ | ○ | 6.10 | 31.60 | 53.00 | 91.00 | 8.00 | 140.00 | 90.00 | 1.00 | 5.18 | h6 | H9 | ||
| 860.1-0620-019A0-GM | ● | ● | ● | ○ | ○ | ● | 6.20 | 19.70 | 34.00 | 79.00 | 8.00 | 140.00 | 77.90 | 1.10 | 3.18 | h6 | H9 |
| 860.1-0620-032A0-GM | ● | ● | ○ | ○ | 6.20 | 32.10 | 53.00 | 91.00 | 8.00 | 140.00 | 89.90 | 1.10 | 5.18 | h6 | H9 | ||
| 860.1-0630-020A0-GM | ● | ● | ● | ○ | ○ | ● | 6.30 | 20.00 | 34.00 | 79.00 | 8.00 | 140.00 | 77.90 | 1.10 | 3.17 | h6 | H9 |
| 860.1-0630-032A0-GM | ● | ● | ○ | ○ | 6.30 | 32.60 | 53.00 | 91.00 | 8.00 | 140.00 | 89.90 | 1.10 | 5.17 | h6 | H9 | ||
| 860.1-0640-033A0-GM | ● | ● | ○ | ○ | 6.40 | 33.10 | 53.00 | 91.00 | 8.00 | 140.00 | 89.90 | 1.10 | 5.17 | h6 | H9 |
● = первый выбор ○ = хороший выбор
