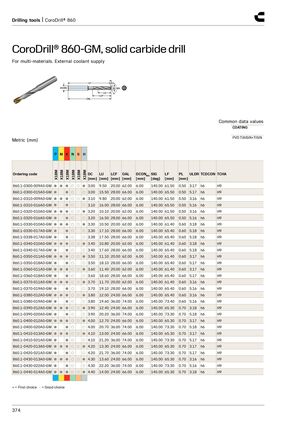

Инструмент для сверления | CoroDrill® 860
CoroDrill® 860-GM, сплошное твердосплавное сверло
Для мультиматериалов. Внешняя подача СОЖ.
Общие значения данных
ПОКРЫТИЕ: PVD TiAlSiN+TiSiN
Метрическая система (мм)
| Код заказа | P | M | K | N | S | H | DC [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | ULDR | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 860.1-0300-009A0-GM | ● | ● | ● | ○ | ○ | ● | 3.00 | 9.50 | 20.00 | 62.00 | 6.00 | 140.00 | 61.50 | 0.50 | 3.17 | h6 | H9 |
| 860.1-0300-015A0-GM | ● | ● | ○ | ○ | 3.00 | 15.50 | 28.00 | 66.00 | 6.00 | 140.00 | 65.50 | 0.50 | 5.17 | h6 | H9 | ||
| 860.1-0310-009A0-GM | ● | ● | ● | ○ | ○ | ● | 3.10 | 9.80 | 20.00 | 62.00 | 6.00 | 140.00 | 61.50 | 0.50 | 3.16 | h6 | H9 |
| 860.1-0310-016A0-GM | ● | ● | ○ | ○ | 3.10 | 16.00 | 28.00 | 66.00 | 6.00 | 140.00 | 65.50 | 0.50 | 5.16 | h6 | H9 | ||
| 860.1-0320-010A0-GM | ● | ● | ● | ○ | ○ | ● | 3.20 | 10.10 | 20.00 | 62.00 | 6.00 | 140.00 | 61.50 | 0.50 | 3.16 | h6 | H9 |
| 860.1-0320-016A0-GM | ● | ● | ○ | ○ | 3.20 | 16.50 | 28.00 | 66.00 | 6.00 | 140.00 | 65.50 | 0.50 | 5.16 | h6 | H9 | ||
| 860.1-0330-010A0-GM | ● | ● | ● | ○ | ○ | ● | 3.30 | 10.50 | 20.00 | 62.00 | 6.00 | 140.00 | 61.40 | 0.60 | 3.18 | h6 | H9 |
| 860.1-0330-017A0-GM | ● | ● | ○ | ○ | 3.30 | 17.10 | 28.00 | 66.00 | 6.00 | 140.00 | 65.40 | 0.60 | 5.18 | h6 | H9 | ||
| 860.1-0338-017A0-GM | ● | ● | ○ | ○ | 3.38 | 17.50 | 28.00 | 66.00 | 6.00 | 140.00 | 65.40 | 0.60 | 5.18 | h6 | H9 | ||
| 860.1-0340-010A0-GM | ● | ● | ● | ○ | ○ | ● | 3.40 | 10.80 | 20.00 | 62.00 | 6.00 | 140.00 | 61.40 | 0.60 | 3.18 | h6 | H9 |
| 860.1-0340-017A0-GM | ● | ● | ○ | ○ | 3.40 | 17.60 | 28.00 | 66.00 | 6.00 | 140.00 | 65.40 | 0.60 | 5.18 | h6 | H9 | ||
| 860.1-0350-011A0-GM | ● | ● | ● | ○ | ○ | ● | 3.50 | 11.10 | 20.00 | 62.00 | 6.00 | 140.00 | 61.40 | 0.60 | 3.17 | h6 | H9 |
| 860.1-0350-018A0-GM | ● | ● | ○ | ○ | 3.50 | 18.10 | 28.00 | 66.00 | 6.00 | 140.00 | 65.40 | 0.60 | 5.17 | h6 | H9 | ||
| 860.1-0360-011A0-GM | ● | ● | ● | ○ | ○ | ● | 3.60 | 11.40 | 20.00 | 62.00 | 6.00 | 140.00 | 61.40 | 0.60 | 3.17 | h6 | H9 |
| 860.1-0360-018A0-GM | ● | ● | ○ | ○ | 3.60 | 18.60 | 28.00 | 66.00 | 6.00 | 140.00 | 65.40 | 0.60 | 5.17 | h6 | H9 | ||
| 860.1-0370-011A0-GM | ● | ● | ● | ○ | ○ | ● | 3.70 | 11.70 | 20.00 | 62.00 | 6.00 | 140.00 | 61.40 | 0.60 | 3.16 | h6 | H9 |
| 860.1-0370-019A0-GM | ● | ● | ○ | ○ | 3.70 | 19.10 | 28.00 | 66.00 | 6.00 | 140.00 | 65.40 | 0.60 | 5.16 | h6 | H9 | ||
| 860.1-0380-012A0-GM | ● | ● | ● | ○ | ○ | ● | 3.80 | 12.00 | 24.00 | 66.00 | 6.00 | 140.00 | 65.40 | 0.60 | 3.16 | h6 | H9 |
| 860.1-0380-019A0-GM | ● | ● | ○ | ○ | 3.80 | 19.60 | 36.00 | 74.00 | 6.00 | 140.00 | 73.40 | 0.60 | 5.16 | h6 | H9 | ||
| 860.1-0390-012A0-GM | ● | ● | ● | ○ | ○ | ● | 3.90 | 12.40 | 24.00 | 66.00 | 6.00 | 140.00 | 65.30 | 0.70 | 3.18 | h6 | H9 |
| 860.1-0390-020A0-GM | ● | ● | ○ | ○ | 3.90 | 20.20 | 36.00 | 74.00 | 6.00 | 140.00 | 73.30 | 0.70 | 5.18 | h6 | H9 | ||
| 860.1-0400-012A0-GM | ● | ● | ● | ○ | ○ | ● | 4.00 | 12.70 | 24.00 | 66.00 | 6.00 | 140.00 | 65.30 | 0.70 | 3.17 | h6 | H9 |
| 860.1-0400-020A0-GM | ● | ● | ○ | ○ | 4.00 | 20.70 | 36.00 | 74.00 | 6.00 | 140.00 | 73.30 | 0.70 | 5.18 | h6 | H9 | ||
| 860.1-0410-013A0-GM | ● | ● | ● | ○ | ○ | ● | 4.10 | 13.00 | 24.00 | 66.00 | 6.00 | 140.00 | 65.30 | 0.70 | 3.17 | h6 | H9 |
| 860.1-0410-021A0-GM | ● | ● | ○ | ○ | 4.10 | 21.20 | 36.00 | 74.00 | 6.00 | 140.00 | 73.30 | 0.70 | 5.17 | h6 | H9 | ||
| 860.1-0420-013A0-GM | ● | ● | ● | ○ | ○ | ● | 4.20 | 13.30 | 24.00 | 66.00 | 6.00 | 140.00 | 65.30 | 0.70 | 3.17 | h6 | H9 |
| 860.1-0420-021A0-GM | ● | ● | ○ | ○ | 4.20 | 21.70 | 36.00 | 74.00 | 6.00 | 140.00 | 73.30 | 0.70 | 5.17 | h6 | H9 | ||
| 860.1-0430-013A0-GM | ● | ● | ● | ○ | ○ | ● | 4.30 | 13.60 | 24.00 | 66.00 | 6.00 | 140.00 | 65.30 | 0.70 | 3.16 | h6 | H9 |
| 860.1-0430-022A0-GM | ● | ● | ○ | ○ | 4.30 | 22.20 | 36.00 | 74.00 | 6.00 | 140.00 | 73.30 | 0.70 | 5.16 | h6 | H9 | ||
| 860.1-0440-014A0-GM | ● | ● | ● | ○ | ○ | ● | 4.40 | 14.00 | 24.00 | 66.00 | 6.00 | 140.00 | 65.30 | 0.70 | 3.18 | h6 | H9 |
● = первый выбор ○ = хороший выбор
