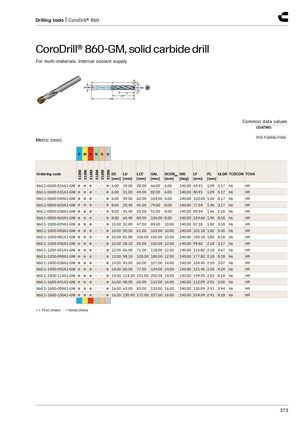

Инструмент для сверления | CoroDrill® 860
CoroDrill® 860-GM, сплошное твердосплавное сверло
Для мультиматериалов. Внутренняя подача СОЖ.
Общие значения данных
ПОКРЫТИЕ: PVD TiAlSiN+TiSiN
Метрическая система (мм)
| Код заказа | P | M | K | N | S | H | DC [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | ULDR | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 860.1-0600-016A1-GM | ● | ● | ● | ○ | ○ | ● | 6.00 | 19.00 | 28.00 | 66.00 | 6.00 | 140.00 | 64.91 | 1.09 | 3.17 | h6 | H9 |
| 860.1-0600-031A1-GM | ● | ● | ● | ○ | ○ | ● | 6.00 | 31.00 | 44.00 | 82.00 | 6.00 | 140.00 | 80.91 | 1.09 | 5.17 | h6 | H9 |
| 860.1-0600-049A1-GM | ● | ● | ● | ○ | ○ | ● | 6.00 | 49.00 | 62.00 | 104.00 | 6.00 | 140.00 | 103.00 | 1.00 | 8.17 | h6 | H9 |
| 860.1-0800-025A1-GM | ● | ● | ● | ○ | ○ | ● | 8.00 | 25.40 | 41.00 | 79.00 | 8.00 | 140.00 | 77.54 | 1.46 | 3.17 | h6 | H9 |
| 860.1-0800-038A1-GM | ● | ● | ● | ○ | ○ | ● | 8.00 | 41.40 | 53.00 | 91.00 | 8.00 | 140.00 | 89.54 | 1.46 | 5.18 | h6 | H9 |
| 860.1-0800-065A1-GM | ● | ● | ● | ○ | ○ | ● | 8.00 | 65.40 | 84.00 | 126.00 | 8.00 | 140.00 | 124.60 | 1.40 | 8.18 | h6 | H9 |
| 860.1-1000-029A1-GM | ● | ● | ● | ○ | ○ | ● | 10.00 | 31.80 | 47.00 | 89.00 | 10.00 | 140.00 | 87.18 | 1.82 | 3.18 | h6 | H9 |
| 860.1-1000-043A1-GM | ● | ● | ● | ○ | ○ | ● | 10.00 | 50.00 | 61.00 | 103.00 | 10.00 | 140.00 | 101.18 | 1.82 | 5.00 | h6 | H9 |
| 860.1-1000-081A1-GM | ● | ● | ● | ○ | ○ | ● | 10.00 | 81.80 | 106.00 | 152.00 | 10.00 | 140.00 | 150.18 | 1.82 | 8.18 | h6 | H9 |
| 860.1-1200-035A1-GM | ● | ● | ● | ○ | ○ | ● | 12.00 | 38.10 | 55.00 | 102.00 | 12.00 | 140.00 | 99.82 | 2.18 | 3.17 | h6 | H9 |
| 860.1-1200-051A1-GM | ● | ● | ● | ○ | ○ | ● | 12.00 | 56.00 | 71.00 | 118.00 | 12.00 | 140.00 | 115.82 | 2.18 | 4.67 | h6 | H9 |
| 860.1-1200-098A1-GM | ● | ● | ● | ○ | ○ | ● | 12.00 | 98.10 | 128.00 | 180.00 | 12.00 | 140.00 | 177.82 | 2.18 | 8.18 | h6 | H9 |
| 860.1-1400-038A1-GM | ● | ● | ● | ○ | ○ | ● | 14.00 | 43.00 | 60.00 | 107.00 | 14.00 | 140.00 | 104.45 | 2.55 | 3.07 | h6 | H9 |
| 860.1-1400-055A1-GM | ● | ● | ● | ○ | ○ | ● | 14.00 | 60.00 | 77.00 | 124.00 | 14.00 | 140.00 | 121.45 | 2.55 | 4.29 | h6 | H9 |
| 860.1-1400-114A1-GM | ● | ● | ● | ○ | ○ | ● | 14.00 | 114.50 | 151.00 | 202.00 | 14.00 | 140.00 | 199.45 | 2.55 | 8.18 | h6 | H9 |
| 860.1-1600-041A1-GM | ● | ● | ● | ○ | ○ | ● | 16.00 | 48.00 | 65.00 | 115.00 | 16.00 | 140.00 | 112.09 | 2.91 | 3.00 | h6 | H9 |
| 860.1-1600-059A1-GM | ● | ● | ● | ○ | ○ | ● | 16.00 | 63.00 | 83.00 | 133.00 | 16.00 | 140.00 | 130.09 | 2.91 | 3.94 | h6 | H9 |
| 860.1-1600-130A1-GM | ● | ● | ● | ○ | ○ | ● | 16.00 | 130.90 | 172.00 | 227.00 | 16.00 | 140.00 | 224.09 | 2.91 | 8.18 | h6 | H9 |
● = первый выбор ○ = хороший выбор
