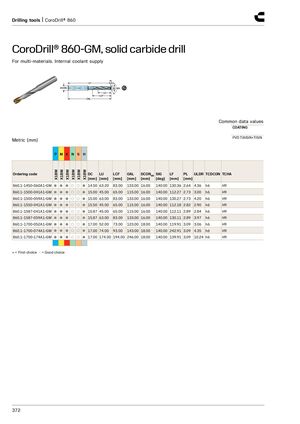

Инструмент для сверления | CoroDrill® 860
CoroDrill® 860-GM, сплошное твердосплавное сверло
Для мультиматериалов. Внутренняя подача СОЖ.
Общие значения данных
ПОКРЫТИЕ: PVD TiAlSiN+TiSiN
Метрическая система (мм)
| Код заказа | P | M | K | N | S | H | DC [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | ULDR | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 860.1-1450-060A1-GM | ● | ● | ● | ○ | ○ | ● | 14.50 | 63.20 | 83.00 | 133.00 | 16.00 | 140.00 | 130.36 | 2.64 | 4.36 | h6 | H9 |
| 860.1-1500-041A1-GM | ● | ● | ● | ○ | ○ | ● | 15.00 | 45.00 | 65.00 | 115.00 | 16.00 | 140.00 | 112.27 | 2.73 | 3.00 | h6 | H9 |
| 860.1-1500-059A1-GM | ● | ● | ● | ○ | ○ | ● | 15.00 | 63.00 | 83.00 | 133.00 | 16.00 | 140.00 | 130.27 | 2.73 | 4.20 | h6 | H9 |
| 860.1-1550-041A1-GM | ● | ● | ● | ○ | ○ | ● | 15.50 | 45.00 | 65.00 | 115.00 | 16.00 | 140.00 | 112.18 | 2.82 | 2.90 | h6 | H9 |
| 860.1-1587-041A1-GM | ● | ● | ● | ○ | ○ | ● | 15.87 | 45.00 | 65.00 | 115.00 | 16.00 | 140.00 | 112.11 | 2.89 | 2.84 | h6 | H9 |
| 860.1-1587-059A1-GM | ● | ● | ● | ○ | ○ | ● | 15.87 | 63.00 | 83.00 | 133.00 | 16.00 | 140.00 | 130.11 | 2.89 | 3.97 | h6 | H9 |
| 860.1-1700-052A1-GM | ● | ● | ● | ○ | ○ | ● | 17.00 | 52.00 | 73.00 | 123.00 | 18.00 | 140.00 | 119.91 | 3.09 | 3.06 | h6 | H9 |
| 860.1-1700-074A1-GM | ● | ● | ● | ○ | ○ | ● | 17.00 | 74.00 | 93.00 | 143.00 | 18.00 | 140.00 | 242.91 | 3.09 | 4.35 | h6 | H9 |
| 860.1-1700-174A1-GM | ● | ● | ● | ○ | ○ | ● | 17.00 | 174.00 | 194.00 | 246.00 | 18.00 | 140.00 | 139.91 | 3.09 | 10.24 | h6 | H9 |
● = первый выбор ○ = хороший выбор
