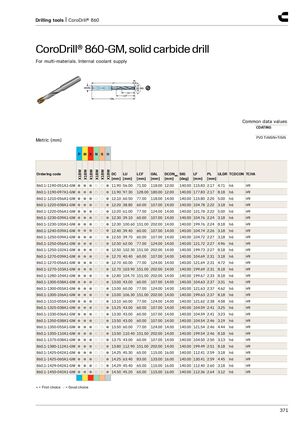

Инструмент для сверления | CoroDrill® 860
CoroDrill® 860-GM, сплошное твердосплавное сверло
Для мультиматериалов. Внутренняя подача СОЖ.
Общие значения данных
ПОКРЫТИЕ: PVD TiAlSiN+TiSiN
Метрическая система (мм)
| Код заказа | P | M | K | N | S | H | DC [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | ULDR | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 860.1-1190-051A1-GM | ● | ● | ● | ○ | ○ | ● | 11.90 | 56.00 | 71.00 | 118.00 | 12.00 | 140.00 | 115.83 | 2.17 | 4.71 | h6 | H9 |
| 860.1-1190-097A1-GM | ● | ● | ● | ○ | ○ | ● | 11.90 | 97.30 | 128.00 | 180.00 | 12.00 | 140.00 | 177.83 | 2.17 | 8.18 | h6 | H9 |
| 860.1-1210-056A1-GM | ● | ● | ● | ○ | ○ | ● | 12.10 | 60.50 | 77.00 | 118.00 | 14.00 | 140.00 | 115.80 | 2.20 | 5.00 | h6 | H9 |
| 860.1-1220-038A1-GM | ● | ● | ● | ○ | ○ | ● | 12.20 | 38.80 | 60.00 | 107.00 | 14.00 | 140.00 | 104.78 | 2.22 | 3.18 | h6 | H9 |
| 860.1-1220-056A1-GM | ● | ● | ● | ○ | ○ | ● | 12.20 | 61.00 | 77.00 | 124.00 | 14.00 | 140.00 | 121.78 | 2.22 | 5.00 | h6 | H9 |
| 860.1-1230-039A1-GM | ● | ● | ● | ○ | ○ | ● | 12.30 | 39.10 | 60.00 | 107.00 | 14.00 | 140.00 | 104.76 | 2.24 | 3.18 | h6 | H9 |
| 860.1-1230-100A1-GM | ● | ● | ● | ○ | ○ | ● | 12.30 | 100.60 | 151.00 | 202.00 | 14.00 | 140.00 | 199.76 | 2.24 | 8.18 | h6 | H9 |
| 860.1-1240-039A1-GM | ● | ● | ● | ○ | ○ | ● | 12.40 | 39.40 | 60.00 | 107.00 | 14.00 | 140.00 | 104.74 | 2.26 | 3.18 | h6 | H9 |
| 860.1-1250-039A1-GM | ● | ● | ● | ○ | ○ | ● | 12.50 | 39.70 | 60.00 | 107.00 | 14.00 | 140.00 | 104.72 | 2.27 | 3.18 | h6 | H9 |
| 860.1-1250-056A1-GM | ● | ● | ● | ○ | ○ | ● | 12.50 | 62.00 | 77.00 | 124.00 | 14.00 | 140.00 | 121.72 | 2.27 | 4.96 | h6 | H9 |
| 860.1-1250-102A1-GM | ● | ● | ● | ○ | ○ | ● | 12.50 | 102.30 | 151.00 | 202.00 | 14.00 | 140.00 | 199.73 | 2.27 | 8.18 | h6 | H9 |
| 860.1-1270-039A1-GM | ● | ● | ● | ○ | ○ | ● | 12.70 | 40.40 | 60.00 | 107.00 | 14.00 | 140.00 | 104.69 | 2.31 | 3.18 | h6 | H9 |
| 860.1-1270-056A1-GM | ● | ● | ● | ○ | ○ | ● | 12.70 | 60.00 | 77.00 | 124.00 | 14.00 | 140.00 | 121.69 | 2.31 | 4.72 | h6 | H9 |
| 860.1-1270-103A1-GM | ● | ● | ● | ○ | ○ | ● | 12.70 | 103.90 | 151.00 | 202.00 | 14.00 | 140.00 | 199.69 | 2.31 | 8.18 | h6 | H9 |
| 860.1-1280-104A1-GM | ● | ● | ● | ○ | ○ | ● | 12.80 | 104.70 | 151.00 | 202.00 | 14.00 | 140.00 | 199.67 | 2.33 | 8.18 | h6 | H9 |
| 860.1-1300-038A1-GM | ● | ● | ● | ○ | ○ | ● | 13.00 | 43.00 | 60.00 | 107.00 | 14.00 | 140.00 | 104.63 | 2.37 | 3.31 | h6 | H9 |
| 860.1-1300-055A1-GM | ● | ● | ● | ○ | ○ | ● | 13.00 | 60.00 | 77.00 | 124.00 | 14.00 | 140.00 | 121.63 | 2.37 | 4.62 | h6 | H9 |
| 860.1-1300-106A1-GM | ● | ● | ● | ○ | ○ | ● | 13.00 | 106.30 | 151.00 | 202.00 | 14.00 | 140.00 | 199.63 | 2.37 | 8.18 | h6 | H9 |
| 860.1-1310-055A1-GM | ● | ● | ● | ○ | ○ | ● | 13.10 | 60.00 | 77.00 | 124.00 | 14.00 | 140.00 | 121.62 | 2.38 | 4.58 | h6 | H9 |
| 860.1-1325-038A1-GM | ● | ● | ● | ○ | ○ | ● | 13.25 | 43.00 | 60.00 | 107.00 | 14.00 | 140.00 | 104.59 | 2.41 | 3.25 | h6 | H9 |
| 860.1-1330-036A1-GM | ● | ● | ● | ○ | ○ | ● | 13.30 | 43.00 | 60.00 | 107.00 | 14.00 | 140.00 | 104.59 | 2.41 | 3.23 | h6 | H9 |
| 860.1-1350-038A1-GM | ● | ● | ● | ○ | ○ | ● | 13.50 | 43.00 | 60.00 | 107.00 | 14.00 | 140.00 | 104.54 | 2.46 | 3.19 | h6 | H9 |
| 860.1-1350-055A1-GM | ● | ● | ● | ○ | ○ | ● | 13.50 | 60.00 | 77.00 | 124.00 | 14.00 | 140.00 | 121.54 | 2.46 | 4.44 | h6 | H9 |
| 860.1-1350-110A1-GM | ● | ● | ● | ○ | ○ | ● | 13.50 | 110.40 | 151.00 | 202.00 | 14.00 | 140.00 | 199.54 | 2.46 | 8.18 | h6 | H9 |
| 860.1-1375-038A1-GM | ● | ● | ● | ○ | ○ | ● | 13.75 | 43.00 | 60.00 | 107.00 | 14.00 | 140.00 | 104.50 | 2.50 | 3.13 | h6 | H9 |
| 860.1-1380-112A1-GM | ● | ● | ● | ○ | ○ | ● | 13.80 | 112.90 | 151.00 | 202.00 | 14.00 | 140.00 | 199.49 | 2.51 | 8.18 | h6 | H9 |
| 860.1-1425-042A1-GM | ● | ● | ● | ○ | ○ | ● | 14.25 | 45.30 | 65.00 | 115.00 | 16.00 | 140.00 | 112.41 | 2.59 | 3.18 | h6 | H9 |
| 860.1-1425-060A1-GM | ● | ● | ● | ○ | ○ | ● | 14.25 | 63.40 | 83.00 | 133.00 | 16.00 | 140.00 | 130.41 | 2.59 | 4.45 | h6 | H9 |
| 860.1-1429-042A1-GM | ● | ● | ● | ○ | ○ | ● | 14.29 | 45.40 | 65.00 | 115.00 | 16.00 | 140.00 | 112.40 | 2.60 | 3.18 | h6 | H9 |
| 860.1-1450-042A1-GM | ● | ● | ● | ○ | ○ | ● | 14.50 | 45.20 | 65.00 | 115.00 | 16.00 | 140.00 | 112.36 | 2.64 | 3.12 | h6 | H9 |
● = первый выбор ○ = хороший выбор
