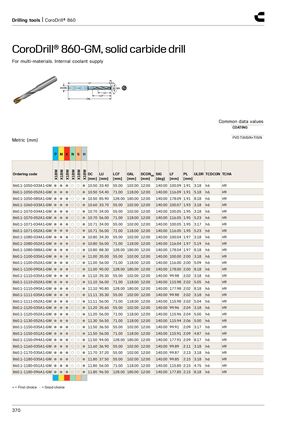

Инструменты для сверления | CoroDrill® 860
CoroDrill® 860-GM, цельнотвердосплавное сверло
Для многих материалов. Внутренняя подача СОЖ.
Общие значения данных
Покрытие: PVD TiAlSiN+TiSiN
Метрическая система (мм)
| Код заказа | P | M | K | N | S | H | DC [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | ULDR | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 860.1-1050-033A1-GM | ● | ● | ● | ○ | ○ | ● | 10.50 | 33.40 | 55.00 | 102.00 | 12.00 | 140.00 | 100.09 | 1.91 | 3.18 | h6 | H9 |
| 860.1-1050-052A1-GM | ● | ● | ● | ○ | ○ | ● | 10.50 | 54.40 | 71.00 | 118.00 | 12.00 | 140.00 | 116.09 | 1.91 | 5.18 | h6 | H9 |
| 860.1-1050-085A1-GM | ● | ● | ● | ○ | ○ | ● | 10.50 | 85.90 | 128.00 | 180.00 | 12.00 | 140.00 | 178.09 | 1.91 | 8.18 | h6 | H9 |
| 860.1-1060-033A1-GM | ● | ● | ● | ○ | ○ | ● | 10.60 | 33.70 | 55.00 | 102.00 | 12.00 | 140.00 | 100.07 | 1.93 | 3.18 | h6 | H9 |
| 860.1-1070-034A1-GM | ● | ● | ● | ○ | ○ | ● | 10.70 | 34.00 | 55.00 | 102.00 | 12.00 | 140.00 | 100.05 | 1.95 | 3.18 | h6 | H9 |
| 860.1-1070-052A1-GM | ● | ● | ● | ○ | ○ | ● | 10.70 | 56.00 | 71.00 | 118.00 | 12.00 | 140.00 | 116.05 | 1.95 | 5.23 | h6 | H9 |
| 860.1-1071-034A1-GM | ● | ● | ● | ○ | ○ | ● | 10.71 | 34.00 | 55.00 | 102.00 | 12.00 | 140.00 | 100.05 | 1.95 | 3.17 | h6 | H9 |
| 860.1-1071-052A1-GM | ● | ● | ● | ○ | ○ | ● | 10.71 | 56.00 | 71.00 | 118.00 | 12.00 | 140.00 | 116.05 | 1.95 | 5.23 | h6 | H9 |
| 860.1-1080-034A1-GM | ● | ● | ● | ○ | ○ | ● | 10.80 | 34.30 | 55.00 | 102.00 | 12.00 | 140.00 | 100.04 | 1.97 | 3.18 | h6 | H9 |
| 860.1-1080-052A1-GM | ● | ● | ● | ○ | ○ | ● | 10.80 | 56.00 | 71.00 | 118.00 | 12.00 | 140.00 | 116.04 | 1.97 | 5.19 | h6 | H9 |
| 860.1-1080-088A1-GM | ● | ● | ● | ○ | ○ | ● | 10.80 | 88.30 | 128.00 | 180.00 | 12.00 | 140.00 | 178.04 | 1.97 | 8.18 | h6 | H9 |
| 860.1-1100-035A1-GM | ● | ● | ● | ○ | ○ | ● | 11.00 | 35.00 | 55.00 | 102.00 | 12.00 | 140.00 | 100.00 | 2.00 | 3.18 | h6 | H9 |
| 860.1-1100-052A1-GM | ● | ● | ● | ○ | ○ | ● | 11.00 | 56.00 | 71.00 | 118.00 | 12.00 | 140.00 | 116.00 | 2.00 | 5.09 | h6 | H9 |
| 860.1-1100-090A1-GM | ● | ● | ● | ○ | ○ | ● | 11.00 | 90.00 | 128.00 | 180.00 | 12.00 | 140.00 | 178.00 | 2.00 | 8.18 | h6 | H9 |
| 860.1-1110-035A1-GM | ● | ● | ● | ○ | ○ | ● | 11.10 | 35.30 | 55.00 | 102.00 | 12.00 | 140.00 | 99.98 | 2.02 | 3.18 | h6 | H9 |
| 860.1-1110-052A1-GM | ● | ● | ● | ○ | ○ | ● | 11.10 | 56.00 | 71.00 | 118.00 | 12.00 | 140.00 | 115.98 | 2.02 | 5.05 | h6 | H9 |
| 860.1-1110-090A1-GM | ● | ● | ● | ○ | ○ | ● | 11.10 | 90.80 | 128.00 | 180.00 | 12.00 | 140.00 | 177.98 | 2.02 | 8.18 | h6 | H9 |
| 860.1-1111-035A1-GM | ● | ● | ● | ○ | ○ | ● | 11.11 | 35.30 | 55.00 | 102.00 | 12.00 | 140.00 | 99.98 | 2.02 | 3.18 | h6 | H9 |
| 860.1-1111-052A1-GM | ● | ● | ● | ○ | ○ | ● | 11.11 | 56.00 | 71.00 | 118.00 | 12.00 | 140.00 | 115.98 | 2.02 | 5.04 | h6 | H9 |
| 860.1-1120-035A1-GM | ● | ● | ● | ○ | ○ | ● | 11.20 | 35.60 | 55.00 | 102.00 | 12.00 | 140.00 | 99.96 | 2.04 | 3.18 | h6 | H9 |
| 860.1-1120-052A1-GM | ● | ● | ● | ○ | ○ | ● | 11.20 | 56.00 | 71.00 | 118.00 | 12.00 | 140.00 | 115.96 | 2.04 | 5.00 | h6 | H9 |
| 860.1-1130-052A1-GM | ● | ● | ● | ○ | ○ | ● | 11.30 | 56.50 | 71.00 | 118.00 | 12.00 | 140.00 | 115.94 | 2.06 | 5.00 | h6 | H9 |
| 860.1-1150-035A1-GM | ● | ● | ● | ○ | ○ | ● | 11.50 | 36.50 | 55.00 | 102.00 | 12.00 | 140.00 | 99.91 | 2.09 | 3.17 | h6 | H9 |
| 860.1-1150-051A1-GM | ● | ● | ● | ○ | ○ | ● | 11.50 | 56.00 | 71.00 | 118.00 | 12.00 | 140.00 | 115.91 | 2.09 | 4.87 | h6 | H9 |
| 860.1-1150-094A1-GM | ● | ● | ● | ○ | ○ | ● | 11.50 | 94.00 | 128.00 | 180.00 | 12.00 | 140.00 | 177.91 | 2.09 | 8.17 | h6 | H9 |
| 860.1-1160-035A1-GM | ● | ● | ● | ○ | ○ | ● | 11.60 | 36.90 | 55.00 | 102.00 | 12.00 | 140.00 | 99.89 | 2.11 | 3.18 | h6 | H9 |
| 860.1-1170-035A1-GM | ● | ● | ● | ○ | ○ | ● | 11.70 | 37.20 | 55.00 | 102.00 | 12.00 | 140.00 | 99.87 | 2.13 | 3.18 | h6 | H9 |
| 860.1-1180-035A1-GM | ● | ● | ● | ○ | ○ | ● | 11.80 | 37.50 | 55.00 | 102.00 | 12.00 | 140.00 | 99.85 | 2.15 | 3.18 | h6 | H9 |
| 860.1-1180-051A1-GM | ● | ● | ● | ○ | ○ | ● | 11.80 | 56.00 | 71.00 | 118.00 | 12.00 | 140.00 | 115.85 | 2.15 | 4.75 | h6 | H9 |
| 860.1-1180-096A1-GM | ● | ● | ● | ○ | ○ | ● | 11.80 | 96.50 | 128.00 | 180.00 | 12.00 | 140.00 | 177.85 | 2.15 | 8.18 | h6 | H9 |
● = Первый выбор ○ = Хороший выбор
