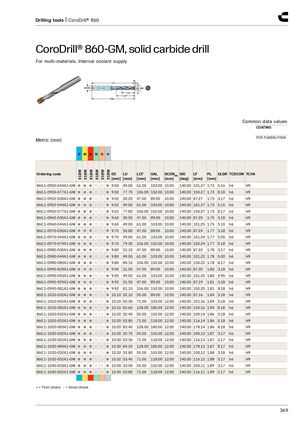

Инструменты для сверления | CoroDrill® 860
CoroDrill® 860-GM, цельнотвердосплавное сверло
Для многих материалов. Внутренняя подача СОЖ.
Общие значения данных
Покрытие: PVD TiAlSiN+TiSiN
Метрическая система (мм)
| Код заказа | P | M | K | N | S | H | DC [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | ULDR | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 860.1-0950-044A1-GM | ● | ● | ● | ○ | ○ | ● | 9.50 | 49.00 | 61.00 | 103.00 | 10.00 | 140.00 | 101.27 | 1.73 | 5.16 | h6 | H9 |
| 860.1-0950-077A1-GM | ● | ● | ● | ○ | ○ | ● | 9.50 | 77.70 | 106.00 | 152.00 | 10.00 | 140.00 | 150.27 | 1.73 | 8.18 | h6 | H9 |
| 860.1-0952-030A1-GM | ● | ● | ● | ○ | ○ | ● | 9.52 | 30.20 | 47.00 | 89.00 | 10.00 | 140.00 | 87.27 | 1.73 | 3.17 | h6 | H9 |
| 860.1-0952-044A1-GM | ● | ● | ● | ○ | ○ | ● | 9.52 | 49.00 | 61.00 | 103.00 | 10.00 | 140.00 | 101.27 | 1.73 | 5.15 | h6 | H9 |
| 860.1-0952-077A1-GM | ● | ● | ● | ○ | ○ | ● | 9.52 | 77.80 | 106.00 | 152.00 | 10.00 | 140.00 | 150.27 | 1.73 | 8.17 | h6 | H9 |
| 860.1-0960-030A1-GM | ● | ● | ● | ○ | ○ | ● | 9.60 | 30.50 | 47.00 | 89.00 | 10.00 | 140.00 | 87.25 | 1.75 | 3.18 | h6 | H9 |
| 860.1-0960-044A1-GM | ● | ● | ● | ○ | ○ | ● | 9.60 | 49.00 | 61.00 | 103.00 | 10.00 | 140.00 | 101.25 | 1.75 | 5.10 | h6 | H9 |
| 860.1-0970-030A1-GM | ● | ● | ● | ○ | ○ | ● | 9.70 | 30.80 | 47.00 | 89.00 | 10.00 | 140.00 | 87.24 | 1.77 | 3.18 | h6 | H9 |
| 860.1-0970-044A1-GM | ● | ● | ● | ○ | ○ | ● | 9.70 | 49.00 | 61.00 | 103.00 | 10.00 | 140.00 | 101.24 | 1.77 | 5.05 | h6 | H9 |
| 860.1-0970-079A1-GM | ● | ● | ● | ○ | ○ | ● | 9.70 | 79.30 | 106.00 | 152.00 | 10.00 | 140.00 | 150.24 | 1.77 | 8.18 | h6 | H9 |
| 860.1-0980-030A1-GM | ● | ● | ● | ○ | ○ | ● | 9.80 | 31.10 | 47.00 | 89.00 | 10.00 | 140.00 | 87.22 | 1.78 | 3.17 | h6 | H9 |
| 860.1-0980-044A1-GM | ● | ● | ● | ○ | ○ | ● | 9.80 | 49.00 | 61.00 | 103.00 | 10.00 | 140.00 | 101.22 | 1.78 | 5.00 | h6 | H9 |
| 860.1-0980-080A1-GM | ● | ● | ● | ○ | ○ | ● | 9.80 | 80.10 | 106.00 | 152.00 | 10.00 | 140.00 | 150.22 | 1.78 | 8.17 | h6 | H9 |
| 860.1-0990-029A1-GM | ● | ● | ● | ○ | ○ | ● | 9.90 | 31.50 | 47.00 | 89.00 | 10.00 | 140.00 | 87.20 | 1.80 | 3.18 | h6 | H9 |
| 860.1-0990-043A1-GM | ● | ● | ● | ○ | ○ | ● | 9.90 | 49.00 | 61.00 | 103.00 | 10.00 | 140.00 | 101.20 | 1.80 | 4.95 | h6 | H9 |
| 860.1-0992-029A1-GM | ● | ● | ● | ○ | ○ | ● | 9.92 | 31.50 | 47.00 | 89.00 | 10.00 | 140.00 | 87.19 | 1.81 | 3.18 | h6 | H9 |
| 860.1-0992-081A1-GM | ● | ● | ● | ○ | ○ | ● | 9.92 | 81.10 | 106.00 | 152.00 | 10.00 | 140.00 | 150.20 | 1.81 | 8.18 | h6 | H9 |
| 860.1-1010-032A1-GM | ● | ● | ● | ○ | ○ | ● | 10.10 | 32.10 | 55.00 | 89.00 | 12.00 | 140.00 | 87.16 | 1.84 | 3.18 | h6 | H9 |
| 860.1-1010-052A1-GM | ● | ● | ● | ○ | ○ | ● | 10.10 | 52.30 | 71.00 | 103.00 | 12.00 | 140.00 | 101.16 | 1.84 | 5.18 | h6 | H9 |
| 860.1-1010-082A1-GM | ● | ● | ● | ○ | ○ | ● | 10.10 | 82.60 | 128.00 | 180.00 | 12.00 | 140.00 | 150.16 | 1.84 | 8.18 | h6 | H9 |
| 860.1-1020-032A1-GM | ● | ● | ● | ○ | ○ | ● | 10.20 | 32.40 | 55.00 | 102.00 | 12.00 | 140.00 | 100.14 | 1.86 | 3.18 | h6 | H9 |
| 860.1-1020-052A1-GM | ● | ● | ● | ○ | ○ | ● | 10.20 | 52.80 | 71.00 | 118.00 | 12.00 | 140.00 | 116.14 | 1.86 | 5.18 | h6 | H9 |
| 860.1-1020-083A1-GM | ● | ● | ● | ○ | ○ | ● | 10.20 | 83.40 | 128.00 | 180.00 | 12.00 | 140.00 | 178.14 | 1.86 | 8.18 | h6 | H9 |
| 860.1-1030-032A1-GM | ● | ● | ● | ○ | ○ | ● | 10.30 | 32.70 | 55.00 | 102.00 | 12.00 | 140.00 | 100.13 | 1.87 | 3.17 | h6 | H9 |
| 860.1-1030-052A1-GM | ● | ● | ● | ○ | ○ | ● | 10.30 | 53.30 | 71.00 | 118.00 | 12.00 | 140.00 | 116.13 | 1.87 | 5.17 | h6 | H9 |
| 860.1-1030-084A1-GM | ● | ● | ● | ○ | ○ | ● | 10.30 | 84.20 | 128.00 | 180.00 | 12.00 | 140.00 | 178.13 | 1.87 | 8.17 | h6 | H9 |
| 860.1-1032-032A1-GM | ● | ● | ● | ○ | ○ | ● | 10.32 | 32.80 | 55.00 | 102.00 | 12.00 | 140.00 | 100.12 | 1.88 | 3.18 | h6 | H9 |
| 860.1-1032-052A1-GM | ● | ● | ● | ○ | ○ | ● | 10.32 | 53.40 | 71.00 | 118.00 | 12.00 | 140.00 | 116.12 | 1.88 | 5.17 | h6 | H9 |
| 860.1-1040-033A1-GM | ● | ● | ● | ○ | ○ | ● | 10.40 | 33.00 | 55.00 | 102.00 | 12.00 | 140.00 | 100.11 | 1.89 | 3.17 | h6 | H9 |
| 860.1-1040-052A1-GM | ● | ● | ● | ○ | ○ | ● | 10.40 | 53.80 | 71.00 | 118.00 | 12.00 | 140.00 | 116.11 | 1.89 | 5.17 | h6 | H9 |
● = Первый выбор ○ = Хороший выбор
