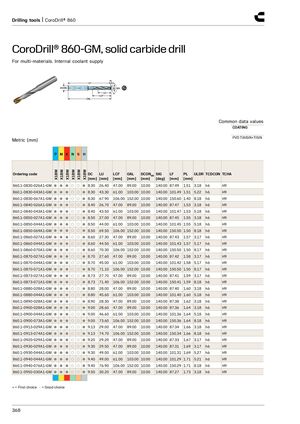

Инструмент для сверления | CoroDrill® 860
CoroDrill® 860-GM, монолитное твердосплавное сверло
Для мультиматериалов. Внутренняя подача СОЖ.
Покрытие: PVD TiAlSiN+TiSiN.
Во всех вариантах на этой странице для групп обрабатываемых материалов сверло является: P — первый выбор, M — первый выбор, K — первый выбор, N — хороший выбор, S — хороший выбор, H — первый выбор.
| Артикул | DC [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | ULDR | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 860.1-0830-026A1-GM | 8.30 | 26.40 | 47.00 | 89.00 | 10.00 | 140.00 | 87.49 | 1.51 | 3.18 | h6 | H9 |
| 860.1-0830-043A1-GM | 8.30 | 43.30 | 61.00 | 103.00 | 10.00 | 140.00 | 101.49 | 1.51 | 5.22 | h6 | H9 |
| 860.1-0830-067A1-GM | 8.30 | 67.90 | 106.00 | 152.00 | 10.00 | 140.00 | 150.60 | 1.40 | 8.18 | h6 | H9 |
| 860.1-0840-026A1-GM | 8.40 | 26.70 | 47.00 | 89.00 | 10.00 | 140.00 | 87.47 | 1.53 | 3.18 | h6 | H9 |
| 860.1-0840-043A1-GM | 8.40 | 43.50 | 61.00 | 103.00 | 10.00 | 140.00 | 101.47 | 1.53 | 5.18 | h6 | H9 |
| 860.1-0850-027A1-GM | 8.50 | 27.00 | 47.00 | 89.00 | 10.00 | 140.00 | 87.45 | 1.55 | 3.18 | h6 | H9 |
| 860.1-0850-044A1-GM | 8.50 | 44.00 | 61.00 | 103.00 | 10.00 | 140.00 | 101.45 | 1.55 | 5.18 | h6 | H9 |
| 860.1-0850-069A1-GM | 8.50 | 69.50 | 106.00 | 152.00 | 10.00 | 140.00 | 150.50 | 1.50 | 8.18 | h6 | H9 |
| 860.1-0860-027A1-GM | 8.60 | 27.30 | 47.00 | 89.00 | 10.00 | 140.00 | 87.43 | 1.57 | 3.17 | h6 | H9 |
| 860.1-0860-044A1-GM | 8.60 | 44.50 | 61.00 | 103.00 | 10.00 | 140.00 | 101.43 | 1.57 | 5.17 | h6 | H9 |
| 860.1-0860-070A1-GM | 8.60 | 70.30 | 106.00 | 152.00 | 10.00 | 140.00 | 150.50 | 1.50 | 8.17 | h6 | H9 |
| 860.1-0870-027A1-GM | 8.70 | 27.60 | 47.00 | 89.00 | 10.00 | 140.00 | 87.42 | 1.58 | 3.17 | h6 | H9 |
| 860.1-0870-044A1-GM | 8.70 | 45.00 | 61.00 | 103.00 | 10.00 | 140.00 | 101.42 | 1.58 | 5.17 | h6 | H9 |
| 860.1-0870-071A1-GM | 8.70 | 71.10 | 106.00 | 152.00 | 10.00 | 140.00 | 150.50 | 1.50 | 8.17 | h6 | H9 |
| 860.1-0873-027A1-GM | 8.73 | 27.70 | 47.00 | 89.00 | 10.00 | 140.00 | 87.41 | 1.59 | 3.17 | h6 | H9 |
| 860.1-0873-071A1-GM | 8.73 | 71.40 | 106.00 | 152.00 | 10.00 | 140.00 | 150.41 | 1.59 | 8.18 | h6 | H9 |
| 860.1-0880-028A1-GM | 8.80 | 28.00 | 47.00 | 89.00 | 10.00 | 140.00 | 87.40 | 1.60 | 3.18 | h6 | H9 |
| 860.1-0880-044A1-GM | 8.80 | 45.60 | 61.00 | 103.00 | 10.00 | 140.00 | 101.40 | 1.60 | 5.18 | h6 | H9 |
| 860.1-0890-028A1-GM | 8.90 | 28.30 | 47.00 | 89.00 | 10.00 | 140.00 | 87.38 | 1.62 | 3.18 | h6 | H9 |
| 860.1-0900-028A1-GM | 9.00 | 28.60 | 47.00 | 89.00 | 10.00 | 140.00 | 87.36 | 1.64 | 3.18 | h6 | H9 |
| 860.1-0900-044A1-GM | 9.00 | 46.60 | 61.00 | 103.00 | 10.00 | 140.00 | 101.36 | 1.64 | 5.18 | h6 | H9 |
| 860.1-0900-073A1-GM | 9.00 | 73.60 | 106.00 | 152.00 | 10.00 | 140.00 | 150.36 | 1.64 | 8.18 | h6 | H9 |
| 860.1-0913-029A1-GM | 9.13 | 29.00 | 47.00 | 89.00 | 10.00 | 140.00 | 87.34 | 1.66 | 3.18 | h6 | H9 |
| 860.1-0913-074A1-GM | 9.13 | 74.70 | 106.00 | 152.00 | 10.00 | 140.00 | 150.34 | 1.66 | 8.18 | h6 | H9 |
| 860.1-0920-029A1-GM | 9.20 | 29.20 | 47.00 | 89.00 | 10.00 | 140.00 | 87.33 | 1.67 | 3.17 | h6 | H9 |
| 860.1-0930-029A1-GM | 9.30 | 29.50 | 47.00 | 89.00 | 10.00 | 140.00 | 87.31 | 1.69 | 3.17 | h6 | H9 |
| 860.1-0930-044A1-GM | 9.30 | 49.00 | 61.00 | 103.00 | 10.00 | 140.00 | 101.31 | 1.69 | 5.27 | h6 | H9 |
| 860.1-0940-044A1-GM | 9.40 | 49.00 | 61.00 | 103.00 | 10.00 | 140.00 | 101.29 | 1.71 | 5.21 | h6 | H9 |
| 860.1-0940-076A1-GM | 9.40 | 76.90 | 106.00 | 152.00 | 10.00 | 140.00 | 150.29 | 1.71 | 8.18 | h6 | H9 |
| 860.1-0950-030A1-GM | 9.50 | 30.20 | 47.00 | 89.00 | 10.00 | 140.00 | 87.27 | 1.73 | 3.18 | h6 | H9 |
● = первый выбор ○ = хороший выбор
