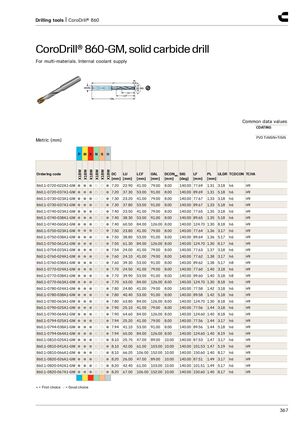

Инструменты для сверления | CoroDrill® 860
CoroDrill® 860-GM, цельнотвердосплавное сверло
Для многих материалов. Внутренняя подача СОЖ.
Общие значения данных
Покрытие: PVD TiAlSiN+TiSiN
Метрическая система (мм)
| Код заказа | P | M | K | N | S | H | DC [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | ULDR | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 860.1-0720-022A1-GM | ● | ● | ● | ○ | ○ | ● | 7.20 | 22.90 | 41.00 | 79.00 | 8.00 | 140.00 | 77.69 | 1.31 | 3.18 | h6 | H9 |
| 860.1-0720-037A1-GM | ● | ● | ● | ○ | ○ | ● | 7.20 | 37.30 | 53.00 | 91.00 | 8.00 | 140.00 | 89.69 | 1.31 | 5.18 | h6 | H9 |
| 860.1-0730-023A1-GM | ● | ● | ● | ○ | ○ | ● | 7.30 | 23.20 | 41.00 | 79.00 | 8.00 | 140.00 | 77.67 | 1.33 | 3.18 | h6 | H9 |
| 860.1-0730-037A1-GM | ● | ● | ● | ○ | ○ | ● | 7.30 | 37.80 | 53.00 | 91.00 | 8.00 | 140.00 | 89.67 | 1.33 | 5.18 | h6 | H9 |
| 860.1-0740-023A1-GM | ● | ● | ● | ○ | ○ | ● | 7.40 | 23.50 | 41.00 | 79.00 | 8.00 | 140.00 | 77.65 | 1.35 | 3.18 | h6 | H9 |
| 860.1-0740-038A1-GM | ● | ● | ● | ○ | ○ | ● | 7.40 | 38.30 | 53.00 | 91.00 | 8.00 | 140.00 | 89.65 | 1.35 | 5.18 | h6 | H9 |
| 860.1-0740-060A1-GM | ● | ● | ● | ○ | ○ | ● | 7.40 | 60.50 | 84.00 | 126.00 | 8.00 | 140.00 | 124.70 | 1.30 | 8.18 | h6 | H9 |
| 860.1-0750-023A1-GM | ● | ● | ● | ○ | ○ | ● | 7.50 | 23.80 | 41.00 | 79.00 | 8.00 | 140.00 | 77.64 | 1.36 | 3.17 | h6 | H9 |
| 860.1-0750-038A1-GM | ● | ● | ● | ○ | ○ | ● | 7.50 | 38.80 | 53.00 | 91.00 | 8.00 | 140.00 | 89.64 | 1.36 | 5.17 | h6 | H9 |
| 860.1-0750-061A1-GM | ● | ● | ● | ○ | ○ | ● | 7.50 | 61.30 | 84.00 | 126.00 | 8.00 | 140.00 | 124.70 | 1.30 | 8.17 | h6 | H9 |
| 860.1-0754-023A1-GM | ● | ● | ● | ○ | ○ | ● | 7.54 | 24.00 | 41.00 | 79.00 | 8.00 | 140.00 | 77.63 | 1.37 | 3.18 | h6 | H9 |
| 860.1-0760-024A1-GM | ● | ● | ● | ○ | ○ | ● | 7.60 | 24.10 | 41.00 | 79.00 | 8.00 | 140.00 | 77.62 | 1.38 | 3.17 | h6 | H9 |
| 860.1-0760-038A1-GM | ● | ● | ● | ○ | ○ | ● | 7.60 | 39.30 | 53.00 | 91.00 | 8.00 | 140.00 | 89.62 | 1.38 | 5.17 | h8 | H9 |
| 860.1-0770-024A1-GM | ● | ● | ● | ○ | ○ | ● | 7.70 | 24.50 | 41.00 | 79.00 | 8.00 | 140.00 | 77.60 | 1.40 | 3.18 | h6 | H9 |
| 860.1-0770-038A1-GM | ● | ● | ● | ○ | ○ | ● | 7.70 | 39.90 | 53.00 | 91.00 | 8.00 | 140.00 | 89.60 | 1.40 | 5.18 | h8 | H9 |
| 860.1-0770-063A1-GM | ● | ● | ● | ○ | ○ | ● | 7.70 | 63.00 | 84.00 | 126.00 | 8.00 | 140.00 | 124.70 | 1.30 | 8.18 | h6 | H9 |
| 860.1-0780-024A1-GM | ● | ● | ● | ○ | ○ | ● | 7.80 | 24.80 | 41.00 | 79.00 | 8.00 | 140.00 | 77.58 | 1.42 | 3.18 | h6 | H9 |
| 860.1-0780-038A1-GM | ● | ● | ● | ○ | ○ | ● | 7.80 | 40.40 | 53.00 | 91.00 | 8.00 | 140.00 | 89.58 | 1.42 | 5.18 | h6 | H9 |
| 860.1-0780-063A1-GM | ● | ● | ● | ○ | ○ | ● | 7.80 | 63.80 | 84.00 | 126.00 | 8.00 | 140.00 | 124.70 | 1.30 | 8.18 | h6 | H9 |
| 860.1-0790-025A1-GM | ● | ● | ● | ○ | ○ | ● | 7.90 | 25.10 | 41.00 | 79.00 | 8.00 | 140.00 | 77.56 | 1.44 | 3.18 | h6 | H9 |
| 860.1-0790-064A1-GM | ● | ● | ● | ○ | ○ | ● | 7.90 | 64.60 | 84.00 | 126.00 | 8.00 | 140.00 | 124.60 | 1.40 | 8.18 | h6 | H9 |
| 860.1-0794-025A1-GM | ● | ● | ● | ○ | ○ | ● | 7.94 | 25.20 | 41.00 | 79.00 | 8.00 | 140.00 | 77.56 | 1.44 | 3.17 | h6 | H9 |
| 860.1-0794-038A1-GM | ● | ● | ● | ○ | ○ | ● | 7.94 | 41.10 | 53.00 | 91.00 | 8.00 | 140.00 | 89.56 | 1.44 | 5.18 | h6 | H9 |
| 860.1-0794-064A1-GM | ● | ● | ● | ○ | ○ | ● | 7.94 | 65.00 | 84.00 | 126.00 | 8.00 | 140.00 | 124.60 | 1.40 | 8.19 | h6 | H9 |
| 860.1-0810-025A1-GM | ● | ● | ● | ○ | ○ | ● | 8.10 | 25.70 | 47.00 | 89.00 | 10.00 | 140.00 | 87.53 | 1.47 | 3.17 | h6 | H9 |
| 860.1-0810-041A1-GM | ● | ● | ● | ○ | ○ | ● | 8.10 | 42.00 | 61.00 | 103.00 | 10.00 | 140.00 | 101.53 | 1.47 | 5.19 | h6 | H9 |
| 860.1-0810-066A1-GM | ● | ● | ● | ○ | ○ | ● | 8.10 | 66.20 | 106.00 | 152.00 | 10.00 | 140.00 | 150.60 | 1.40 | 8.17 | h6 | H9 |
| 860.1-0820-026A1-GM | ● | ● | ● | ○ | ○ | ● | 8.20 | 26.00 | 47.00 | 89.00 | 10.00 | 140.00 | 87.51 | 1.49 | 3.17 | h6 | H9 |
| 860.1-0820-042A1-GM | ● | ● | ● | ○ | ○ | ● | 8.20 | 42.40 | 61.00 | 103.00 | 10.00 | 140.00 | 101.51 | 1.49 | 5.17 | h6 | H9 |
| 860.1-0820-067A1-GM | ● | ● | ● | ○ | ○ | ● | 8.20 | 67.00 | 106.00 | 152.00 | 10.00 | 140.00 | 150.60 | 1.40 | 8.17 | h6 | H9 |
● = Первый выбор ○ = Хороший выбор
