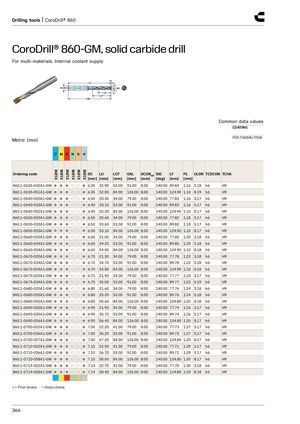

Инструменты для сверления | CoroDrill® 860
CoroDrill® 860-GM, цельнотвердосплавное сверло
Для многих материалов. Внутренняя подача СОЖ.
Общие значения данных
Покрытие: PVD TiAlSiN+TiSiN
Метрическая система (мм)
| Код заказа | P | M | K | N | S | H | DC [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | ULDR | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 860.1-0635-032A1-GM | ● | ● | ● | ○ | ○ | ● | 6.35 | 32.90 | 53.00 | 91.00 | 8.00 | 140.00 | 89.84 | 1.16 | 5.18 | h6 | H9 |
| 860.1-0635-051A1-GM | ● | ● | ● | ○ | ○ | ● | 6.35 | 52.00 | 84.00 | 126.00 | 8.00 | 140.00 | 124.90 | 1.10 | 8.19 | h6 | H9 |
| 860.1-0640-020A1-GM | ● | ● | ● | ○ | ○ | ● | 6.40 | 20.30 | 34.00 | 79.00 | 8.00 | 140.00 | 77.83 | 1.16 | 3.17 | h6 | H9 |
| 860.1-0640-033A1-GM | ● | ● | ● | ○ | ○ | ● | 6.40 | 33.10 | 53.00 | 91.00 | 8.00 | 140.00 | 89.83 | 1.16 | 5.17 | h6 | H9 |
| 860.1-0640-052A1-GM | ● | ● | ● | ○ | ○ | ● | 6.40 | 52.30 | 84.00 | 126.00 | 8.00 | 140.00 | 124.90 | 1.10 | 8.17 | h6 | H9 |
| 860.1-0650-020A1-GM | ● | ● | ● | ○ | ○ | ● | 6.50 | 20.60 | 34.00 | 79.00 | 8.00 | 140.00 | 77.82 | 1.18 | 3.17 | h6 | H9 |
| 860.1-0650-033A1-GM | ● | ● | ● | ○ | ○ | ● | 6.50 | 33.60 | 53.00 | 91.00 | 8.00 | 140.00 | 89.82 | 1.18 | 5.17 | h6 | H9 |
| 860.1-0650-053A1-GM | ● | ● | ● | ○ | ○ | ● | 6.50 | 53.10 | 84.00 | 126.00 | 8.00 | 140.00 | 124.90 | 1.10 | 8.17 | h6 | H9 |
| 860.1-0660-020A1-GM | ● | ● | ● | ○ | ○ | ● | 6.60 | 21.00 | 34.00 | 79.00 | 8.00 | 140.00 | 77.80 | 1.20 | 3.18 | h6 | H9 |
| 860.1-0660-034A1-GM | ● | ● | ● | ○ | ○ | ● | 6.60 | 34.20 | 53.00 | 91.00 | 8.00 | 140.00 | 89.80 | 1.20 | 5.18 | h6 | H9 |
| 860.1-0660-054A1-GM | ● | ● | ● | ○ | ○ | ● | 6.60 | 54.00 | 84.00 | 126.00 | 8.00 | 140.00 | 124.90 | 1.10 | 8.18 | h6 | H9 |
| 860.1-0670-020A1-GM | ● | ● | ● | ○ | ○ | ● | 6.70 | 21.30 | 34.00 | 79.00 | 8.00 | 140.00 | 77.78 | 1.22 | 3.18 | h6 | H9 |
| 860.1-0670-034A1-GM | ● | ● | ● | ○ | ○ | ● | 6.70 | 34.70 | 53.00 | 91.00 | 8.00 | 140.00 | 89.78 | 1.22 | 5.18 | h6 | H9 |
| 860.1-0670-054A1-GM | ● | ● | ● | ○ | ○ | ● | 6.70 | 54.80 | 84.00 | 126.00 | 8.00 | 140.00 | 124.90 | 1.10 | 8.18 | h6 | H9 |
| 860.1-0675-020A1-GM | ● | ● | ● | ○ | ○ | ● | 6.75 | 21.40 | 34.00 | 79.00 | 8.00 | 140.00 | 77.77 | 1.23 | 3.17 | h6 | H9 |
| 860.1-0675-034A1-GM | ● | ● | ● | ○ | ○ | ● | 6.75 | 35.00 | 53.00 | 91.00 | 8.00 | 140.00 | 89.77 | 1.23 | 5.19 | h6 | H9 |
| 860.1-0680-020A1-GM | ● | ● | ● | ○ | ○ | ● | 6.80 | 21.60 | 34.00 | 79.00 | 8.00 | 140.00 | 77.76 | 1.24 | 3.18 | h6 | H9 |
| 860.1-0680-035A1-GM | ● | ● | ● | ○ | ○ | ● | 6.80 | 35.20 | 53.00 | 91.00 | 8.00 | 140.00 | 89.76 | 1.24 | 5.18 | h6 | H9 |
| 860.1-0680-055A1-GM | ● | ● | ● | ○ | ○ | ● | 6.80 | 55.60 | 84.00 | 126.00 | 8.00 | 140.00 | 124.80 | 1.20 | 8.18 | h6 | H9 |
| 860.1-0690-020A1-GM | ● | ● | ● | ○ | ○ | ● | 6.90 | 21.90 | 34.00 | 79.00 | 8.00 | 140.00 | 77.74 | 1.26 | 3.17 | h6 | H9 |
| 860.1-0690-035A1-GM | ● | ● | ● | ○ | ○ | ● | 6.90 | 35.70 | 53.00 | 91.00 | 8.00 | 140.00 | 89.74 | 1.26 | 5.17 | h6 | H9 |
| 860.1-0690-056A1-GM | ● | ● | ● | ○ | ○ | ● | 6.90 | 56.40 | 84.00 | 126.00 | 8.00 | 140.00 | 124.80 | 1.20 | 8.17 | h6 | H9 |
| 860.1-0700-022A1-GM | ● | ● | ● | ○ | ○ | ● | 7.00 | 22.20 | 41.00 | 79.00 | 8.00 | 140.00 | 77.73 | 1.27 | 3.17 | h6 | H9 |
| 860.1-0700-036A1-GM | ● | ● | ● | ○ | ○ | ● | 7.00 | 36.20 | 53.00 | 91.00 | 8.00 | 140.00 | 89.73 | 1.27 | 5.17 | h6 | H9 |
| 860.1-0700-057A1-GM | ● | ● | ● | ○ | ○ | ● | 7.00 | 57.20 | 84.00 | 126.00 | 8.00 | 140.00 | 124.80 | 1.20 | 8.17 | h6 | H9 |
| 860.1-0710-022A1-GM | ● | ● | ● | ○ | ○ | ● | 7.10 | 22.50 | 41.00 | 79.00 | 8.00 | 140.00 | 77.71 | 1.29 | 3.17 | h6 | H9 |
| 860.1-0710-036A1-GM | ● | ● | ● | ○ | ○ | ● | 7.10 | 36.70 | 53.00 | 91.00 | 8.00 | 140.00 | 89.71 | 1.29 | 5.17 | h6 | H9 |
| 860.1-0710-058A1-GM | ● | ● | ● | ○ | ○ | ● | 7.10 | 58.00 | 84.00 | 126.00 | 8.00 | 140.00 | 124.80 | 1.20 | 8.17 | h6 | H9 |
| 860.1-0714-022A1-GM | ● | ● | ● | ○ | ○ | ● | 7.14 | 22.70 | 41.00 | 79.00 | 8.00 | 140.00 | 77.70 | 1.30 | 3.18 | h6 | H9 |
| 860.1-0714-058A1-GM | ● | ● | ● | ○ | ○ | ● | 7.14 | 58.40 | 84.00 | 126.00 | 8.00 | 140.00 | 124.80 | 1.20 | 8.18 | h6 | H9 |
● = Первый выбор ○ = Хороший выбор
