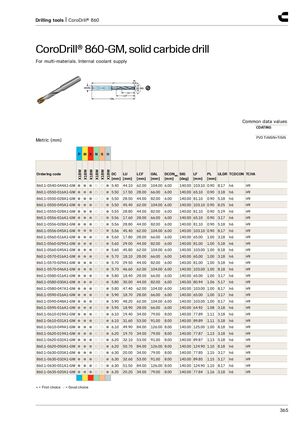

Инструменты для сверления | CoroDrill® 860
CoroDrill® 860-GM, цельнотвердосплавное сверло
Для многих материалов. Внутренняя подача СОЖ.
Общие значения данных
Покрытие: PVD TiAlSiN+TiSiN
Метрическая система (мм)
| Код заказа | P | M | K | N | S | H | DC [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | ULDR | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 860.1-0540-044A1-GM | ● | ● | ● | ○ | ○ | ● | 5.40 | 44.10 | 62.00 | 104.00 | 6.00 | 140.00 | 103.10 | 0.90 | 8.17 | h6 | H9 |
| 860.1-0550-016A1-GM | ● | ● | ● | ○ | ○ | ● | 5.50 | 17.50 | 28.00 | 66.00 | 6.00 | 140.00 | 65.10 | 0.90 | 3.18 | h6 | H9 |
| 860.1-0550-028A1-GM | ● | ● | ● | ○ | ○ | ● | 5.50 | 28.50 | 44.00 | 82.00 | 6.00 | 140.00 | 81.10 | 0.90 | 5.18 | h6 | H9 |
| 860.1-0550-045A1-GM | ● | ● | ● | ○ | ○ | ● | 5.50 | 45.40 | 62.00 | 104.00 | 6.00 | 140.00 | 103.10 | 0.90 | 8.25 | h6 | H9 |
| 860.1-0555-028A1-GM | ● | ● | ● | ○ | ○ | ● | 5.55 | 28.80 | 44.00 | 82.00 | 6.00 | 140.00 | 81.10 | 0.90 | 5.19 | h6 | H9 |
| 860.1-0556-016A1-GM | ● | ● | ● | ○ | ○ | ● | 5.56 | 17.60 | 28.00 | 66.00 | 6.00 | 140.00 | 65.10 | 0.90 | 3.17 | h6 | H9 |
| 860.1-0556-028A1-GM | ● | ● | ● | ○ | ○ | ● | 5.56 | 28.80 | 44.00 | 82.00 | 6.00 | 140.00 | 81.10 | 0.90 | 5.18 | h6 | H9 |
| 860.1-0556-045A1-GM | ● | ● | ● | ○ | ○ | ● | 5.56 | 45.40 | 62.00 | 104.00 | 6.00 | 140.00 | 103.10 | 0.90 | 8.17 | h6 | H9 |
| 860.1-0560-016A1-GM | ● | ● | ● | ○ | ○ | ● | 5.60 | 17.80 | 28.00 | 66.00 | 6.00 | 140.00 | 65.00 | 1.00 | 3.18 | h6 | H9 |
| 860.1-0560-029A1-GM | ● | ● | ● | ○ | ○ | ● | 5.60 | 29.00 | 44.00 | 82.00 | 6.00 | 140.00 | 81.00 | 1.00 | 5.18 | h6 | H9 |
| 860.1-0560-045A1-GM | ● | ● | ● | ○ | ○ | ● | 5.60 | 45.80 | 62.00 | 104.00 | 6.00 | 140.00 | 103.00 | 1.00 | 8.18 | h6 | H9 |
| 860.1-0570-016A1-GM | ● | ● | ● | ○ | ○ | ● | 5.70 | 18.10 | 28.00 | 66.00 | 6.00 | 140.00 | 65.00 | 1.00 | 3.18 | h6 | H9 |
| 860.1-0570-029A1-GM | ● | ● | ● | ○ | ○ | ● | 5.70 | 29.50 | 44.00 | 82.00 | 6.00 | 140.00 | 81.00 | 1.00 | 5.18 | h6 | H9 |
| 860.1-0570-046A1-GM | ● | ● | ● | ○ | ○ | ● | 5.70 | 46.60 | 62.00 | 104.00 | 6.00 | 140.00 | 103.00 | 1.00 | 8.18 | h6 | H9 |
| 860.1-0580-016A1-GM | ● | ● | ● | ○ | ○ | ● | 5.80 | 18.40 | 28.00 | 66.00 | 6.00 | 140.00 | 65.00 | 1.00 | 3.17 | h6 | H9 |
| 860.1-0580-030A1-GM | ● | ● | ● | ○ | ○ | ● | 5.80 | 30.00 | 44.00 | 82.00 | 6.00 | 140.00 | 80.94 | 1.06 | 5.17 | h6 | H9 |
| 860.1-0580-047A1-GM | ● | ● | ● | ○ | ○ | ● | 5.80 | 47.40 | 62.00 | 104.00 | 6.00 | 140.00 | 103.00 | 1.00 | 8.17 | h6 | H9 |
| 860.1-0590-016A1-GM | ● | ● | ● | ○ | ○ | ● | 5.90 | 18.70 | 28.00 | 66.00 | 6.00 | 140.00 | 65.00 | 1.00 | 3.17 | h6 | H9 |
| 860.1-0590-048A1-GM | ● | ● | ● | ○ | ○ | ● | 5.90 | 48.20 | 62.00 | 104.00 | 6.00 | 140.00 | 103.00 | 1.00 | 8.17 | h6 | H9 |
| 860.1-0595-016A1-GM | ● | ● | ● | ○ | ○ | ● | 5.95 | 18.90 | 28.00 | 66.00 | 6.00 | 140.00 | 64.92 | 1.08 | 3.18 | h6 | H9 |
| 860.1-0610-019A1-GM | ● | ● | ● | ○ | ○ | ● | 6.10 | 19.40 | 34.00 | 79.00 | 8.00 | 140.00 | 77.89 | 1.11 | 3.18 | h6 | H9 |
| 860.1-0610-031A1-GM | ● | ● | ● | ○ | ○ | ● | 6.10 | 31.60 | 53.00 | 91.00 | 8.00 | 140.00 | 89.89 | 1.11 | 5.18 | h6 | H9 |
| 860.1-0610-049A1-GM | ● | ● | ● | ○ | ○ | ● | 6.10 | 49.90 | 84.00 | 126.00 | 8.00 | 140.00 | 125.00 | 1.00 | 8.18 | h6 | H9 |
| 860.1-0620-019A1-GM | ● | ● | ● | ○ | ○ | ● | 6.20 | 19.70 | 34.00 | 79.00 | 8.00 | 140.00 | 77.87 | 1.13 | 3.18 | h6 | H9 |
| 860.1-0620-032A1-GM | ● | ● | ● | ○ | ○ | ● | 6.20 | 32.10 | 53.00 | 91.00 | 8.00 | 140.00 | 89.87 | 1.13 | 5.18 | h6 | H9 |
| 860.1-0620-050A1-GM | ● | ● | ● | ○ | ○ | ● | 6.20 | 50.70 | 84.00 | 126.00 | 8.00 | 140.00 | 124.90 | 1.10 | 8.18 | h6 | H9 |
| 860.1-0630-020A1-GM | ● | ● | ● | ○ | ○ | ● | 6.30 | 20.00 | 34.00 | 79.00 | 8.00 | 140.00 | 77.85 | 1.15 | 3.17 | h6 | H9 |
| 860.1-0630-032A1-GM | ● | ● | ● | ○ | ○ | ● | 6.30 | 32.60 | 53.00 | 91.00 | 8.00 | 140.00 | 89.85 | 1.15 | 5.17 | h6 | H9 |
| 860.1-0630-051A1-GM | ● | ● | ● | ○ | ○ | ● | 6.30 | 51.50 | 84.00 | 126.00 | 8.00 | 140.00 | 124.90 | 1.10 | 8.17 | h6 | H9 |
| 860.1-0635-020A1-GM | ● | ● | ● | ○ | ○ | ● | 6.35 | 20.20 | 34.00 | 79.00 | 8.00 | 140.00 | 77.84 | 1.16 | 3.18 | h6 | H9 |
● = Первый выбор ○ = Хороший выбор
