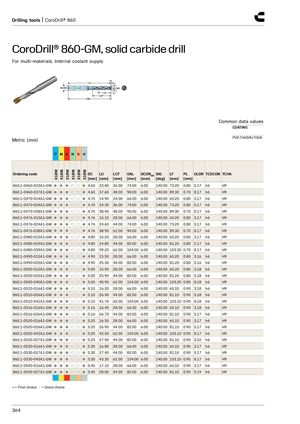

Инструменты для сверления | CoroDrill® 860
CoroDrill® 860-GM, цельнотвердосплавное сверло
Для многих материалов. Внутренняя подача СОЖ.
Общие значения данных
Покрытие: PVD TiAlSiN+TiSiN
Метрическая система (мм)
| Код заказа | P | M | K | N | S | H | DC [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | ULDR | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 860.1-0460-023A1-GM | ● | ● | ● | ○ | ○ | ● | 4.60 | 23.80 | 36.00 | 74.00 | 6.00 | 140.00 | 73.20 | 0.80 | 5.17 | h6 | H9 |
| 860.1-0460-037A1-GM | ● | ● | ● | ○ | ○ | ● | 4.60 | 37.60 | 48.00 | 90.00 | 6.00 | 140.00 | 89.30 | 0.70 | 8.17 | h6 | H9 |
| 860.1-0470-014A1-GM | ● | ● | ● | ○ | ○ | ● | 4.70 | 14.90 | 24.00 | 66.00 | 6.00 | 140.00 | 65.20 | 0.80 | 3.17 | h6 | H9 |
| 860.1-0470-024A1-GM | ● | ● | ● | ○ | ○ | ● | 4.70 | 24.30 | 36.00 | 74.00 | 6.00 | 140.00 | 73.20 | 0.80 | 5.17 | h6 | H9 |
| 860.1-0470-038A1-GM | ● | ● | ● | ○ | ○ | ● | 4.70 | 38.40 | 48.00 | 90.00 | 6.00 | 140.00 | 89.30 | 0.70 | 8.17 | h6 | H9 |
| 860.1-0476-015A1-GM | ● | ● | ● | ○ | ○ | ● | 4.76 | 15.10 | 28.00 | 66.00 | 6.00 | 140.00 | 65.20 | 0.80 | 3.17 | h6 | H9 |
| 860.1-0476-024A1-GM | ● | ● | ● | ○ | ○ | ● | 4.76 | 24.60 | 44.00 | 74.00 | 6.00 | 140.00 | 73.20 | 0.80 | 5.17 | h6 | H9 |
| 860.1-0476-038A1-GM | ● | ● | ● | ○ | ○ | ● | 4.76 | 38.90 | 62.00 | 90.00 | 6.00 | 140.00 | 89.30 | 0.70 | 8.17 | h6 | H9 |
| 860.1-0480-015A1-GM | ● | ● | ● | ○ | ○ | ● | 4.80 | 15.20 | 28.00 | 66.00 | 6.00 | 140.00 | 65.20 | 0.80 | 3.17 | h6 | H9 |
| 860.1-0480-024A1-GM | ● | ● | ● | ○ | ○ | ● | 4.80 | 24.80 | 44.00 | 82.00 | 6.00 | 140.00 | 81.20 | 0.80 | 5.17 | h6 | H9 |
| 860.1-0480-039A1-GM | ● | ● | ● | ○ | ○ | ● | 4.80 | 39.20 | 62.00 | 104.00 | 6.00 | 140.00 | 103.30 | 0.70 | 8.17 | h6 | H9 |
| 860.1-0490-015A1-GM | ● | ● | ● | ○ | ○ | ● | 4.90 | 15.50 | 28.00 | 66.00 | 6.00 | 140.00 | 65.20 | 0.80 | 3.16 | h6 | H9 |
| 860.1-0490-025A1-GM | ● | ● | ● | ○ | ○ | ● | 4.90 | 25.30 | 44.00 | 82.00 | 6.00 | 140.00 | 81.20 | 0.80 | 5.16 | h6 | H9 |
| 860.1-0500-015A1-GM | ● | ● | ● | ○ | ○ | ● | 5.00 | 15.90 | 28.00 | 66.00 | 6.00 | 140.00 | 65.20 | 0.80 | 3.18 | h6 | H9 |
| 860.1-0500-025A1-GM | ● | ● | ● | ○ | ○ | ● | 5.00 | 25.90 | 44.00 | 82.00 | 6.00 | 140.00 | 81.20 | 0.80 | 5.18 | h6 | H9 |
| 860.1-0500-040A1-GM | ● | ● | ● | ○ | ○ | ● | 5.00 | 40.90 | 62.00 | 104.00 | 6.00 | 140.00 | 103.20 | 0.80 | 8.18 | h6 | H9 |
| 860.1-0510-016A1-GM | ● | ● | ● | ○ | ○ | ● | 5.10 | 16.20 | 28.00 | 66.00 | 6.00 | 140.00 | 65.10 | 0.90 | 3.18 | h6 | H9 |
| 860.1-0510-026A1-GM | ● | ● | ● | ○ | ○ | ● | 5.10 | 26.40 | 44.00 | 82.00 | 6.00 | 140.00 | 81.10 | 0.90 | 5.18 | h6 | H9 |
| 860.1-0510-041A1-GM | ● | ● | ● | ○ | ○ | ● | 5.10 | 41.70 | 62.00 | 104.00 | 6.00 | 140.00 | 103.10 | 0.90 | 8.18 | h6 | H9 |
| 860.1-0516-016A1-GM | ● | ● | ● | ○ | ○ | ● | 5.16 | 16.40 | 28.00 | 66.00 | 6.00 | 140.00 | 65.10 | 0.90 | 3.18 | h6 | H9 |
| 860.1-0516-026A1-GM | ● | ● | ● | ○ | ○ | ● | 5.16 | 26.70 | 44.00 | 82.00 | 6.00 | 140.00 | 81.10 | 0.90 | 5.17 | h6 | H9 |
| 860.1-0520-016A1-GM | ● | ● | ● | ○ | ○ | ● | 5.20 | 16.50 | 28.00 | 66.00 | 6.00 | 140.00 | 65.10 | 0.90 | 3.17 | h6 | H9 |
| 860.1-0520-026A1-GM | ● | ● | ● | ○ | ○ | ● | 5.20 | 26.90 | 44.00 | 82.00 | 6.00 | 140.00 | 81.10 | 0.90 | 5.17 | h6 | H9 |
| 860.1-0520-042A1-GM | ● | ● | ● | ○ | ○ | ● | 5.20 | 42.50 | 62.00 | 104.00 | 6.00 | 140.00 | 103.10 | 0.90 | 8.17 | h6 | H9 |
| 860.1-0525-027A1-GM | ● | ● | ● | ○ | ○ | ● | 5.25 | 27.40 | 44.00 | 82.00 | 6.00 | 140.00 | 81.10 | 0.90 | 5.22 | h6 | H9 |
| 860.1-0530-016A1-GM | ● | ● | ● | ○ | ○ | ● | 5.30 | 16.80 | 28.00 | 66.00 | 6.00 | 140.00 | 65.10 | 0.90 | 3.17 | h6 | H9 |
| 860.1-0530-027A1-GM | ● | ● | ● | ○ | ○ | ● | 5.30 | 27.40 | 44.00 | 82.00 | 6.00 | 140.00 | 81.10 | 0.90 | 5.17 | h6 | H9 |
| 860.1-0530-043A1-GM | ● | ● | ● | ○ | ○ | ● | 5.30 | 43.30 | 62.00 | 104.00 | 6.00 | 140.00 | 103.10 | 0.90 | 8.17 | h6 | H9 |
| 860.1-0540-016A1-GM | ● | ● | ● | ○ | ○ | ● | 5.40 | 17.10 | 28.00 | 66.00 | 6.00 | 140.00 | 65.10 | 0.90 | 3.17 | h6 | H9 |
| 860.1-0540-027A1-GM | ● | ● | ● | ○ | ○ | ● | 5.40 | 28.00 | 44.00 | 82.00 | 6.00 | 140.00 | 81.10 | 0.90 | 5.19 | h6 | H9 |
● = Первый выбор ○ = Хороший выбор
