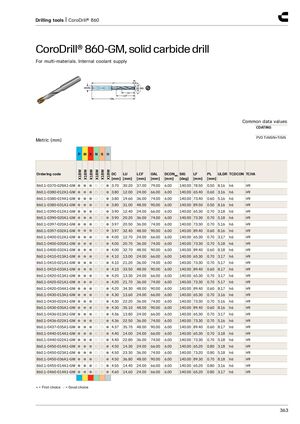

Инструменты для сверления | CoroDrill® 860
CoroDrill® 860-GM, сверло из твёрдого сплава
Для различных материалов. Внутренняя подача СОЖ.
Общие значения данных
Покрытие: PVD TiAlSiN+TiSiN
Метрическая система (мм). Группы обрабатываемых материалов: P M K N S H, вариант X1BM.
| Код заказа | P | M | K | N | S | H | DC [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | ULDR | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 860.1-0370-028A1-GM | ● | ● | ● | ○ | ○ | ● | 3.70 | 30.20 | 37.00 | 79.00 | 6.00 | 140.00 | 78.50 | 0.50 | 8.16 | h6 | H9 |
| 860.1-0380-012A1-GM | ● | ● | ● | ○ | ○ | ● | 3.80 | 12.00 | 24.00 | 66.00 | 6.00 | 140.00 | 65.40 | 0.60 | 3.16 | h6 | H9 |
| 860.1-0380-019A1-GM | ● | ● | ● | ○ | ○ | ● | 3.80 | 19.60 | 36.00 | 74.00 | 6.00 | 140.00 | 73.40 | 0.60 | 5.16 | h6 | H9 |
| 860.1-0380-031A1-GM | ● | ● | ● | ○ | ○ | ● | 3.80 | 31.00 | 48.00 | 90.00 | 6.00 | 140.00 | 89.50 | 0.50 | 8.16 | h6 | H9 |
| 860.1-0390-012A1-GM | ● | ● | ● | ○ | ○ | ● | 3.90 | 12.40 | 24.00 | 66.00 | 6.00 | 140.00 | 65.30 | 0.70 | 3.18 | h6 | H9 |
| 860.1-0390-020A1-GM | ● | ● | ● | ○ | ○ | ● | 3.90 | 20.20 | 36.00 | 74.00 | 6.00 | 140.00 | 73.30 | 0.70 | 5.18 | h6 | H9 |
| 860.1-0397-020A1-GM | ● | ● | ● | ○ | ○ | ● | 3.97 | 20.50 | 36.00 | 74.00 | 6.00 | 140.00 | 73.30 | 0.70 | 5.16 | h6 | H9 |
| 860.1-0397-032A1-GM | ● | ● | ● | ○ | ○ | ● | 3.97 | 32.40 | 48.00 | 90.00 | 6.00 | 140.00 | 89.40 | 0.60 | 8.16 | h6 | H9 |
| 860.1-0400-012A1-GM | ● | ● | ● | ○ | ○ | ● | 4.00 | 12.70 | 24.00 | 66.00 | 6.00 | 140.00 | 65.30 | 0.70 | 3.17 | h6 | H9 |
| 860.1-0400-020A1-GM | ● | ● | ● | ○ | ○ | ● | 4.00 | 20.70 | 36.00 | 74.00 | 6.00 | 140.00 | 73.30 | 0.70 | 5.18 | h6 | H9 |
| 860.1-0400-032A1-GM | ● | ● | ● | ○ | ○ | ● | 4.00 | 32.70 | 48.00 | 90.00 | 6.00 | 140.00 | 89.40 | 0.60 | 8.18 | h6 | H9 |
| 860.1-0410-013A1-GM | ● | ● | ● | ○ | ○ | ● | 4.10 | 13.00 | 24.00 | 66.00 | 6.00 | 140.00 | 65.30 | 0.70 | 3.17 | h6 | H9 |
| 860.1-0410-021A1-GM | ● | ● | ● | ○ | ○ | ● | 4.10 | 21.20 | 36.00 | 74.00 | 6.00 | 140.00 | 73.30 | 0.70 | 5.17 | h6 | H9 |
| 860.1-0410-033A1-GM | ● | ● | ● | ○ | ○ | ● | 4.10 | 33.50 | 48.00 | 90.00 | 6.00 | 140.00 | 89.40 | 0.60 | 8.17 | h6 | H9 |
| 860.1-0420-013A1-GM | ● | ● | ● | ○ | ○ | ● | 4.20 | 13.30 | 24.00 | 66.00 | 6.00 | 140.00 | 65.30 | 0.70 | 3.17 | h6 | H9 |
| 860.1-0420-021A1-GM | ● | ● | ● | ○ | ○ | ● | 4.20 | 21.70 | 36.00 | 74.00 | 6.00 | 140.00 | 73.30 | 0.70 | 5.17 | h6 | H9 |
| 860.1-0420-034A1-GM | ● | ● | ● | ○ | ○ | ● | 4.20 | 34.30 | 48.00 | 90.00 | 6.00 | 140.00 | 89.40 | 0.60 | 8.17 | h6 | H9 |
| 860.1-0430-013A1-GM | ● | ● | ● | ○ | ○ | ● | 4.30 | 13.60 | 24.00 | 66.00 | 6.00 | 140.00 | 65.30 | 0.70 | 3.16 | h6 | H9 |
| 860.1-0430-022A1-GM | ● | ● | ● | ○ | ○ | ● | 4.30 | 22.20 | 36.00 | 74.00 | 6.00 | 140.00 | 73.30 | 0.70 | 5.16 | h6 | H9 |
| 860.1-0430-035A1-GM | ● | ● | ● | ○ | ○ | ● | 4.30 | 35.10 | 48.00 | 90.00 | 6.00 | 140.00 | 89.40 | 0.60 | 8.16 | h6 | H9 |
| 860.1-0436-013A1-GM | ● | ● | ● | ○ | ○ | ● | 4.36 | 13.80 | 24.00 | 66.00 | 6.00 | 140.00 | 65.30 | 0.70 | 3.17 | h6 | H9 |
| 860.1-0436-022A1-GM | ● | ● | ● | ○ | ○ | ● | 4.36 | 22.50 | 36.00 | 74.00 | 6.00 | 140.00 | 73.30 | 0.70 | 5.16 | h6 | H9 |
| 860.1-0437-035A1-GM | ● | ● | ● | ○ | ○ | ● | 4.37 | 35.70 | 48.00 | 90.00 | 6.00 | 140.00 | 89.40 | 0.60 | 8.17 | h6 | H9 |
| 860.1-0440-014A1-GM | ● | ● | ● | ○ | ○ | ● | 4.40 | 14.00 | 24.00 | 66.00 | 6.00 | 140.00 | 65.30 | 0.70 | 3.18 | h6 | H9 |
| 860.1-0440-022A1-GM | ● | ● | ● | ○ | ○ | ● | 4.40 | 22.80 | 36.00 | 74.00 | 6.00 | 140.00 | 73.30 | 0.70 | 5.18 | h6 | H9 |
| 860.1-0450-014A1-GM | ● | ● | ● | ○ | ○ | ● | 4.50 | 14.30 | 24.00 | 66.00 | 6.00 | 140.00 | 65.20 | 0.80 | 3.18 | h6 | H9 |
| 860.1-0450-023A1-GM | ● | ● | ● | ○ | ○ | ● | 4.50 | 23.30 | 36.00 | 74.00 | 6.00 | 140.00 | 73.20 | 0.80 | 5.18 | h6 | H9 |
| 860.1-0450-036A1-GM | ● | ● | ● | ○ | ○ | ● | 4.50 | 36.80 | 48.00 | 90.00 | 6.00 | 140.00 | 89.30 | 0.70 | 8.18 | h6 | H9 |
| 860.1-0455-014A1-GM | ● | ● | ● | ○ | ○ | ● | 4.55 | 14.40 | 24.00 | 66.00 | 6.00 | 140.00 | 65.20 | 0.80 | 3.16 | h6 | H9 |
| 860.1-0460-014A1-GM | ● | ● | ● | ○ | ○ | ● | 4.60 | 14.60 | 24.00 | 66.00 | 6.00 | 140.00 | 65.20 | 0.80 | 3.17 | h6 | H9 |
● — первый выбор, ○ — хороший выбор
