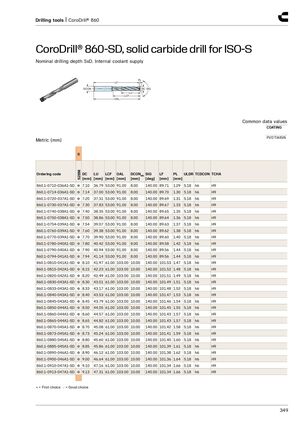

Инструменты для сверления | CoroDrill® 860
CoroDrill® 860-SD, монолитное твердосплавное сверло для ISO-S
Номинальная глубина сверления 5xD. Внутренняя подача СОЖ.
Покрытие: PVD TiAlSiN
| Ordering code | S | DC [mm] | LU [mm] | LCF [mm] | OAL [mm] | DCONMS [mm] | SIG [deg] | LF [mm] | PL [mm] | ULDR | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 860.1-0710-036A1-SD | ● | 7.10 | 36.79 | 53.00 | 91.00 | 8.00 | 140.00 | 89.71 | 1.29 | 5.18 | h6 | H9 |
| 860.1-0714-036A1-SD | ● | 7.14 | 37.00 | 53.00 | 91.00 | 8.00 | 140.00 | 89.70 | 1.30 | 5.18 | h6 | H9 |
| 860.1-0720-037A1-SD | ● | 7.20 | 37.31 | 53.00 | 91.00 | 8.00 | 140.00 | 89.69 | 1.31 | 5.18 | h6 | H9 |
| 860.1-0730-037A1-SD | ● | 7.30 | 37.83 | 53.00 | 91.00 | 8.00 | 140.00 | 89.67 | 1.33 | 5.18 | h6 | H9 |
| 860.1-0740-038A1-SD | ● | 7.40 | 38.35 | 53.00 | 91.00 | 8.00 | 140.00 | 89.65 | 1.35 | 5.18 | h6 | H9 |
| 860.1-0750-038A1-SD | ● | 7.50 | 38.86 | 53.00 | 91.00 | 8.00 | 140.00 | 89.64 | 1.36 | 5.18 | h6 | H9 |
| 860.1-0754-039A1-SD | ● | 7.54 | 39.07 | 53.00 | 91.00 | 8.00 | 140.00 | 89.63 | 1.37 | 5.18 | h6 | H9 |
| 860.1-0760-039A1-SD | ● | 7.60 | 39.38 | 53.00 | 91.00 | 8.00 | 140.00 | 89.62 | 1.38 | 5.18 | h6 | H9 |
| 860.1-0770-039A1-SD | ● | 7.70 | 39.90 | 53.00 | 91.00 | 8.00 | 140.00 | 89.60 | 1.40 | 5.18 | h6 | H9 |
| 860.1-0780-040A1-SD | ● | 7.80 | 40.42 | 53.00 | 91.00 | 8.00 | 140.00 | 89.58 | 1.42 | 5.18 | h6 | H9 |
| 860.1-0790-040A1-SD | ● | 7.90 | 40.94 | 53.00 | 91.00 | 8.00 | 140.00 | 89.56 | 1.44 | 5.18 | h6 | H9 |
| 860.1-0794-041A1-SD | ● | 7.94 | 41.14 | 53.00 | 91.00 | 8.00 | 140.00 | 89.56 | 1.44 | 5.18 | h6 | H9 |
| 860.1-0810-041A1-SD | ● | 8.10 | 41.97 | 61.00 | 103.00 | 10.00 | 140.00 | 101.53 | 1.47 | 5.18 | h6 | H9 |
| 860.1-0815-042A1-SD | ● | 8.15 | 42.23 | 61.00 | 103.00 | 10.00 | 140.00 | 101.52 | 1.48 | 5.18 | h6 | H9 |
| 860.1-0820-042A1-SD | ● | 8.20 | 42.49 | 61.00 | 103.00 | 10.00 | 140.00 | 101.51 | 1.49 | 5.18 | h6 | H9 |
| 860.1-0830-043A1-SD | ● | 8.30 | 43.01 | 61.00 | 103.00 | 10.00 | 140.00 | 101.49 | 1.51 | 5.18 | h6 | H9 |
| 860.1-0833-043A1-SD | ● | 8.33 | 43.17 | 61.00 | 103.00 | 10.00 | 140.00 | 101.48 | 1.52 | 5.18 | h6 | H9 |
| 860.1-0840-043A1-SD | ● | 8.40 | 43.53 | 61.00 | 103.00 | 10.00 | 140.00 | 101.47 | 1.53 | 5.18 | h6 | H9 |
| 860.1-0845-043A1-SD | ● | 8.45 | 43.79 | 61.00 | 103.00 | 10.00 | 140.00 | 101.46 | 1.54 | 5.18 | h6 | H9 |
| 860.1-0850-044A1-SD | ● | 8.50 | 44.05 | 61.00 | 103.00 | 10.00 | 140.00 | 101.45 | 1.55 | 5.18 | h6 | H9 |
| 860.1-0860-044A1-SD | ● | 8.60 | 44.57 | 61.00 | 103.00 | 10.00 | 140.00 | 101.43 | 1.57 | 5.18 | h6 | H9 |
| 860.1-0865-044A1-SD | ● | 8.65 | 44.82 | 61.00 | 103.00 | 10.00 | 140.00 | 101.43 | 1.57 | 5.18 | h6 | H9 |
| 860.1-0870-045A1-SD | ● | 8.70 | 45.08 | 61.00 | 103.00 | 10.00 | 140.00 | 101.42 | 1.58 | 5.18 | h6 | H9 |
| 860.1-0873-045A1-SD | ● | 8.73 | 45.24 | 61.00 | 103.00 | 10.00 | 140.00 | 101.41 | 1.59 | 5.18 | h6 | H9 |
| 860.1-0880-045A1-SD | ● | 8.80 | 45.60 | 61.00 | 103.00 | 10.00 | 140.00 | 101.40 | 1.60 | 5.18 | h6 | H9 |
| 860.1-0885-045A1-SD | ● | 8.85 | 45.86 | 61.00 | 103.00 | 10.00 | 140.00 | 101.39 | 1.61 | 5.18 | h6 | H9 |
| 860.1-0890-046A1-SD | ● | 8.90 | 46.12 | 61.00 | 103.00 | 10.00 | 140.00 | 101.38 | 1.62 | 5.18 | h6 | H9 |
| 860.1-0900-046A1-SD | ● | 9.00 | 46.64 | 61.00 | 103.00 | 10.00 | 140.00 | 101.36 | 1.64 | 5.18 | h6 | H9 |
| 860.1-0910-047A1-SD | ● | 9.10 | 47.16 | 61.00 | 103.00 | 10.00 | 140.00 | 101.34 | 1.66 | 5.18 | h6 | H9 |
| 860.1-0913-047A1-SD | ● | 9.13 | 47.31 | 61.00 | 103.00 | 10.00 | 140.00 | 101.34 | 1.66 | 5.18 | h6 | H9 |
● = первый выбор, ○ = хороший выбор
