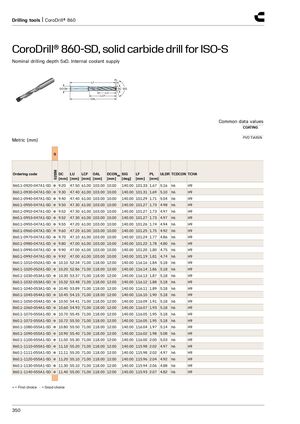

Инструменты для сверления | CoroDrill® 860
CoroDrill® 860-SD, монолитное твердосплавное сверло для ISO-S
Номинальная глубина сверления 5xD. Внутренняя подача СОЖ.
Покрытие: PVD TiAlSiN
| Ordering code | S | DC [mm] | LU [mm] | LCF [mm] | OAL [mm] | DCONMS [mm] | SIG [deg] | LF [mm] | PL [mm] | ULDR | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 860.1-0920-047A1-SD | ● | 9.20 | 47.50 | 61.00 | 103.00 | 10.00 | 140.00 | 101.33 | 1.67 | 5.16 | h6 | H9 |
| 860.1-0930-047A1-SD | ● | 9.30 | 47.40 | 61.00 | 103.00 | 10.00 | 140.00 | 101.31 | 1.69 | 5.10 | h6 | H9 |
| 860.1-0940-047A1-SD | ● | 9.40 | 47.40 | 61.00 | 103.00 | 10.00 | 140.00 | 101.29 | 1.71 | 5.04 | h6 | H9 |
| 860.1-0950-047A1-SD | ● | 9.50 | 47.30 | 61.00 | 103.00 | 10.00 | 140.00 | 101.27 | 1.73 | 4.98 | h6 | H9 |
| 860.1-0952-047A1-SD | ● | 9.52 | 47.30 | 61.00 | 103.00 | 10.00 | 140.00 | 101.27 | 1.73 | 4.97 | h6 | H9 |
| 860.1-0953-047A1-SD | ● | 9.52 | 47.30 | 61.00 | 103.00 | 10.00 | 140.00 | 101.27 | 1.73 | 4.97 | h6 | H9 |
| 860.1-0955-047A1-SD | ● | 9.55 | 47.20 | 61.00 | 103.00 | 10.00 | 140.00 | 101.26 | 1.74 | 4.94 | h6 | H9 |
| 860.1-0960-047A1-SD | ● | 9.60 | 47.20 | 61.00 | 103.00 | 10.00 | 140.00 | 101.25 | 1.75 | 4.92 | h6 | H9 |
| 860.1-0970-047A1-SD | ● | 9.70 | 47.10 | 61.00 | 103.00 | 10.00 | 140.00 | 101.24 | 1.77 | 4.86 | h6 | H9 |
| 860.1-0980-047A1-SD | ● | 9.80 | 47.00 | 61.00 | 103.00 | 10.00 | 140.00 | 101.22 | 1.78 | 4.80 | h6 | H9 |
| 860.1-0990-047A1-SD | ● | 9.90 | 47.00 | 61.00 | 103.00 | 10.00 | 140.00 | 101.20 | 1.80 | 4.75 | h6 | H9 |
| 860.1-0992-047A1-SD | ● | 9.92 | 47.00 | 61.00 | 103.00 | 10.00 | 140.00 | 101.19 | 1.81 | 4.74 | h6 | H9 |
| 860.1-1010-052A1-SD | ● | 10.10 | 52.34 | 71.00 | 118.00 | 12.00 | 140.00 | 116.16 | 1.84 | 5.18 | h6 | H9 |
| 860.1-1020-052A1-SD | ● | 10.20 | 52.86 | 71.00 | 118.00 | 12.00 | 140.00 | 116.14 | 1.86 | 5.18 | h6 | H9 |
| 860.1-1030-053A1-SD | ● | 10.30 | 53.37 | 71.00 | 118.00 | 12.00 | 140.00 | 116.13 | 1.87 | 5.18 | h6 | H9 |
| 860.1-1032-053A1-SD | ● | 10.32 | 53.48 | 71.00 | 118.00 | 12.00 | 140.00 | 116.12 | 1.88 | 5.18 | h6 | H9 |
| 860.1-1040-053A1-SD | ● | 10.40 | 53.89 | 71.00 | 118.00 | 12.00 | 140.00 | 116.11 | 1.89 | 5.18 | h6 | H9 |
| 860.1-1045-054A1-SD | ● | 10.45 | 54.15 | 71.00 | 118.00 | 12.00 | 140.00 | 116.10 | 1.90 | 5.18 | h6 | H9 |
| 860.1-1050-054A1-SD | ● | 10.50 | 54.41 | 71.00 | 118.00 | 12.00 | 140.00 | 116.09 | 1.91 | 5.18 | h6 | H9 |
| 860.1-1060-054A1-SD | ● | 10.60 | 54.93 | 71.00 | 118.00 | 12.00 | 140.00 | 116.07 | 1.93 | 5.18 | h6 | H9 |
| 860.1-1070-055A1-SD | ● | 10.70 | 55.45 | 71.00 | 118.00 | 12.00 | 140.00 | 116.05 | 1.95 | 5.18 | h6 | H9 |
| 860.1-1072-055A1-SD | ● | 10.72 | 55.50 | 71.00 | 118.00 | 12.00 | 140.00 | 116.05 | 1.95 | 5.18 | h6 | H9 |
| 860.1-1080-055A1-SD | ● | 10.80 | 55.50 | 71.00 | 118.00 | 12.00 | 140.00 | 116.04 | 1.97 | 5.14 | h6 | H9 |
| 860.1-1090-055A1-SD | ● | 10.90 | 55.40 | 71.00 | 118.00 | 12.00 | 140.00 | 116.02 | 1.98 | 5.08 | h6 | H9 |
| 860.1-1100-055A1-SD | ● | 11.00 | 55.30 | 71.00 | 118.00 | 12.00 | 140.00 | 116.00 | 2.00 | 5.03 | h6 | H9 |
| 860.1-1110-055A1-SD | ● | 11.10 | 55.20 | 71.00 | 118.00 | 12.00 | 140.00 | 115.98 | 2.02 | 4.97 | h6 | H9 |
| 860.1-1111-055A1-SD | ● | 11.11 | 55.20 | 71.00 | 118.00 | 12.00 | 140.00 | 115.98 | 2.02 | 4.97 | h6 | H9 |
| 860.1-1120-055A1-SD | ● | 11.20 | 55.10 | 71.00 | 118.00 | 12.00 | 140.00 | 115.96 | 2.04 | 4.92 | h6 | H9 |
| 860.1-1130-055A1-SD | ● | 11.30 | 55.10 | 71.00 | 118.00 | 12.00 | 140.00 | 115.94 | 2.06 | 4.88 | h6 | H9 |
| 860.1-1140-055A1-SD | ● | 11.40 | 55.00 | 71.00 | 118.00 | 12.00 | 140.00 | 115.93 | 2.07 | 4.82 | h6 | H9 |
● = первый выбор, ○ = хороший выбор
