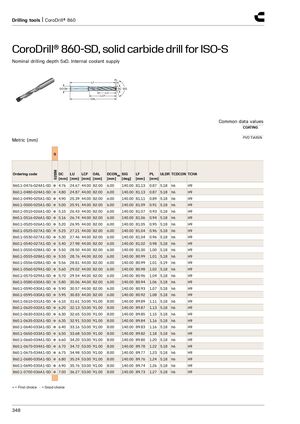

Инструменты для сверления | CoroDrill® 860
CoroDrill® 860-SD, монолитное твердосплавное сверло для ISO-S
Номинальная глубина сверления 5xD. Внутренняя подача СОЖ.
Покрытие: PVD TiAlSiN
| Ordering code | S | DC [mm] | LU [mm] | LCF [mm] | OAL [mm] | DCONMS [mm] | SIG [deg] | LF [mm] | PL [mm] | ULDR | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 860.1-0476-024A1-SD | ● | 4.76 | 24.67 | 44.00 | 82.00 | 6.00 | 140.00 | 81.13 | 0.87 | 5.18 | h6 | H9 |
| 860.1-0480-024A1-SD | ● | 4.80 | 24.87 | 44.00 | 82.00 | 6.00 | 140.00 | 81.13 | 0.87 | 5.18 | h6 | H9 |
| 860.1-0490-025A1-SD | ● | 4.90 | 25.39 | 44.00 | 82.00 | 6.00 | 140.00 | 81.11 | 0.89 | 5.18 | h6 | H9 |
| 860.1-0500-025A1-SD | ● | 5.00 | 25.91 | 44.00 | 82.00 | 6.00 | 140.00 | 81.09 | 0.91 | 5.18 | h6 | H9 |
| 860.1-0510-026A1-SD | ● | 5.10 | 26.43 | 44.00 | 82.00 | 6.00 | 140.00 | 81.07 | 0.93 | 5.18 | h6 | H9 |
| 860.1-0516-026A1-SD | ● | 5.16 | 26.74 | 44.00 | 82.00 | 6.00 | 140.00 | 81.06 | 0.94 | 5.18 | h6 | H9 |
| 860.1-0520-026A1-SD | ● | 5.20 | 26.95 | 44.00 | 82.00 | 6.00 | 140.00 | 81.05 | 0.95 | 5.18 | h6 | H9 |
| 860.1-0525-027A1-SD | ● | 5.25 | 27.21 | 44.00 | 82.00 | 6.00 | 140.00 | 81.04 | 0.96 | 5.18 | h6 | H9 |
| 860.1-0530-027A1-SD | ● | 5.30 | 27.46 | 44.00 | 82.00 | 6.00 | 140.00 | 81.04 | 0.96 | 5.18 | h6 | H9 |
| 860.1-0540-027A1-SD | ● | 5.40 | 27.98 | 44.00 | 82.00 | 6.00 | 140.00 | 81.02 | 0.98 | 5.18 | h6 | H9 |
| 860.1-0550-028A1-SD | ● | 5.50 | 28.50 | 44.00 | 82.00 | 6.00 | 140.00 | 81.00 | 1.00 | 5.18 | h6 | H9 |
| 860.1-0555-028A1-SD | ● | 5.55 | 28.76 | 44.00 | 82.00 | 6.00 | 140.00 | 80.99 | 1.01 | 5.18 | h6 | H9 |
| 860.1-0556-028A1-SD | ● | 5.56 | 28.81 | 44.00 | 82.00 | 6.00 | 140.00 | 80.99 | 1.01 | 5.19 | h6 | H9 |
| 860.1-0560-029A1-SD | ● | 5.60 | 29.02 | 44.00 | 82.00 | 6.00 | 140.00 | 80.98 | 1.02 | 5.18 | h6 | H9 |
| 860.1-0570-029A1-SD | ● | 5.70 | 29.54 | 44.00 | 82.00 | 6.00 | 140.00 | 80.96 | 1.04 | 5.18 | h6 | H9 |
| 860.1-0580-030A1-SD | ● | 5.80 | 30.06 | 44.00 | 82.00 | 6.00 | 140.00 | 80.94 | 1.06 | 5.18 | h6 | H9 |
| 860.1-0590-030A1-SD | ● | 5.90 | 30.57 | 44.00 | 82.00 | 6.00 | 140.00 | 80.93 | 1.07 | 5.18 | h6 | H9 |
| 860.1-0595-030A1-SD | ● | 5.95 | 30.83 | 44.00 | 82.00 | 6.00 | 140.00 | 80.92 | 1.08 | 5.18 | h6 | H9 |
| 860.1-0610-031A1-SD | ● | 6.10 | 31.61 | 53.00 | 91.00 | 8.00 | 140.00 | 89.89 | 1.11 | 5.18 | h6 | H9 |
| 860.1-0620-032A1-SD | ● | 6.20 | 32.13 | 53.00 | 91.00 | 8.00 | 140.00 | 89.87 | 1.13 | 5.18 | h6 | H9 |
| 860.1-0630-032A1-SD | ● | 6.30 | 32.65 | 53.00 | 91.00 | 8.00 | 140.00 | 89.85 | 1.15 | 5.18 | h6 | H9 |
| 860.1-0635-032A1-SD | ● | 6.35 | 32.91 | 53.00 | 91.00 | 8.00 | 140.00 | 89.84 | 1.16 | 5.18 | h6 | H9 |
| 860.1-0640-033A1-SD | ● | 6.40 | 33.16 | 53.00 | 91.00 | 8.00 | 140.00 | 89.83 | 1.16 | 5.18 | h6 | H9 |
| 860.1-0650-033A1-SD | ● | 6.50 | 33.68 | 53.00 | 91.00 | 8.00 | 140.00 | 89.82 | 1.18 | 5.18 | h6 | H9 |
| 860.1-0660-034A1-SD | ● | 6.60 | 34.20 | 53.00 | 91.00 | 8.00 | 140.00 | 89.80 | 1.20 | 5.18 | h6 | H9 |
| 860.1-0670-034A1-SD | ● | 6.70 | 34.72 | 53.00 | 91.00 | 8.00 | 140.00 | 89.78 | 1.22 | 5.18 | h6 | H9 |
| 860.1-0675-034A1-SD | ● | 6.75 | 34.98 | 53.00 | 91.00 | 8.00 | 140.00 | 89.77 | 1.23 | 5.18 | h6 | H9 |
| 860.1-0680-035A1-SD | ● | 6.80 | 35.24 | 53.00 | 91.00 | 8.00 | 140.00 | 89.76 | 1.24 | 5.18 | h6 | H9 |
| 860.1-0690-035A1-SD | ● | 6.90 | 35.76 | 53.00 | 91.00 | 8.00 | 140.00 | 89.74 | 1.26 | 5.18 | h6 | H9 |
| 860.1-0700-036A1-SD | ● | 7.00 | 36.27 | 53.00 | 91.00 | 8.00 | 140.00 | 89.73 | 1.27 | 5.18 | h6 | H9 |
● = первый выбор, ○ = хороший выбор
