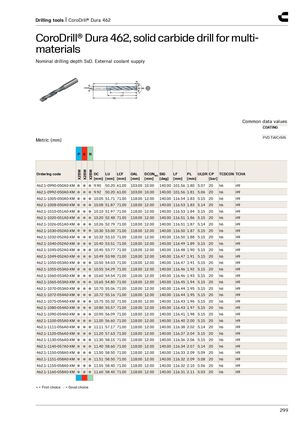

Инструменты для сверления | CoroDrill® Dura 462
CoroDrill® Dura 462, монолитное твердосплавное сверло для различных материалов
Номинальная глубина сверления 5xD. Внешняя подача СОЖ.
Общие параметры
ПОКРЫТИЕ: PVD TiAlCrSiN
Метрическая (мм). Группы обрабатываемых материалов: P, K, N (марка X2BM). Для всех позиций в таблице ниже — ● первый выбор по всем группам материалов.
| Код заказа | DC [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | ULDR | CP [бар] | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 462.1-0990-050A0-XM | 9.90 | 50.20 | 61.00 | 103.00 | 10.00 | 140.00 | 101.56 | 1.80 | 5.07 | 20 | h6 | H9 |
| 462.1-0992-050A0-XM | 9.92 | 50.20 | 61.00 | 103.00 | 10.00 | 140.00 | 101.56 | 1.81 | 5.06 | 20 | h6 | H9 |
| 462.1-1005-050A0-XM | 10.05 | 51.71 | 71.00 | 118.00 | 12.00 | 140.00 | 116.54 | 1.83 | 5.15 | 20 | h6 | H9 |
| 462.1-1008-050A0-XM | 10.08 | 51.87 | 71.00 | 118.00 | 12.00 | 140.00 | 116.53 | 1.83 | 5.14 | 20 | h6 | H9 |
| 462.1-1010-051A0-XM | 10.10 | 51.97 | 71.00 | 118.00 | 12.00 | 140.00 | 116.53 | 1.84 | 5.15 | 20 | h6 | H9 |
| 462.1-1020-051A0-XM | 10.20 | 52.48 | 71.00 | 118.00 | 12.00 | 140.00 | 116.51 | 1.86 | 5.15 | 20 | h6 | H9 |
| 462.1-1026-051A0-XM | 10.26 | 52.79 | 71.00 | 118.00 | 12.00 | 140.00 | 116.51 | 1.87 | 5.14 | 20 | h6 | H9 |
| 462.1-1030-052A0-XM | 10.30 | 53.00 | 71.00 | 118.00 | 12.00 | 140.00 | 116.50 | 1.87 | 5.15 | 20 | h6 | H9 |
| 462.1-1032-052A0-XM | 10.32 | 53.10 | 71.00 | 118.00 | 12.00 | 140.00 | 116.50 | 1.88 | 5.15 | 20 | h6 | H9 |
| 462.1-1040-052A0-XM | 10.40 | 53.51 | 71.00 | 118.00 | 12.00 | 140.00 | 116.49 | 1.89 | 5.15 | 20 | h6 | H9 |
| 462.1-1045-052A0-XM | 10.45 | 53.77 | 71.00 | 118.00 | 12.00 | 140.00 | 116.48 | 1.90 | 5.15 | 20 | h6 | H9 |
| 462.1-1049-052A0-XM | 10.49 | 53.98 | 71.00 | 118.00 | 12.00 | 140.00 | 116.47 | 1.91 | 5.15 | 20 | h6 | H9 |
| 462.1-1050-053A0-XM | 10.50 | 54.03 | 71.00 | 118.00 | 12.00 | 140.00 | 116.47 | 1.91 | 5.15 | 20 | h6 | H9 |
| 462.1-1055-053A0-XM | 10.55 | 54.29 | 71.00 | 118.00 | 12.00 | 140.00 | 116.46 | 1.92 | 5.15 | 20 | h6 | H9 |
| 462.1-1060-053A0-XM | 10.60 | 54.54 | 71.00 | 118.00 | 12.00 | 140.00 | 116.46 | 1.93 | 5.15 | 20 | h6 | H9 |
| 462.1-1065-053A0-XM | 10.65 | 54.80 | 71.00 | 118.00 | 12.00 | 140.00 | 116.45 | 1.94 | 5.15 | 20 | h6 | H9 |
| 462.1-1070-053A0-XM | 10.70 | 55.06 | 71.00 | 118.00 | 12.00 | 140.00 | 116.44 | 1.95 | 5.15 | 20 | h6 | H9 |
| 462.1-1072-054A0-XM | 10.72 | 55.16 | 71.00 | 118.00 | 12.00 | 140.00 | 116.44 | 1.95 | 5.15 | 20 | h6 | H9 |
| 462.1-1075-054A0-XM | 10.75 | 55.32 | 71.00 | 118.00 | 12.00 | 140.00 | 116.43 | 1.96 | 5.15 | 20 | h6 | H9 |
| 462.1-1080-054A0-XM | 10.80 | 55.57 | 71.00 | 118.00 | 12.00 | 140.00 | 116.43 | 1.97 | 5.15 | 20 | h6 | H9 |
| 462.1-1090-054A0-XM | 10.90 | 56.09 | 71.00 | 118.00 | 12.00 | 140.00 | 116.41 | 1.98 | 5.15 | 20 | h6 | H9 |
| 462.1-1100-055A0-XM | 11.00 | 56.60 | 71.00 | 118.00 | 12.00 | 140.00 | 116.40 | 2.00 | 5.15 | 20 | h6 | H9 |
| 462.1-1111-056A0-XM | 11.11 | 57.17 | 71.00 | 118.00 | 12.00 | 140.00 | 116.38 | 2.02 | 5.14 | 20 | h6 | H9 |
| 462.1-1120-056A0-XM | 11.20 | 57.63 | 71.00 | 118.00 | 12.00 | 140.00 | 116.37 | 2.04 | 5.15 | 20 | h6 | H9 |
| 462.1-1130-056A0-XM | 11.30 | 58.15 | 71.00 | 118.00 | 12.00 | 140.00 | 116.36 | 2.06 | 5.15 | 20 | h6 | H9 |
| 462.1-1140-057A0-XM | 11.40 | 58.60 | 71.00 | 118.00 | 12.00 | 140.00 | 116.34 | 2.07 | 5.14 | 20 | h6 | H9 |
| 462.1-1150-058A0-XM | 11.50 | 58.50 | 71.00 | 118.00 | 12.00 | 140.00 | 116.33 | 2.09 | 5.09 | 20 | h6 | H9 |
| 462.1-1151-058A0-XM | 11.51 | 58.50 | 71.00 | 118.00 | 12.00 | 140.00 | 116.32 | 2.09 | 5.08 | 20 | h6 | H9 |
| 462.1-1155-058A0-XM | 11.55 | 58.40 | 71.00 | 118.00 | 12.00 | 140.00 | 116.32 | 2.10 | 5.06 | 20 | h6 | H9 |
| 462.1-1160-058A0-XM | 11.60 | 58.40 | 71.00 | 118.00 | 12.00 | 140.00 | 116.31 | 2.11 | 5.03 | 20 | h6 | H9 |
● = первый выбор, ○ = хороший выбор
