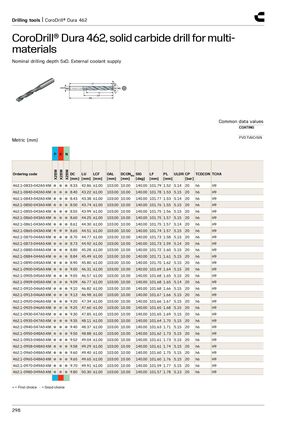

Инструменты для сверления | CoroDrill® Dura 462

CoroDrill® Dura 462, монолитное твердосплавное сверло для различных материалов

Номинальная глубина сверления 5xD. Внешняя подача СОЖ.

Общие данные: покрытие — PVD TiAlCrSiN.

Метрическая система (мм). Группы применения: P, K, N (марка X2BM для каждой группы).

● — первый выбор, ○ — хороший выбор.
