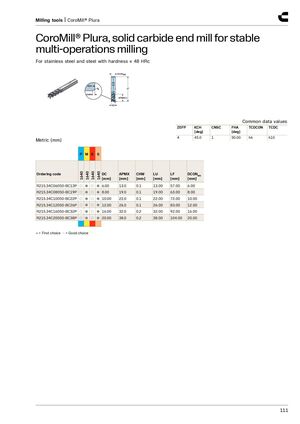

Фрезерный инструмент | CoroMill® Plura
CoroMill® Plura, концевая фреза из твёрдого сплава для стабильного многофункционального фрезерования
Для нержавеющей стали и стали твёрдостью ≤ 48 HRc.
Общие значения параметров
| ZEFP | KCH [град] | CNSC | FHA [град] | TCDCON | TCDC |
|---|---|---|---|---|---|
| 4 | 45.0 | 1 | 50.00 | h6 | h10 |
Метрическая система (мм)
P M K S 1640
| Код заказа | DC [мм] | APMX [мм] | CHW [мм] | LU [мм] | LF [мм] | DCONMS [мм] |
|---|---|---|---|---|---|---|
| R215.34C06050-BC13P ○ ● ○ ● | 6.00 | 13.0 | 0.1 | 13.00 | 57.00 | 6.00 |
| R215.34C08050-BC19P ○ ● ○ ● | 8.00 | 19.0 | 0.1 | 19.00 | 63.00 | 8.00 |
| R215.34C10050-BC22P ○ ● ○ ● | 10.00 | 22.0 | 0.1 | 22.00 | 72.00 | 10.00 |
| R215.34C12050-BC26P ○ ● ○ ● | 12.00 | 26.0 | 0.1 | 26.00 | 83.00 | 12.00 |
| R215.34C16050-BC32P ○ ● ○ ● | 16.00 | 32.0 | 0.2 | 32.00 | 92.00 | 16.00 |
| R215.34C20050-BC38P ○ ● ○ ● | 20.00 | 38.0 | 0.2 | 38.00 | 104.00 | 20.00 |
● = Первый выбор ○ = Хороший выбор
