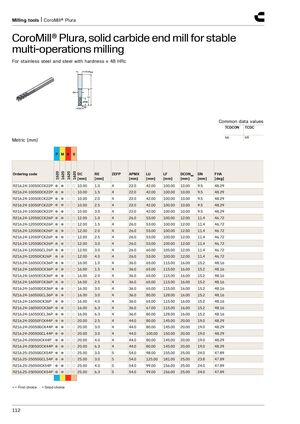

Фрезерный инструмент | CoroMill® Plura
CoroMill® Plura, концевая фреза из твёрдого сплава для стабильного многофункционального фрезерования
Для нержавеющей стали и стали твёрдостью ≤ 48 HRc.
Общие значения параметров
| TCDCON | TCDC |
|---|---|
| h6 | h9 |
Метрическая система (мм)
P M K S 1620
| Код заказа | DC [мм] | RE [мм] | ZEFP | APMX [мм] | LU [мм] | LF [мм] | DCONMS [мм] | DN [мм] | FHA [град] |
|---|---|---|---|---|---|---|---|---|---|
| R216.24-10050CCK22P ● ● ○ ○ | 10.00 | 1.0 | 4 | 22.0 | 42.00 | 100.00 | 10.00 | 9.5 | 48.29 |
| R216.24-10050DCK22P ● ● ○ ○ | 10.00 | 1.5 | 4 | 22.0 | 42.00 | 100.00 | 10.00 | 9.5 | 48.29 |
| R216.24-10050ECK22P ● ● ○ ○ | 10.00 | 2.0 | 4 | 22.0 | 42.00 | 100.00 | 10.00 | 9.5 | 48.29 |
| R216.24-10050FCK22P ● ● ○ ○ | 10.00 | 2.5 | 4 | 22.0 | 42.00 | 100.00 | 10.00 | 9.5 | 48.29 |
| R216.24-10050GCK22P ● ● ○ ○ | 10.00 | 3.0 | 4 | 22.0 | 42.00 | 100.00 | 10.00 | 9.5 | 48.29 |
| R216.24-12050CCK26P ● ● ○ ○ | 12.00 | 1.0 | 4 | 26.0 | 53.00 | 100.00 | 12.00 | 11.4 | 46.72 |
| R216.24-12050DCK26P ● ● ○ ○ | 12.00 | 1.5 | 4 | 26.0 | 53.00 | 100.00 | 12.00 | 11.4 | 46.72 |
| R216.24-12050ECK26P ● ● ○ ○ | 12.00 | 2.0 | 4 | 26.0 | 53.00 | 100.00 | 12.00 | 11.4 | 46.72 |
| R216.24-12050FCK26P ● ● ○ ○ | 12.00 | 2.5 | 4 | 26.0 | 53.00 | 100.00 | 12.00 | 11.4 | 46.72 |
| R216.24-12050GCK26P ● ● ○ ○ | 12.00 | 3.0 | 4 | 26.0 | 53.00 | 100.00 | 12.00 | 11.4 | 46.72 |
| R216.24-12050GCL26P ● ● ○ ○ | 12.00 | 3.0 | 4 | 26.0 | 60.00 | 105.00 | 12.00 | 11.4 | 46.72 |
| R216.24-12050ICK26P ● ● ○ ○ | 12.00 | 4.0 | 4 | 26.0 | 53.00 | 100.00 | 12.00 | 11.4 | 46.72 |
| R216.24-16050CCK36P ● ● ○ ○ | 16.00 | 1.0 | 4 | 36.0 | 65.00 | 115.00 | 16.00 | 15.2 | 48.16 |
| R216.24-16050DCK36P ● ● ○ ○ | 16.00 | 1.5 | 4 | 36.0 | 65.00 | 115.00 | 16.00 | 15.2 | 48.16 |
| R216.24-16050ECK36P ● ● ○ ○ | 16.00 | 2.0 | 4 | 36.0 | 65.00 | 115.00 | 16.00 | 15.2 | 48.16 |
| R216.24-16050FCK36P ● ● ○ ○ | 16.00 | 2.5 | 4 | 36.0 | 65.00 | 115.00 | 16.00 | 15.2 | 48.16 |
| R216.24-16050GCK36P ● ● ○ ○ | 16.00 | 3.0 | 4 | 36.0 | 65.00 | 115.00 | 16.00 | 15.2 | 48.16 |
| R216.24-16050GCL36P ● ● ○ ○ | 16.00 | 3.0 | 4 | 36.0 | 80.00 | 128.00 | 16.00 | 15.2 | 48.16 |
| R216.24-16050ICK36P ● ● ○ ○ | 16.00 | 4.0 | 4 | 36.0 | 65.00 | 115.00 | 16.00 | 15.2 | 48.16 |
| R216.24-16050OCK36P ● ● ○ ○ | 16.00 | 6.3 | 4 | 36.0 | 67.00 | 115.00 | 16.00 | 15.2 | 48.16 |
| R216.24-16050OCL36P ● ● ○ ○ | 16.00 | 6.3 | 4 | 36.0 | 80.00 | 128.00 | 16.00 | 15.2 | 48.16 |
| R216.24-20050FCK44P ● ● ○ ○ | 20.00 | 2.5 | 4 | 44.0 | 80.00 | 145.00 | 20.00 | 19.0 | 48.29 |
| R216.24-20050GCK44P ● ● ○ ○ | 20.00 | 3.0 | 4 | 44.0 | 80.00 | 145.00 | 20.00 | 19.0 | 48.29 |
| R216.24-20050GCL44P ● ● ○ ○ | 20.00 | 3.0 | 4 | 44.0 | 100.00 | 150.00 | 20.00 | 19.0 | 48.29 |
| R216.24-20050ICK44P ● ● ○ ○ | 20.00 | 4.0 | 4 | 44.0 | 80.00 | 145.00 | 20.00 | 19.0 | 48.29 |
| R216.24-20050OCK44P ● ● ○ ○ | 20.00 | 6.3 | 4 | 44.0 | 80.00 | 145.00 | 20.00 | 19.0 | 48.29 |
| R216.25-25050GCK54P ● ● ○ ○ | 25.00 | 3.0 | 5 | 54.0 | 98.00 | 155.00 | 25.00 | 24.0 | 47.89 |
| R216.25-25050GCL54P ● ● ○ ○ | 25.00 | 3.0 | 5 | 54.0 | 125.00 | 181.00 | 25.00 | 23.8 | 47.89 |
| R216.25-25050ICK54P ● ● ○ ○ | 25.00 | 4.0 | 5 | 54.0 | 99.00 | 156.00 | 25.00 | 24.0 | 47.89 |
| R216.25-25050OCK54P ● ● ○ ○ | 25.00 | 6.3 | 5 | 54.0 | 99.00 | 156.00 | 25.00 | 24.0 | 47.89 |
● = Первый выбор ○ = Хороший выбор
