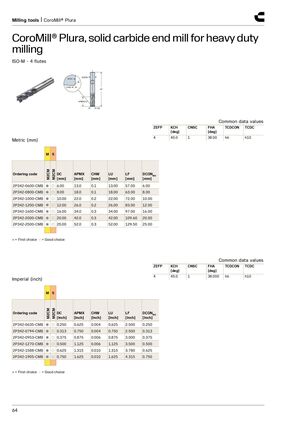

Инструмент для фрезерования | CoroMill® Plura
CoroMill® Plura, концевая фреза из твердого сплава для тяжелого фрезерования
ISO-M - 4 зубца
Общие значения данных
| ZEFP | KCH [град] | CNSC | FHA [град] | TCDCON | TCDC |
|---|---|---|---|---|---|
| 4 | 45.0 | 1 | 38.00 | h6 | h10 |
Метрическая система (мм)
| Код заказа | M S | M2CM | DC [мм] | APMX [мм] | CHW [мм] | LU [мм] | LF [мм] | DCONMS [мм] |
|---|---|---|---|---|---|---|---|---|
| 2P342-0600-CMB | ● | ○ | 6.00 | 13.0 | 0.1 | 13.00 | 57.00 | 6.00 |
| 2P342-0800-CMB | ● | ○ | 8.00 | 18.0 | 0.1 | 18.00 | 63.00 | 8.00 |
| 2P342-1000-CMB | ● | ○ | 10.00 | 22.0 | 0.2 | 22.00 | 72.00 | 10.00 |
| 2P342-1200-CMB | ● | ○ | 12.00 | 26.0 | 0.2 | 26.00 | 83.00 | 12.00 |
| 2P342-1600-CMB | ● | ○ | 16.00 | 34.0 | 0.3 | 34.00 | 97.00 | 16.00 |
| 2P342-2000-CMB | ● | ○ | 20.00 | 42.0 | 0.3 | 42.00 | 109.60 | 20.00 |
| 2P342-2500-CMB | ● | ○ | 25.00 | 52.0 | 0.3 | 52.00 | 129.50 | 25.00 |
● = Предпочтительный выбор ○ = Хороший выбор
Общие значения данных
| ZEFP | KCH [град] | CNSC | FHA [град] | TCDCON | TCDC |
|---|---|---|---|---|---|
| 4 | 45.0 | 1 | 38.000 | h6 | h10 |
Дюймовая система (дюйм)
| Код заказа | M S | M2CM | DC [дюйм] | APMX [дюйм] | CHW [дюйм] | LU [дюйм] | LF [дюйм] | DCONMS [дюйм] |
|---|---|---|---|---|---|---|---|---|
| 2P342-0635-CMB | ● | ○ | 0.250 | 0.625 | 0.004 | 0.625 | 2.500 | 0.250 |
| 2P342-0794-CMB | ● | ○ | 0.313 | 0.750 | 0.004 | 0.750 | 2.500 | 0.313 |
| 2P342-0953-CMB | ● | ○ | 0.375 | 0.875 | 0.006 | 0.875 | 3.000 | 0.375 |
| 2P342-1270-CMB | ● | ○ | 0.500 | 1.125 | 0.006 | 1.125 | 3.500 | 0.500 |
| 2P342-1588-CMB | ● | ○ | 0.625 | 1.315 | 0.010 | 1.315 | 3.780 | 0.625 |
| 2P342-1905-CMB | ● | ○ | 0.750 | 1.625 | 0.010 | 1.625 | 4.315 | 0.750 |
● = Предпочтительный выбор ○ = Хороший выбор
