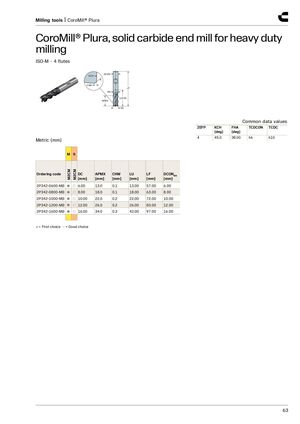

Инструмент для фрезерования | CoroMill® Plura
CoroMill® Plura, концевая фреза из твердого сплава для тяжелого фрезерования
ISO-M - 4 зубца
Общие значения данных
| ZEFP | KCH [град] | FHA [град] | TCDCON | TCDC |
|---|---|---|---|---|
| 4 | 45.0 | 38.00 | h6 | h10 |
Метрическая система (мм)
| Код заказа | M S | M2CM | DC [мм] | APMX [мм] | CHW [мм] | LU [мм] | LF [мм] | DCONMS [мм] |
|---|---|---|---|---|---|---|---|---|
| 2P342-0600-MB | ● | ○ | 6.00 | 13.0 | 0.1 | 13.00 | 57.00 | 6.00 |
| 2P342-0800-MB | ● | ○ | 8.00 | 18.0 | 0.1 | 18.00 | 63.00 | 8.00 |
| 2P342-1000-MB | ● | ○ | 10.00 | 22.0 | 0.2 | 22.00 | 72.00 | 10.00 |
| 2P342-1200-MB | ● | ○ | 12.00 | 26.0 | 0.2 | 26.00 | 83.00 | 12.00 |
| 2P342-1600-MB | ● | ○ | 16.00 | 34.0 | 0.3 | 42.00 | 97.00 | 16.00 |
● = Предпочтительный выбор ○ = Хороший выбор
