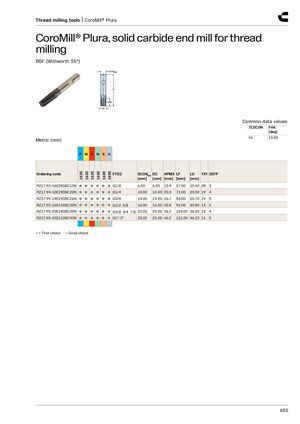

Инструменты для нарезания резьбы фрезерованием | CoroMill® Plura
CoroMill® Plura, цельнотвердосплавная концевая фреза для фрезерования резьбы
BSF (Withworth 55°)
Общие значения: TCDCON h6, FHA [deg] 10.00
| Ordering code | FTDZ | DCONMS [mm] | DC [mm] | APMX [mm] | LF [mm] | LU [mm] | TPI | ZEFP |
|---|---|---|---|---|---|---|---|---|
| R217.93-060280BC15N | G1/8 | 6.00 | 6.00 | 15.4 | 57.00 | 15.40 | 28 | 3 |
| R217.94-100190BC20N | G1/4 | 10.00 | 10.00 | 20.0 | 72.00 | 20.00 | 19 | 4 |
| R217.95-140190BC26N | G3/8 | 14.00 | 14.00 | 26.7 | 83.00 | 26.70 | 19 | 5 |
| R217.95-160140BC30N | G1/2 5/8 | 16.00 | 16.00 | 30.8 | 92.00 | 30.80 | 14 | 5 |
| R217.95-200140BC35N | G5/8 3/4 7/8 | 20.00 | 20.00 | 36.2 | 104.00 | 36.20 | 14 | 4 |
| R217.95-250110BC45N | G1”-3” | 25.00 | 25.00 | 46.2 | 121.00 | 46.15 | 11 | 5 |
● = Первый выбор ○ = Хороший выбор
