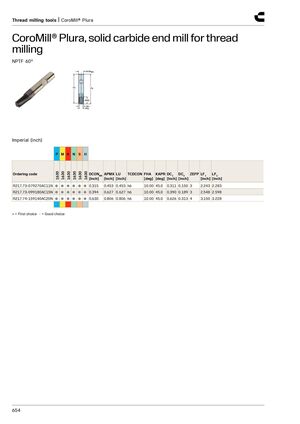

Инструменты для нарезания резьбы фрезерованием | CoroMill® Plura
CoroMill® Plura, цельнотвердосплавная концевая фреза для фрезерования резьбы
NPTF 60°
| Ordering code | DCONMS [inch] | APMX [inch] | LU [inch] | TCDCON | FHA [deg] | KAPR [deg] | DC 1 [inch] | DC 2 [inch] | ZEFP | LF 1 [inch] | LF 2 [inch] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| R217.73-079270AC11N | 0.315 | 0.453 | 0.453 | h6 | 10.00 | 45.0 | 0.311 | 0.150 | 3 | 2.243 | 2.283 |
| R217.73-099180AC15N | 0.394 | 0.627 | 0.627 | h6 | 10.00 | 45.0 | 0.390 | 0.189 | 3 | 2.548 | 2.598 |
| R217.74-159140AC20N | 0.630 | 0.806 | 0.806 | h6 | 10.00 | 45.0 | 0.626 | 0.313 | 4 | 3.150 | 3.228 |
● = Первый выбор ○ = Хороший выбор
