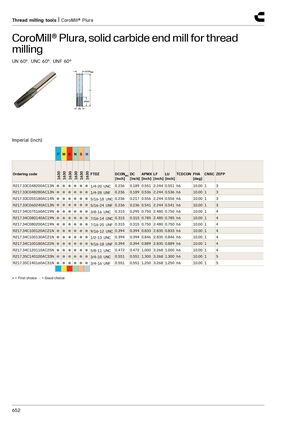

Инструменты для нарезания резьбы фрезерованием | CoroMill® Plura
CoroMill® Plura, цельнотвердосплавная концевая фреза для фрезерования резьбы
UN 60°, UNC 60°, UNF 60°
| Ordering code | FTDZ | DCONMS [inch] | DC [inch] | APMX [inch] | LF [inch] | LU [inch] | TCDCON | FHA [deg] | CNSC | ZEFP |
|---|---|---|---|---|---|---|---|---|---|---|
| R217.33C048200AC13N | 1/4-20 UNC | 0.236 | 0.189 | 0.551 | 2.244 | 0.551 | h6 | 10.00 | 1 | 3 |
| R217.33C048280AC13N | 1/4-28 UNF | 0.236 | 0.189 | 0.536 | 2.244 | 0.536 | h6 | 10.00 | 1 | 3 |
| R217.33C055180AC14N | 5/16-18 UNC | 0.236 | 0.217 | 0.556 | 2.244 | 0.556 | h6 | 10.00 | 1 | 3 |
| R217.33C060240AC13N | 5/16-24 UNF | 0.236 | 0.236 | 0.541 | 2.244 | 0.541 | h6 | 10.00 | 1 | 3 |
| R217.34C075160AC19N | 3/8-16 UNC | 0.315 | 0.295 | 0.750 | 2.480 | 0.750 | h6 | 10.00 | 1 | 4 |
| R217.34C080140AC19N | 7/16-14 UNC | 0.315 | 0.315 | 0.785 | 2.480 | 0.785 | h6 | 10.00 | 1 | 4 |
| R217.34C080200AC19N | 7/16-20 UNF | 0.315 | 0.315 | 0.750 | 2.480 | 0.750 | h6 | 10.00 | 1 | 4 |
| R217.34C100120AC21N | 9/16-12 UNC | 0.394 | 0.394 | 0.833 | 2.835 | 0.833 | h6 | 10.00 | 1 | 4 |
| R217.34C100130AC21N | 1/2-13 UNC | 0.394 | 0.394 | 0.846 | 2.835 | 0.846 | h6 | 10.00 | 1 | 4 |
| R217.34C100180AC22N | 9/16-18 UNF | 0.394 | 0.394 | 0.889 | 2.835 | 0.889 | h6 | 10.00 | 1 | 4 |
| R217.34C120110AC25N | 5/8-11 UNC | 0.472 | 0.472 | 1.000 | 3.268 | 1.000 | h6 | 10.00 | 1 | 4 |
| R217.35C140100AC33N | 3/4-10 UNC | 0.551 | 0.551 | 1.300 | 3.268 | 1.300 | h6 | 10.00 | 1 | 5 |
| R217.35C140160AC31N | 3/4-16 UNF | 0.551 | 0.551 | 1.250 | 3.268 | 1.250 | h6 | 10.00 | 1 | 5 |
● = Первый выбор ○ = Хороший выбор
