Инструменты для развёртывания | CoroReamer® 835

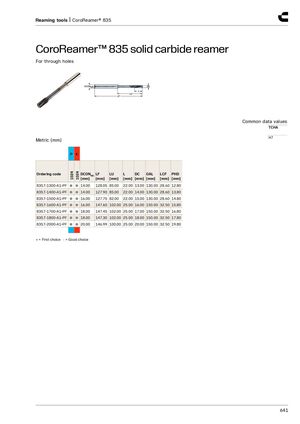

CoroReamer™ 835 — цельнотвердосплавная развёртка
Для сквозных отверстий
| Ordering code | DCONMS [mm] | LF [mm] | LU [mm] | L [mm] | DC [mm] | OAL [mm] | LCF [mm] | PHD [mm] |
|---|---|---|---|---|---|---|---|---|
| 835.T-1300-A1-PF | 14.00 | 128.05 | 85.00 | 22.00 | 13.00 | 130.00 | 28.60 | 12.80 |
| 835.T-1400-A1-PF | 14.00 | 127.90 | 85.00 | 22.00 | 14.00 | 130.00 | 28.60 | 13.80 |
| 835.T-1500-A1-PF | 16.00 | 127.75 | 82.00 | 22.00 | 15.00 | 130.00 | 28.60 | 14.80 |
| 835.T-1600-A1-PF | 16.00 | 147.60 | 102.00 | 25.00 | 16.00 | 150.00 | 32.50 | 15.80 |
| 835.T-1700-A1-PF | 18.00 | 147.45 | 102.00 | 25.00 | 17.00 | 150.00 | 32.50 | 16.80 |
| 835.T-1800-A1-PF | 18.00 | 147.30 | 102.00 | 25.00 | 18.00 | 150.00 | 32.50 | 17.80 |
| 835.T-2000-A1-PF | 20.00 | 146.99 | 100.00 | 25.00 | 20.00 | 150.00 | 32.50 | 19.80 |
● = Первый выбор ○ = Хороший выбор
