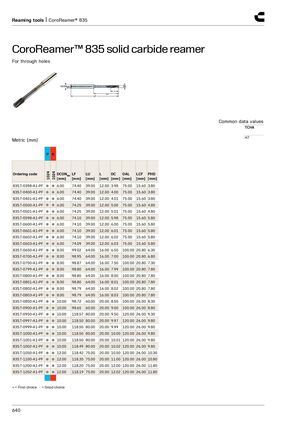

Инструменты для развёртывания | CoroReamer® 835
CoroReamer™ 835 — цельнотвердосплавная развёртка
Для сквозных отверстий
| Ordering code | DCONMS [mm] | LF [mm] | LU [mm] | L [mm] | DC [mm] | OAL [mm] | LCF [mm] | PHD [mm] |
|---|---|---|---|---|---|---|---|---|
| 835.T-0398-A1-PF | 6.00 | 74.40 | 39.00 | 12.00 | 3.98 | 75.00 | 15.60 | 3.80 |
| 835.T-0400-A1-PF | 6.00 | 74.40 | 39.00 | 12.00 | 4.00 | 75.00 | 15.60 | 3.80 |
| 835.T-0401-A1-PF | 6.00 | 74.40 | 39.00 | 12.00 | 4.01 | 75.00 | 15.60 | 3.80 |
| 835.T-0500-A1-PF | 6.00 | 74.25 | 39.00 | 12.00 | 5.00 | 75.00 | 15.60 | 4.80 |
| 835.T-0501-A1-PF | 6.00 | 74.25 | 39.00 | 12.00 | 5.01 | 75.00 | 15.60 | 4.80 |
| 835.T-0598-A1-PF | 6.00 | 74.10 | 39.00 | 12.00 | 5.98 | 75.00 | 15.60 | 5.80 |
| 835.T-0600-A1-PF | 6.00 | 74.10 | 39.00 | 12.00 | 6.00 | 75.00 | 15.60 | 5.80 |
| 835.T-0601-A1-PF | 6.00 | 74.10 | 39.00 | 12.00 | 6.01 | 75.00 | 15.60 | 5.80 |
| 835.T-0602-A1-PF | 6.00 | 74.10 | 39.00 | 12.00 | 6.02 | 75.00 | 15.60 | 5.80 |
| 835.T-0603-A1-PF | 6.00 | 74.09 | 39.00 | 12.00 | 6.03 | 75.00 | 15.60 | 5.80 |
| 835.T-0650-A1-PF | 8.00 | 99.02 | 64.00 | 16.00 | 6.50 | 100.00 | 20.80 | 6.30 |
| 835.T-0700-A1-PF | 8.00 | 98.95 | 64.00 | 16.00 | 7.00 | 100.00 | 20.80 | 6.80 |
| 835.T-0750-A1-PF | 8.00 | 98.87 | 64.00 | 16.00 | 7.50 | 100.00 | 20.80 | 7.30 |
| 835.T-0799-A1-PF | 8.00 | 98.80 | 64.00 | 16.00 | 7.99 | 100.00 | 20.80 | 7.80 |
| 835.T-0800-A1-PF | 8.00 | 98.80 | 64.00 | 16.00 | 8.00 | 100.00 | 20.80 | 7.80 |
| 835.T-0801-A1-PF | 8.00 | 98.80 | 64.00 | 16.00 | 8.01 | 100.00 | 20.80 | 7.80 |
| 835.T-0802-A1-PF | 8.00 | 98.79 | 64.00 | 16.00 | 8.02 | 100.00 | 20.80 | 7.80 |
| 835.T-0803-A1-PF | 8.00 | 98.79 | 64.00 | 16.00 | 8.03 | 100.00 | 20.80 | 7.80 |
| 835.T-0850-A1-PF | 10.00 | 98.72 | 60.00 | 20.00 | 8.50 | 100.00 | 26.00 | 8.30 |
| 835.T-0900-A1-PF | 10.00 | 98.65 | 60.00 | 20.00 | 9.00 | 100.00 | 26.00 | 8.80 |
| 835.T-0950-A1-PF | 10.00 | 118.57 | 80.00 | 20.00 | 9.50 | 120.00 | 26.00 | 9.30 |
| 835.T-0997-A1-PF | 10.00 | 118.50 | 80.00 | 20.00 | 9.97 | 120.00 | 26.00 | 9.80 |
| 835.T-0999-A1-PF | 10.00 | 118.50 | 80.00 | 20.00 | 9.99 | 120.00 | 26.00 | 9.80 |
| 835.T-1000-A1-PF | 10.00 | 118.50 | 80.00 | 20.00 | 10.00 | 120.00 | 26.00 | 9.80 |
| 835.T-1001-A1-PF | 10.00 | 118.50 | 80.00 | 20.00 | 10.01 | 120.00 | 26.00 | 9.80 |
| 835.T-1002-A1-PF | 10.00 | 118.49 | 80.00 | 20.00 | 10.02 | 120.00 | 26.00 | 9.80 |
| 835.T-1050-A1-PF | 12.00 | 118.42 | 75.00 | 20.00 | 10.50 | 120.00 | 26.00 | 10.30 |
| 835.T-1100-A1-PF | 12.00 | 118.35 | 75.00 | 20.00 | 11.00 | 120.00 | 26.00 | 10.80 |
| 835.T-1200-A1-PF | 12.00 | 118.20 | 75.00 | 20.00 | 12.00 | 120.00 | 26.00 | 11.80 |
| 835.T-1202-A1-PF | 12.00 | 118.19 | 75.00 | 20.00 | 12.02 | 120.00 | 26.00 | 11.80 |
● = Первый выбор ○ = Хороший выбор
