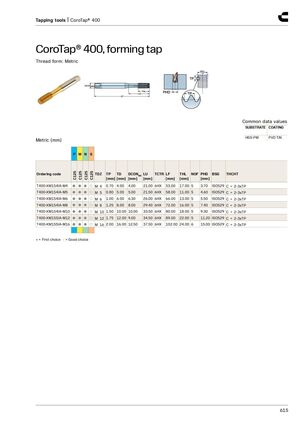

CoroTap® 400, накатной метчик
Форма резьбы: метрическая
Общие значения данных — материал основы: HSS-PM; покрытие: PVD TiN.
| Код заказа | Резьба | TDZ | TP | TD | DCONMS | LU | TCTR | LF | THL | NOF | PHD | BSG | THCHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T400-XM154IA-M4 | M 4 | 0.70 | 4.00 | 4.00 | 21.00 | 6HX | 53.00 | 17.00 | 5 | 3.70 | ISO529 | C = 2-3xTP | |
| T400-XM154IA-M5 | M 5 | 0.80 | 5.00 | 5.00 | 21.50 | 6HX | 58.00 | 11.00 | 5 | 4.60 | ISO529 | C = 2-3xTP | |
| T400-XM154IA-M6 | M 6 | 1.00 | 6.00 | 6.30 | 26.00 | 6HX | 66.00 | 13.00 | 5 | 5.50 | ISO529 | C = 2-3xTP | |
| T400-XM154IA-M8 | M 8 | 1.25 | 8.00 | 8.00 | 29.40 | 6HX | 72.00 | 16.00 | 5 | 7.40 | ISO529 | C = 2-3xTP | |
| T400-XM154IA-M10 | M 10 | 1.50 | 10.00 | 10.00 | 33.50 | 6HX | 80.00 | 18.00 | 5 | 9.30 | ISO529 | C = 2-3xTP | |
| T400-XM155IA-M12 | M 12 | 1.75 | 12.00 | 9.00 | 34.50 | 6HX | 89.00 | 22.00 | 5 | 11.20 | ISO529 | C = 2-3xTP | |
| T400-XM155IA-M16 | M 16 | 2.00 | 16.00 | 12.50 | 37.50 | 6HX | 102.00 | 24.00 | 6 | 15.00 | ISO529 | C = 2-3xTP |
● = первый выбор, ○ = хороший выбор.
