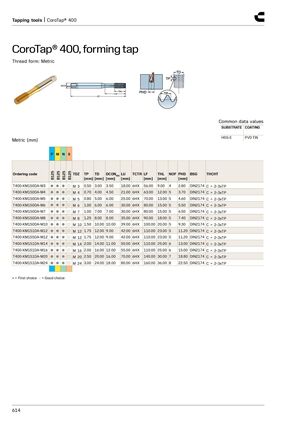

CoroTap® 400, накатной метчик
Форма резьбы: метрическая
Общие значения данных — материал основы: HSS-E; покрытие: PVD TiN.
| Код заказа | Резьба | TDZ | TP | TD | DCONMS | LU | TCTR | LF | THL | NOF | PHD | BSG | THCHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T400-XM150DA-M3 | M 3 | 0.50 | 3.00 | 3.50 | 18.00 | 6HX | 56.00 | 9.00 | 4 | 2.80 | DIN2174 | C = 2-3xTP | |
| T400-XM150DA-M4 | M 4 | 0.70 | 4.00 | 4.50 | 21.00 | 6HX | 63.00 | 12.00 | 5 | 3.70 | DIN2174 | C = 2-3xTP | |
| T400-XM150DA-M5 | M 5 | 0.80 | 5.00 | 6.00 | 25.00 | 6HX | 70.00 | 13.00 | 5 | 4.60 | DIN2174 | C = 2-3xTP | |
| T400-XM150DA-M6 | M 6 | 1.00 | 6.00 | 6.00 | 30.00 | 6HX | 80.00 | 15.00 | 5 | 5.50 | DIN2174 | C = 2-3xTP | |
| T400-XM150DA-M7 | M 7 | 1.00 | 7.00 | 7.00 | 30.00 | 6HX | 80.00 | 15.00 | 5 | 6.50 | DIN2174 | C = 2-3xTP | |
| T400-XM150DA-M8 | M 8 | 1.25 | 8.00 | 8.00 | 35.00 | 6HX | 90.00 | 18.00 | 5 | 7.40 | DIN2174 | C = 2-3xTP | |
| T400-XM150DA-M10 | M 10 | 1.50 | 10.00 | 10.00 | 39.00 | 6HX | 100.00 | 20.00 | 5 | 9.30 | DIN2174 | C = 2-3xTP | |
| T400-XM151DA-M12 | M 12 | 1.75 | 12.00 | 9.00 | 42.00 | 6HX | 110.00 | 23.00 | 5 | 11.20 | DIN2174 | C = 2-3xTP | |
| T400-XM155DA-M12 | M 12 | 1.75 | 12.00 | 9.00 | 42.00 | 6HX | 110.00 | 23.00 | 5 | 11.20 | DIN2174 | C = 2-3xTP | |
| T400-XM151DA-M14 | M 14 | 2.00 | 14.00 | 11.00 | 50.00 | 6HX | 110.00 | 25.00 | 6 | 13.00 | DIN2174 | C = 2-3xTP | |
| T400-XM151DA-M16 | M 16 | 2.00 | 16.00 | 12.00 | 55.00 | 6HX | 110.00 | 25.00 | 6 | 15.00 | DIN2174 | C = 2-3xTP | |
| T400-XM151DA-M20 | M 20 | 2.50 | 20.00 | 16.00 | 70.00 | 6HX | 140.00 | 30.00 | 7 | 18.80 | DIN2174 | C = 2-3xTP | |
| T400-XM151DA-M24 | M 24 | 3.00 | 24.00 | 18.00 | 80.00 | 6HX | 160.00 | 36.00 | 8 | 22.50 | DIN2174 | C = 2-3xTP |
● = первый выбор, ○ = хороший выбор.
