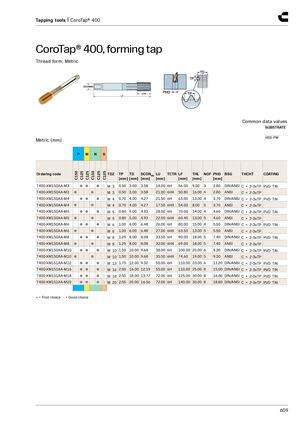

CoroTap® 400, накатной метчик

Форма резьбы: метрическая

Общие значения данных — материал основы: HSS-PM; покрытие: PVD TiN.

Таблица содержит варианты исполнения по колонкам P, M, N, S (с вариантами C150/C125) с отметками ● (первый выбор) и ○ (хороший выбор), а также технические параметры.

• T400-XM150AA-M3: варианты ●●/●○, резьба M3, TDZ 0.50, TP 3.00, TD 3.58, LU 18.00, TCTR 6H, LF 56.00, THL 9.00, NOF 3, PHD 2.80, BSG DIN/ANSI, THCHT C = 2-3xTP, покрытие PVD TiN
• T400-XM150AA-M3: вариант ●, резьба M 3, TDZ 0.50, TP 3.00, TD 3.58, LU 21.00, TCTR 6HX, LF 50.80, THL 16.00, NOF 4, PHD 2.80, BSG ANSI, THCHT C = 2-3xTP
• T400-XM150AA-M4: варианты ●●/●○, резьба M4, TDZ 0.70, TP 4.00, TD 4.27, LU 21.50, TCTR 6H, LF 63.00, THL 13.00, NOF 4, PHD 3.70, BSG DIN/ANSI, THCHT C = 2-3xTP
• T400-XM150AA-M4: вариант ●, резьба M 4, TDZ 0.70, TP 4.00, TD 4.27, LU 17.50, TCTR 6HX, LF 54.00, THL 8.00, NOF 5, PHD 3.70, BSG ANSI, THCHT C = 2-3xTP
• T400-XM150AA-M5: варианты ●●/●○, резьба M5, TDZ 0.80, TP 5.00, TD 4.93, LU 28.00, TCTR 6H, LF 70.00, THL 14.00, NOF 4, PHD 4.60, BSG DIN/ANSI, THCHT C = 2-3xTP
• T400-XM150AA-M5: вариант ●, резьба M 5, TDZ 0.80, TP 5.00, TD 4.93, LU 22.50, TCTR 6HX, LF 60.40, THL 13.00, NOF 5, PHD 4.60, BSG ANSI, THCHT C = 2-3xTP
• T400-XM150AA-M6: варианты ●●/●○, резьба M6, TDZ 1.00, TP 6.00, TD 6.48, LU 26.00, TCTR 6H, LF 80.00, THL 15.00, NOF 4, PHD 5.50, BSG DIN/ANSI, THCHT C = 2-3xTP
• T400-XM150AA-M6: вариант ●, резьба M 6, TDZ 1.00, TP 6.00, TD 6.48, LU 27.00, TCTR 6HX, LF 63.50, THL 13.00, NOF 5, PHD 5.50, BSG ANSI, THCHT C = 2-3xTP
• T400-XM150AA-M8: варианты ●●/●○, резьба M8, TDZ 1.25, TP 8.00, TD 8.08, LU 33.50, TCTR 6H, LF 90.00, THL 18.00, NOF 5, PHD 7.40, BSG DIN/ANSI, THCHT C = 2-3xTP
• T400-XM150AA-M8: вариант ●, резьба M 8, TDZ 1.25, TP 8.00, TD 8.08, LU 32.00, TCTR 6HX, LF 69.00, THL 18.00, NOF 5, PHD 7.40, BSG ANSI, THCHT C = 2-3xTP
• T400-XM150AA-M10: варианты ●●/●○, резьба M 10, TDZ 1.50, TP 10.00, TD 9.68, LU 38.00, TCTR 6H, LF 100.00, THL 20.00, NOF 6, PHD 9.30, BSG DIN/ANSI, THCHT C = 2-3xTP
• T400-XM150AA-M10: вариант ●, резьба M 10, TDZ 1.50, TP 10.00, TD 9.68, LU 35.50, TCTR 6HX, LF 74.60, THL 19.00, NOF 5, PHD 9.30, BSG ANSI, THCHT C = 2-3xTP
• T400-XM151AA-M12: варианты ●●/●○, резьба M 12, TDZ 1.75, TP 12.00, TD 9.32, LU 55.00, TCTR 6H, LF 110.00, THL 23.00, NOF 6, PHD 11.20, BSG DIN/ANSI, THCHT C = 2-3xTP
• T400-XM151AA-M16: варианты ●●/●○, резьба M 16, TDZ 2.00, TP 16.00, TD 12.19, LU 55.00, TCTR 6H, LF 110.00, THL 25.00, NOF 8, PHD 15.00, BSG DIN/ANSI, THCHT C = 2-3xTP
• T400-XM151AA-M18: варианты ●●/●○, резьба M 18, TDZ 2.50, TP 18.00, TD 13.77, LU 72.00, TCTR 6H, LF 125.00, THL 30.00, NOF 8, PHD 16.80, BSG DIN/ANSI, THCHT C = 2-3xTP
• T400-XM151AA-M20: варианты ●●/●○, резьба M 20, TDZ 2.50, TP 20.00, TD 16.56, LU 72.00, TCTR 6H, LF 140.00, THL 30.00, NOF 8, PHD 18.80, BSG DIN/ANSI, THCHT C = 2-3xTP

● = первый выбор, ○ = хороший выбор.
