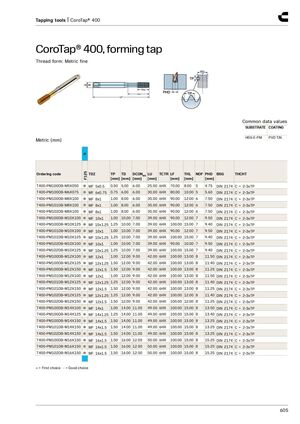

CoroTap® 400, накатной метчик
Форма резьбы: метрическая мелкий шаг
Общие значения данных — материал основы: HSS-E-PM; покрытие: PVD TiN.
| Код заказа | Выбор | Резьба | TDZ [мм] | TP [мм] | TD [мм] | DCONMS [мм] | LU | TCTR [мм] | LF [мм] | THL [мм] | NOF | PHD | THCHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T400-PM100DB-M5X050 | ● | MF 5x0.5 | 0.50 | 5.00 | 6.00 | 25.00 | 6HX | 70.00 | 8.00 | 5 | 4.75 | DIN 2174 | C = 2-3xTP |
| T400-PM100DB-M6X075 | ● | MF 6x0.75 | 0.75 | 6.00 | 6.00 | 30.00 | 6HX | 80.00 | 10.00 | 5 | 5.60 | DIN 2174 | C = 2-3xTP |
| T400-PM100DB-M8X100 | ● | MF 8x1 | 1.00 | 8.00 | 6.00 | 35.00 | 6HX | 90.00 | 12.00 | 6 | 7.50 | DIN 2174 | C = 2-3xTP |
| T400-PM101DB-M8X100 | ● | MF 8x1 | 1.00 | 8.00 | 6.00 | 35.00 | 6HX | 90.00 | 12.00 | 6 | 7.50 | DIN 2174 | C = 2-3xTP |
| T400-PM102DB-M8X100 | ● | MF 8x1 | 1.00 | 8.00 | 6.00 | 35.00 | 6HX | 90.00 | 12.00 | 6 | 7.50 | DIN 2174 | C = 2-3xTP |
| T400-PM100DB-M10X100 | ● | MF 10x1 | 1.00 | 10.00 | 7.00 | 39.00 | 6HX | 90.00 | 12.00 | 7 | 9.50 | DIN 2174 | C = 2-3xTP |
| T400-PM100DB-M10X125 | ● | MF 10x1.25 | 1.25 | 10.00 | 7.00 | 39.00 | 6HX | 100.00 | 15.00 | 7 | 9.40 | DIN 2174 | C = 2-3xTP |
| T400-PM101DB-M10X100 | ● | MF 10x1 | 1.00 | 10.00 | 7.00 | 39.00 | 6HX | 90.00 | 12.00 | 7 | 9.50 | DIN 2174 | C = 2-3xTP |
| T400-PM101DB-M10X125 | ● | MF 10x1.25 | 1.25 | 10.00 | 7.00 | 39.00 | 6HX | 100.00 | 15.00 | 7 | 9.40 | DIN 2174 | C = 2-3xTP |
| T400-PM102DB-M10X100 | ● | MF 10x1 | 1.00 | 10.00 | 7.00 | 39.00 | 6HX | 90.00 | 10.00 | 7 | 9.50 | DIN 2174 | C = 2-3xTP |
| T400-PM102DB-M10X125 | ● | MF 10x1.25 | 1.25 | 10.00 | 7.00 | 39.00 | 6HX | 100.00 | 15.00 | 7 | 9.40 | DIN 2174 | C = 2-3xTP |
| T400-PM100DB-M12X100 | ● | MF 12x1 | 1.00 | 12.00 | 9.00 | 42.00 | 6HX | 100.00 | 13.00 | 8 | 11.50 | DIN 2174 | C = 2-3xTP |
| T400-PM100DB-M12X125 | ● | MF 12x1.25 | 1.50 | 12.00 | 9.00 | 42.00 | 6HX | 100.00 | 13.00 | 8 | 11.40 | DIN 2174 | C = 2-3xTP |
| T400-PM100DB-M12X150 | ● | MF 12x1.5 | 1.50 | 12.00 | 9.00 | 42.00 | 6HX | 100.00 | 13.00 | 8 | 11.25 | DIN 2174 | C = 2-3xTP |
| T400-PM101DB-M12X100 | ● | MF 12x1 | 1.00 | 12.00 | 9.00 | 42.00 | 6HX | 100.00 | 13.00 | 8 | 11.50 | DIN 2174 | C = 2-3xTP |
| T400-PM101DB-M12X125 | ● | MF 12x1.25 | 1.25 | 12.00 | 9.00 | 42.00 | 6HX | 100.00 | 13.00 | 8 | 11.40 | DIN 2174 | C = 2-3xTP |
| T400-PM101DB-M12X150 | ● | MF 12x1.5 | 1.50 | 12.00 | 9.00 | 42.00 | 6HX | 100.00 | 13.00 | 8 | 11.25 | DIN 2174 | C = 2-3xTP |
| T400-PM102DB-M12X125 | ● | MF 12x1.25 | 1.25 | 12.00 | 9.00 | 42.00 | 6HX | 100.00 | 12.00 | 8 | 11.40 | DIN 2174 | C = 2-3xTP |
| T400-PM102DB-M12X150 | ● | MF 12x1.5 | 1.50 | 12.00 | 9.00 | 42.00 | 6HX | 100.00 | 12.00 | 8 | 11.25 | DIN 2174 | C = 2-3xTP |
| T400-PM100DB-M14X100 | ● | MF 14x1 | 1.00 | 14.00 | 11.00 | 49.00 | 6HX | 100.00 | 15.00 | 8 | 13.50 | DIN 2174 | C = 2-3xTP |
| T400-PM100DB-M14X125 | ● | MF 14x1.25 | 1.25 | 14.00 | 11.00 | 49.00 | 6HX | 100.00 | 15.00 | 8 | 13.40 | DIN 2174 | C = 2-3xTP |
| T400-PM100DB-M14X150 | ● | MF 14x1.5 | 1.50 | 14.00 | 11.00 | 49.00 | 6HX | 100.00 | 15.00 | 8 | 13.25 | DIN 2174 | C = 2-3xTP |
| T400-PM101DB-M14X150 | ● | MF 14x1.5 | 1.50 | 14.00 | 11.00 | 49.00 | 6HX | 100.00 | 15.00 | 8 | 13.25 | DIN 2174 | C = 2-3xTP |
| T400-PM102DB-M14X150 | ● | MF 14x1.5 | 1.50 | 14.00 | 11.00 | 49.00 | 6HX | 100.00 | 15.00 | 8 | 13.25 | DIN 2174 | C = 2-3xTP |
| T400-PM100DB-M16X150 | ● | MF 16x1.5 | 1.50 | 16.00 | 12.00 | 50.00 | 6HX | 100.00 | 15.00 | 8 | 15.25 | DIN 2174 | C = 2-3xTP |
| T400-PM101DB-M16X150 | ● | MF 16x1.5 | 1.50 | 16.00 | 12.00 | 50.00 | 6HX | 100.00 | 15.00 | 8 | 15.25 | DIN 2174 | C = 2-3xTP |
| T400-PM102DB-M16X150 | ● | MF 16x1.5 | 1.50 | 16.00 | 12.00 | 50.00 | 6HX | 100.00 | 15.00 | 8 | 15.25 | DIN 2174 | C = 2-3xTP |
● = первый выбор, ○ = хороший выбор.
