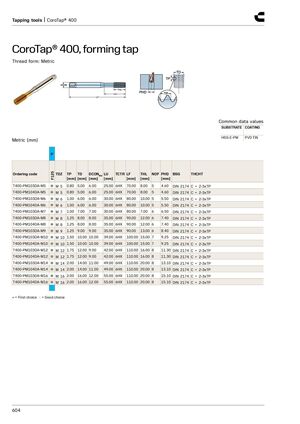

Инструменты для нарезания резьбы | CoroTap® 400
CoroTap® 400, формообразующий метчик
Форма резьбы: метрическая
Общие значения
| SUBSTRATE | COATING |
|---|---|
| HSS-E-PM | PVD TiN |
Метрическая (мм)
| Ordering code | P | DCONMS | TDZ [mm] | TP [mm] | TD [mm] | LU [mm] | TCTR | LF [mm] | THL [mm] | NOF | PHD [mm] | BSG | THCHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T400-PM103DA-M5 | ● | M 5 | 0.80 | 5.00 | 6.00 | 25.00 | 6HX | 70.00 | 8.00 | 5 | 4.60 | DIN 2174 | C = 2-3xTP |
| T400-PM104DA-M5 | ● | M 5 | 0.80 | 5.00 | 6.00 | 25.00 | 6HX | 70.00 | 8.00 | 5 | 4.60 | DIN 2174 | C = 2-3xTP |
| T400-PM103DA-M6 | ● | M 6 | 1.00 | 6.00 | 6.00 | 30.00 | 6HX | 80.00 | 10.00 | 5 | 5.50 | DIN 2174 | C = 2-3xTP |
| T400-PM104DA-M6 | ● | M 6 | 1.00 | 6.00 | 6.00 | 30.00 | 6HX | 80.00 | 10.00 | 5 | 5.50 | DIN 2174 | C = 2-3xTP |
| T400-PM103DA-M7 | ● | M 7 | 1.00 | 7.00 | 7.00 | 30.00 | 6HX | 80.00 | 7.00 | 6 | 6.50 | DIN 2174 | C = 2-3xTP |
| T400-PM103DA-M8 | ● | M 8 | 1.25 | 8.00 | 8.00 | 35.00 | 6HX | 90.00 | 12.00 | 6 | 7.40 | DIN 2174 | C = 2-3xTP |
| T400-PM104DA-M8 | ● | M 8 | 1.25 | 8.00 | 8.00 | 35.00 | 6HX | 90.00 | 12.00 | 6 | 7.40 | DIN 2174 | C = 2-3xTP |
| T400-PM103DA-M9 | ● | M 9 | 1.25 | 9.00 | 9.00 | 35.00 | 6HX | 90.00 | 13.00 | 6 | 8.40 | DIN 2174 | C = 2-3xTP |
| T400-PM103DA-M10 | ● | M 10 | 1.50 | 10.00 | 10.00 | 39.00 | 6HX | 100.00 | 15.00 | 7 | 9.25 | DIN 2174 | C = 2-3xTP |
| T400-PM104DA-M10 | ● | M 10 | 1.50 | 10.00 | 10.00 | 39.00 | 6HX | 100.00 | 15.00 | 7 | 9.25 | DIN 2174 | C = 2-3xTP |
| T400-PM103DA-M12 | ● | M 12 | 1.75 | 12.00 | 9.00 | 42.00 | 6HX | 110.00 | 16.00 | 8 | 11.30 | DIN 2174 | C = 2-3xTP |
| T400-PM104DA-M12 | ● | M 12 | 1.75 | 12.00 | 9.00 | 42.00 | 6HX | 110.00 | 16.00 | 8 | 11.30 | DIN 2174 | C = 2-3xTP |
| T400-PM103DA-M14 | ● | M 14 | 2.00 | 14.00 | 11.00 | 49.00 | 6HX | 110.00 | 20.00 | 8 | 13.10 | DIN 2174 | C = 2-3xTP |
| T400-PM104DA-M14 | ● | M 14 | 2.00 | 14.00 | 11.00 | 49.00 | 6HX | 110.00 | 20.00 | 8 | 13.10 | DIN 2174 | C = 2-3xTP |
| T400-PM103DA-M16 | ● | M 16 | 2.00 | 16.00 | 12.00 | 55.00 | 6HX | 110.00 | 20.00 | 8 | 15.10 | DIN 2174 | C = 2-3xTP |
| T400-PM104DA-M16 | ● | M 16 | 2.00 | 16.00 | 12.00 | 55.00 | 6HX | 110.00 | 20.00 | 8 | 15.10 | DIN 2174 | C = 2-3xTP |
● = Первый выбор ○ = Хороший выбор
