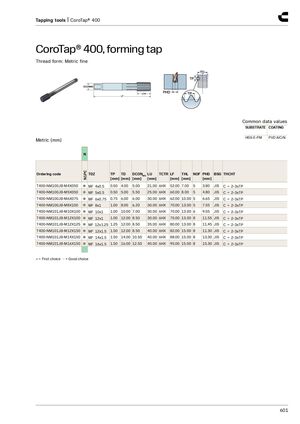

Инструменты для нарезания резьбы | CoroTap® 400
CoroTap® 400, формообразующий метчик
Форма резьбы: метрическая мелкая
Общие значения
| SUBSTRATE | COATING |
|---|---|
| HSS-E-PM | PVD AlCrN |
Метрическая (мм)
| Ordering code | N | DCONMS | TDZ [mm] | TP [mm] | TD [mm] | LU [mm] | TCTR | LF [mm] | THL [mm] | NOF | PHD [mm] | BSG | THCHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T400-NM100JB-M4X050 | ● | MF 4x0.5 | 0.50 | 4.00 | 5.00 | 21.00 | 6HX | 52.00 | 7.00 | 5 | 3.80 | JIS | C = 2-3xTP |
| T400-NM100JB-M5X050 | ● | MF 5x0.5 | 0.50 | 5.00 | 5.50 | 25.00 | 6HX | 60.00 | 8.00 | 5 | 4.80 | JIS | C = 2-3xTP |
| T400-NM100JB-M6X075 | ● | MF 6x0.75 | 0.75 | 6.00 | 6.00 | 30.00 | 6HX | 62.00 | 10.00 | 5 | 6.65 | JIS | C = 2-3xTP |
| T400-NM100JB-M8X100 | ● | MF 8x1 | 1.00 | 8.00 | 6.20 | 30.00 | 6HX | 70.00 | 13.00 | 5 | 7.55 | JIS | C = 2-3xTP |
| T400-NM101JB-M10X100 | ● | MF 10x1 | 1.00 | 10.00 | 7.00 | 30.00 | 6HX | 70.00 | 13.00 | 6 | 9.55 | JIS | C = 2-3xTP |
| T400-NM101JB-M12X100 | ● | MF 12x1 | 1.00 | 12.00 | 8.50 | 30.00 | 6HX | 70.00 | 13.00 | 8 | 11.55 | JIS | C = 2-3xTP |
| T400-NM101JB-M12X125 | ● | MF 12x1.25 | 1.25 | 12.00 | 8.50 | 35.00 | 6HX | 80.00 | 13.00 | 8 | 11.45 | JIS | C = 2-3xTP |
| T400-NM101JB-M12X150 | ● | MF 12x1.5 | 1.50 | 12.00 | 8.50 | 40.00 | 6HX | 82.00 | 15.00 | 8 | 11.30 | JIS | C = 2-3xTP |
| T400-NM101JB-M14X150 | ● | MF 14x1.5 | 1.50 | 14.00 | 10.50 | 40.00 | 6HX | 88.00 | 15.00 | 8 | 13.30 | JIS | C = 2-3xTP |
| T400-NM101JB-M16X150 | ● | MF 16x1.5 | 1.50 | 16.00 | 12.50 | 40.00 | 6HX | 95.00 | 15.00 | 8 | 15.30 | JIS | C = 2-3xTP |
● = Первый выбор ○ = Хороший выбор
