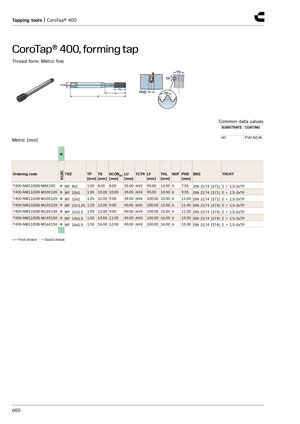

Инструменты для нарезания резьбы | CoroTap® 400
CoroTap® 400, формообразующий метчик
Форма резьбы: метрическая мелкая
Общие значения
| SUBSTRATE | COATING |
|---|---|
| HC | PVD AlCrN |
Метрическая (мм)
| Ordering code | N | DCONMS | TDZ [mm] | TP [mm] | TD [mm] | LU [mm] | TCTR | LF [mm] | THL [mm] | NOF | PHD [mm] | BSG | THCHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T400-NM110DB-M8X100 | ● | MF 8x1 | 1.00 | 8.00 | 8.00 | 35.00 | 6HX | 90.00 | 14.00 | 5 | 7.55 | DIN 2174 (371) | E = 1.5-2xTP |
| T400-NM110DB-M10X100 | ● | MF 10x1 | 1.00 | 10.00 | 10.00 | 35.00 | 6HX | 90.00 | 14.00 | 6 | 9.55 | DIN 2174 (371) | E = 1.5-2xTP |
| T400-NM110DB-M10X125 | ● | MF 12x1 | 1.25 | 12.00 | 9.00 | 39.00 | 6HX | 100.00 | 15.00 | 6 | 11.55 | DIN 2174 (371) | E = 1.5-2xTP |
| T400-NM110DB-M12X125 | ● | MF 12x1.25 | 1.25 | 12.00 | 9.00 | 40.00 | 6HX | 100.00 | 15.00 | 6 | 11.45 | DIN 2174 (374) | E = 1.5-2xTP |
| T400-NM110DB-M12X150 | ● | MF 12x1.5 | 1.50 | 12.00 | 9.00 | 40.00 | 6HX | 100.00 | 15.00 | 6 | 11.30 | DIN 2174 (374) | E = 1.5-2xTP |
| T400-NM110DB-M14X150 | ● | MF 14x1.5 | 1.50 | 14.00 | 11.00 | 40.00 | 6HX | 100.00 | 16.00 | 6 | 13.30 | DIN 2174 (374) | E = 1.5-2xTP |
| T400-NM110DB-M16X150 | ● | MF 16x1.5 | 1.50 | 16.00 | 12.00 | 40.00 | 6HX | 100.00 | 16.00 | 6 | 15.30 | DIN 2174 (374) | E = 1.5-2xTP |
● = Первый выбор ○ = Хороший выбор
