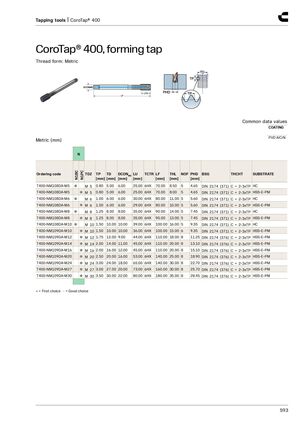

Инструменты для нарезания резьбы | CoroTap® 400
CoroTap® 400, формообразующий метчик
Форма резьбы: метрическая
Общие значения
| COATING |
|---|
| PVD AlCrN |
Метрическая (мм)
| Ordering code | N | DCONMS | TDZ [mm] | TP [mm] | TD [mm] | LU [mm] | TCTR | LF [mm] | THL [mm] | NOF | PHD [mm] | BSG | THCHT | SUBSTRATE |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T400-NM108DA-M5 | ● | M 5 | 0.80 | 5.00 | 6.00 | 25.00 | 6HX | 70.00 | 8.50 | 5 | 4.65 | DIN 2174 (371) | C = 2-3xTP | HC |
| T400-NM108DA-M5 | ● | M 5 | 0.80 | 5.00 | 6.00 | 25.00 | 6HX | 70.00 | 8.00 | 5 | 4.65 | DIN 2174 (371) | C = 2-3xTP | HSS-E-PM |
| T400-NM108DA-M6 | ● | M 6 | 1.00 | 6.00 | 6.00 | 30.00 | 6HX | 80.00 | 11.00 | 5 | 5.60 | DIN 2174 (371) | C = 2-3xTP | HC |
| T400-NM108DA-M6 | ● | M 6 | 1.00 | 6.00 | 6.00 | 29.00 | 6HX | 80.00 | 10.00 | 5 | 5.60 | DIN 2174 (371) | C = 2-3xTP | HSS-E-PM |
| T400-NM108DA-M8 | ● | M 8 | 1.25 | 8.00 | 8.00 | 35.00 | 6HX | 90.00 | 14.00 | 5 | 7.45 | DIN 2174 (371) | C = 2-3xTP | HC |
| T400-NM108DA-M8 | ● | M 8 | 1.25 | 8.00 | 8.00 | 35.00 | 6HX | 90.00 | 13.00 | 5 | 7.45 | DIN 2174 (371) | C = 2-3xTP | HSS-E-PM |
| T400-NM108DA-M10 | ● | M 10 | 1.50 | 10.00 | 10.00 | 39.00 | 6HX | 100.00 | 16.00 | 5 | 9.35 | DIN 2174 (371) | C = 2-3xTP | HC |
| T400-NM109DA-M10 | ● | M 10 | 1.50 | 10.00 | 10.00 | 36.00 | 6HX | 100.00 | 15.00 | 6 | 9.35 | DIN 2174 (371) | C = 2-3xTP | HSS-E-PM |
| T400-NM109DA-M12 | ● | M 12 | 1.75 | 12.00 | 9.00 | 44.00 | 6HX | 110.00 | 18.00 | 8 | 11.25 | DIN 2174 (376) | C = 2-3xTP | HSS-E-PM |
| T400-NM109DA-M14 | ● | M 14 | 2.00 | 14.00 | 11.00 | 45.00 | 6HX | 110.00 | 20.00 | 8 | 13.10 | DIN 2174 (376) | C = 2-3xTP | HSS-E-PM |
| T400-NM109DA-M16 | ● | M 16 | 2.00 | 16.00 | 12.00 | 45.00 | 6HX | 110.00 | 20.00 | 8 | 15.10 | DIN 2174 (376) | C = 2-3xTP | HSS-E-PM |
| T400-NM109DA-M20 | ● | M 20 | 2.50 | 20.00 | 16.00 | 53.00 | 6HX | 140.00 | 25.00 | 8 | 18.90 | DIN 2174 (376) | C = 2-3xTP | HSS-E-PM |
| T400-NM109DA-M24 | ● | M 24 | 3.00 | 24.00 | 18.00 | 65.00 | 6HX | 140.00 | 30.00 | 8 | 22.70 | DIN 2174 (376) | C = 2-3xTP | HSS-E-PM |
| T400-NM109DA-M27 | ● | M 27 | 3.00 | 27.00 | 20.00 | 73.00 | 6HX | 160.00 | 30.00 | 8 | 25.70 | DIN 2174 (376) | C = 2-3xTP | HSS-E-PM |
| T400-NM109DA-M30 | ● | M 30 | 3.50 | 30.00 | 22.00 | 80.00 | 6HX | 180.00 | 35.00 | 8 | 28.45 | DIN 2174 (376) | C = 2-3xTP | HSS-E-PM |
● = Первый выбор ○ = Хороший выбор
