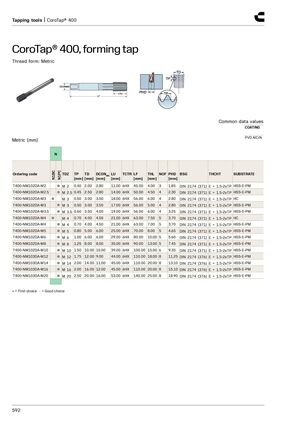

Инструменты для нарезания резьбы | CoroTap® 400
CoroTap® 400, формообразующий метчик
Форма резьбы: метрическая
Общие значения
| COATING |
|---|
| PVD AlCrN |
Метрическая (мм)
| Ordering code | N | DCONMS | TDZ [mm] | TP [mm] | TD [mm] | LU [mm] | TCTR | LF [mm] | THL [mm] | NOF | PHD [mm] | BSG | THCHT | SUBSTRATE |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T400-NM102DA-M2 | ● | M 2 | 0.40 | 2.00 | 2.80 | 11.00 | 6HX | 45.00 | 4.00 | 3 | 1.85 | DIN 2174 (371) | E = 1.5-2xTP | HSS-E-PM |
| T400-NM102DA-M2.5 | ● | M 2.5 | 0.45 | 2.50 | 2.80 | 14.00 | 6HX | 50.00 | 4.50 | 4 | 2.30 | DIN 2174 (371) | E = 1.5-2xTP | HSS-E-PM |
| T400-NM102DA-M3 | ● | M 3 | 0.50 | 3.00 | 3.50 | 18.00 | 6HX | 56.00 | 6.00 | 4 | 2.80 | DIN 2174 (371) | E = 1.5-2xTP | HC |
| T400-NM102DA-M3 | ● | M 3 | 0.50 | 3.00 | 3.50 | 17.00 | 6HX | 56.00 | 5.00 | 4 | 2.80 | DIN 2174 (371) | E = 1.5-2xTP | HSS-E-PM |
| T400-NM102DA-M3.5 | ● | M 3.5 | 0.60 | 3.50 | 4.00 | 19.00 | 6HX | 56.00 | 6.00 | 4 | 3.25 | DIN 2174 (371) | E = 1.5-2xTP | HSS-E-PM |
| T400-NM102DA-M4 | ● | M 4 | 0.70 | 4.00 | 4.50 | 21.00 | 6HX | 63.00 | 7.50 | 5 | 3.70 | DIN 2174 (371) | E = 1.5-2xTP | HC |
| T400-NM102DA-M4 | ● | M 4 | 0.70 | 4.00 | 4.50 | 21.00 | 6HX | 63.00 | 7.00 | 5 | 3.70 | DIN 2174 (371) | E = 1.5-2xTP | HSS-E-PM |
| T400-NM102DA-M5 | ● | M 5 | 0.80 | 5.00 | 6.00 | 25.00 | 6HX | 70.00 | 8.00 | 5 | 4.65 | DIN 2174 (371) | E = 1.5-2xTP | HSS-E-PM |
| T400-NM102DA-M6 | ● | M 6 | 1.00 | 6.00 | 6.00 | 29.00 | 6HX | 80.00 | 10.00 | 5 | 5.60 | DIN 2174 (371) | E = 1.5-2xTP | HSS-E-PM |
| T400-NM102DA-M8 | ● | M 8 | 1.25 | 8.00 | 8.00 | 35.00 | 6HX | 90.00 | 13.00 | 5 | 7.45 | DIN 2174 (371) | E = 1.5-2xTP | HSS-E-PM |
| T400-NM102DA-M10 | ● | M 10 | 1.50 | 10.00 | 10.00 | 39.00 | 6HX | 100.00 | 15.00 | 6 | 9.35 | DIN 2174 (371) | E = 1.5-2xTP | HSS-E-PM |
| T400-NM103DA-M12 | ● | M 12 | 1.75 | 12.00 | 9.00 | 44.00 | 6HX | 110.00 | 18.00 | 8 | 11.25 | DIN 2174 (376) | E = 1.5-2xTP | HSS-E-PM |
| T400-NM103DA-M14 | ● | M 14 | 2.00 | 14.00 | 11.00 | 45.00 | 6HX | 110.00 | 20.00 | 8 | 13.10 | DIN 2174 (376) | E = 1.5-2xTP | HSS-E-PM |
| T400-NM103DA-M16 | ● | M 16 | 2.00 | 16.00 | 12.00 | 45.00 | 6HX | 110.00 | 20.00 | 8 | 15.10 | DIN 2174 (376) | E = 1.5-2xTP | HSS-E-PM |
| T400-NM103DA-M20 | ● | M 20 | 2.50 | 20.00 | 16.00 | 53.00 | 6HX | 140.00 | 25.00 | 8 | 18.90 | DIN 2174 (376) | E = 1.5-2xTP | HSS-E-PM |
● = Первый выбор ○ = Хороший выбор
