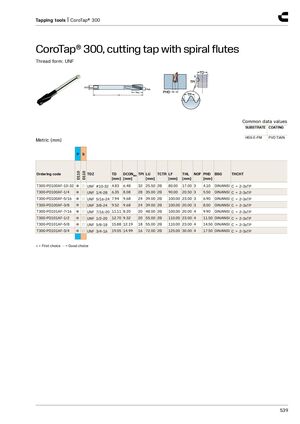

CoroTap® 300, метчик машинный со спиральными канавками
Форма резьбы: UNF
| Параметр | Значение |
|---|---|
| Материал основы | HSS-E-PM |
| Покрытие | PVD TiAlN |
| Код заказа | Выбор | Резьба (TDZ) | TD [мм] | DCONMS [мм] | TPI | LU [мм] | TCTR | LF [мм] | THL [мм] | NOF | PHD [мм] | BSG | THCHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T300-PD100AF-10-32 | ● ○ | UNF #10-32 | 4.83 | 6.48 | 32 | 25.50 | 2B | 80.00 | 17.00 | 3 | 4.10 | DIN/ANSI | C = 2-3xTP |
| T300-PD100AF-1/4 | ● ○ | UNF 1/4-28 | 6.35 | 8.08 | 28 | 35.00 | 2B | 90.00 | 20.50 | 3 | 5.50 | DIN/ANSI | C = 2-3xTP |
| T300-PD100AF-5/16 | ● ○ | UNF 5/16-24 | 7.94 | 9.68 | 24 | 39.00 | 2B | 100.00 | 23.00 | 3 | 6.90 | DIN/ANSI | C = 2-3xTP |
| T300-PD100AF-3/8 | ● ○ | UNF 3/8-24 | 9.52 | 9.68 | 24 | 39.00 | 2B | 100.00 | 20.00 | 3 | 8.50 | DIN/ANSI | C = 2-3xTP |
| T300-PD101AF-7/16 | ● ○ | UNF 7/16-20 | 11.11 | 8.20 | 20 | 48.00 | 2B | 100.00 | 20.00 | 4 | 9.90 | DIN/ANSI | C = 2-3xTP |
| T300-PD101AF-1/2 | ● ○ | UNF 1/2-20 | 12.70 | 9.32 | 20 | 55.00 | 2B | 110.00 | 23.00 | 4 | 11.50 | DIN/ANSI | C = 2-3xTP |
| T300-PD101AF-5/8 | ● ○ | UNF 5/8-18 | 15.88 | 12.19 | 18 | 55.00 | 2B | 110.00 | 23.00 | 4 | 14.50 | DIN/ANSI | C = 2-3xTP |
| T300-PD101AF-3/4 | ● ○ | UNF 3/4-16 | 19.05 | 14.99 | 16 | 72.00 | 2B | 125.00 | 30.00 | 4 | 17.50 | DIN/ANSI | C = 2-3xTP |
● = Первый выбор ○ = Хороший выбор
